Marquis Vector21 - Marquis V150 P Model; Component Identification; Physical Specifications

N
N
N
N
N
2s
2s
4r
4r
5s
5s
4s
2s
4s
2s 2s
4r
4s
4s
2s
2s
5c
4c
4c
2c
2c
4s
4s
4s
4s
2s
2s
5s
4s
4s
4s
4s
5r
4s
4s
6.1
6.1
6.2
6.2
6.2
7
7
8
8
8
8
9
10
1010
10
10
11
13
12
12
12
12
12
14
14
14
14
14
14s
14s
14s
14s
14s
14s
14s
14s
14s
14s
15
16
16
17
17
18
18
19
19
19
20
20
20
20
19
21
22
23
23
1z
1f
2c

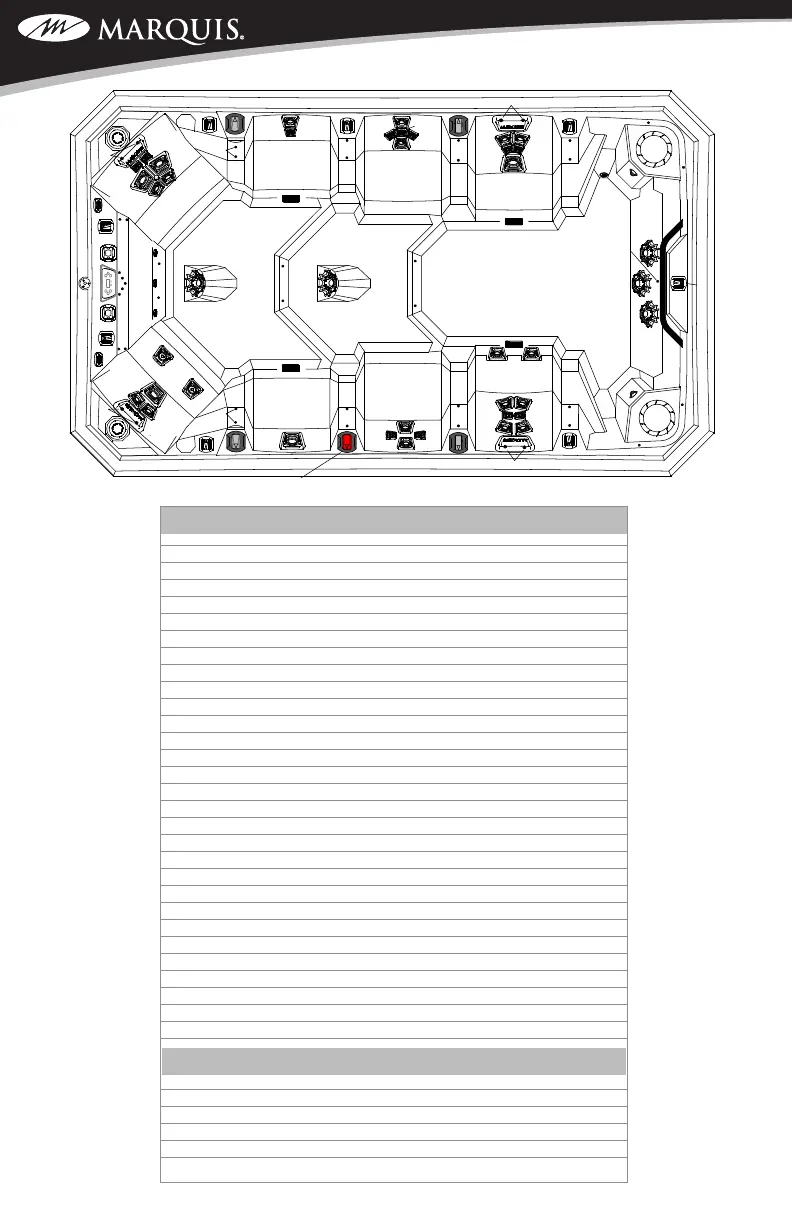

2022 V150P Components
1-6-22
12
24
24
1f
14
14s
14s
14s
14s
14
14s
RED HANDLE
Reference # Fitting Description Qty Holesaw size
1z Ozone Wall Fitting 1 1 1/4"
1f Frog Wall Fitting (OPTIONAL) 2 1 1/4"
2 200 series Vector Jet 12 1 1/2"
s straight 9
c cone 3
4 400 series Vector Jet 19 2 5/8"
s straight 14
c cone 2
r rotator 3
5 500 series Vector Jet 5 3 3/4"
s straight 3
c cone 1
r rotator 1
6 White Water 4 Jet 5 2 5/8"
6.1 1in orifice 2
6.2 3/4in orifice 3
7 Vector Pop up Waterfeature 2 1 5/8"
8 256 GPM Suction 4 3 1/2"
9 CMP Mini Drain 1 1 1/4"
10 Vector Control Valve 5 3 1/8"
11 Vector Neck Jet Valve 1 2 1/16"
12 Vector Air Control 6 1 5/8"
13 Vector Waterfall Valve 1 2 1/16"
14 Vector LED (standard) 11 3/8"
s Vector LED (Starlight option) 25 3/8"
15 TP-600 w/6 button Vector Overlay 1 2 1/2"
16 Frog Housing (optional) 2 3"
17 Vortex Filter 2 7 3/8"
18 Vector Surface Mount Speakers (optional) 2 2 1/16"
19 Pillow buttons 8 1/8" bit
20 Vector Pillow 4
21 Swim Tether Plate 1 1 1/16"
22 Grab Rail 1 3/8"
23 Exercise Attachment Hook 2 1 1/2"
24 Rowing Attachment 2 11/64"
# Component Identification Qty.
1z Ozone fittings 1
1f Spa Frog wall fitting (optional) 2
2s Directional Jetpod 9
2c Conal Jetpod 3
4s Directional Jetpod 14
4c Conal Jetpod 2
4r Orbital Jetpod 3
5s Directional Jetpod 3
5c Conal Jetpod 1
5r Orbital Jetpod 1
6 Whitewater-4 jet 5
7 Pop up water feature 2
8 Suction fitting 4
9 Floor drain 1
10 V
3
control valve 5
11 Neck Jet valve 1
12 Air control valve 6
13 Waterfall valve 1
14 LED lights 11
14s Starlights™ LED (option) 25
15 Control panel 1
16 In-line canister (option) 2
17 Vortex filters 2
18 Surface mount speakers (option) 2
19 Headrest buttons 8
20 Headrests 4
21 Swim tether plate 1
22 Grab rail 1
23 Exercise attachment hook 2
24 Rowing attachment 2
Physical Specifications Size
Dimensions 150” x 90”
Height 51”
Seating capacity/positions 8/8
Weight dry lbs. / full lbs. 1,800/9,723
Water capacity/gallons 950
Total therapy Jetpods 36
THE V150P
16
