Marquis Vector21 - Marquis V150 W Model; Component Identification; Physical Specifications

# Component Identification Qty.
1z Ozone fittings 1
1f Spa Frog wall fitting (optional) 2
2s Directional Jetpod 5
4s Directional Jetpod 8
4c Conal Jetpod 2
4r Orbital Jetpod 3
5s Directional Jetpod 2
5r Orbital Jetpod 1
6 Whitewater-4 jet 4
7 Pop up water feature 2
8 Suction fitting 4
9 Floor drain 1
10 V
3
control valve 2
11 Neck Jet valve 1
12 Air control valve 4
13 Waterfall valve 1
14 LED lights 11
14s Starlights™ LED (option) 20
15 Control panel 1
16 In-line canister (option) 2
17 Vortex filters 2
18 Surface mount speakers (option) 2
19 Headrest buttons 4
20 Headrests 2
21 Swim tether plate 1
22 Grab rail 1
23 Exercise attachment hook 4
24 Rowing attachment 2
Physical Specifications Size
Dimensions 150” x 90”
Height 51”
Massage Seats 4
Weight dry lbs. / full lbs. 1,700/11,720
Water capacity/gallons 1,200
Total therapy Jetpods 25

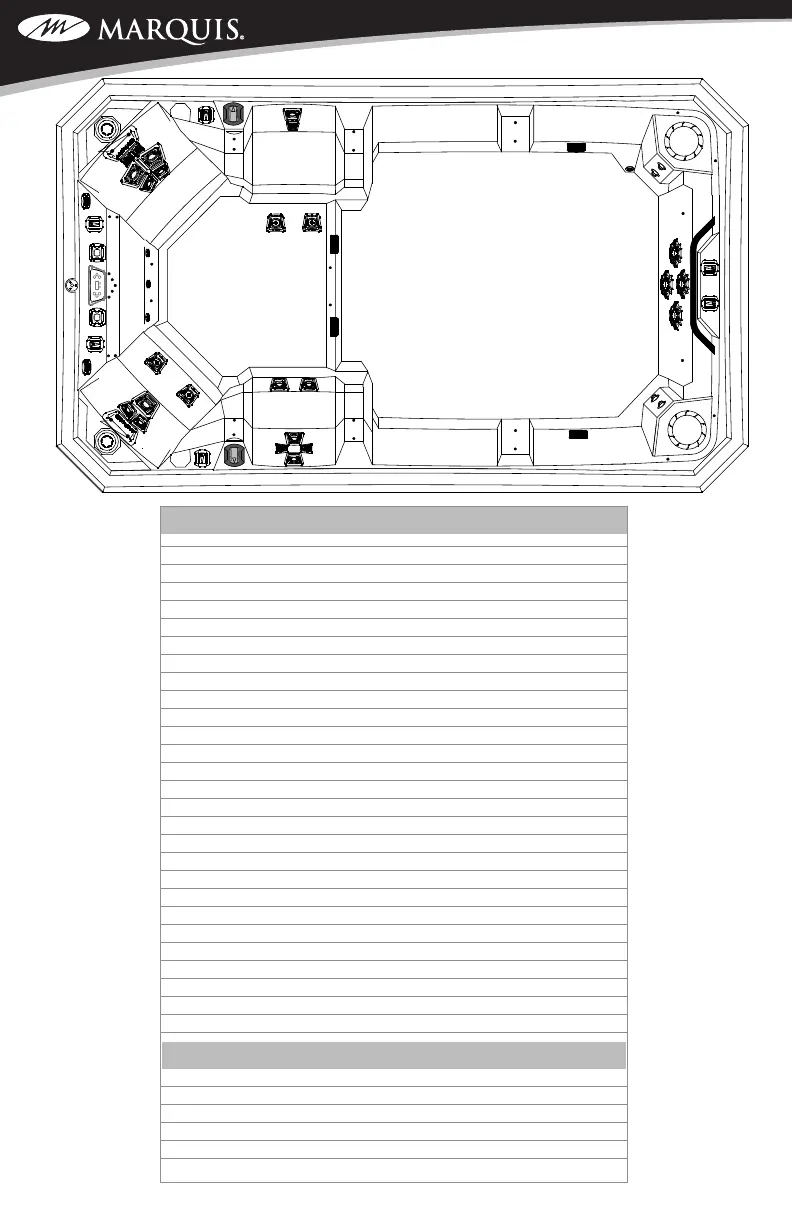

THE V150W
N
N
19
16
2s
2s
5s
4r
5s
4r
20
12 10
24
14s
14s
8
14s
14
14
17
23
9
6
6
6
6
12
12
14
14
17
23
14s
8
14s
1z
8
14s
24
10
12
16
19
20
4s
4s
5r
4s
4s
18
13
14s
7
21
15
14
7
11
18
14s
14s
14s
1f
1f
14
14
2022 V150W Components
1-6-22
8
14s
14s
2s
2s
2s
4c
4c
4s
4s
4s
4r
4s
Reference # Fitting Description Qty Holesaw size
1z Ozone Wall Fitting 1 1 1/4"
1f Frog Wall Fitting (OPTIONAL) 2 1 1/4"
2 200 series Vector Jet 5 1 1/2"
s straight 5
c cone 0
4 400 series Vector Jet 13 2 5/8"
s straight 8
c cone 2
r rotator 3
5 500 series Vector Jet 3 3 3/4"
s straight 2
c cone 0
r rotator 1
6 White Water 4 Jet (3/4in orifice) 4 2 5/8"
7 Vector Pop up Waterfeature 2 1 5/8"
8 256 GPM Suction 4 3 1/2"
9 CMP Mini Drain 1 1 1/4"
10 Vector Control Valve 2 3 1/8"
11 Vector Neck Jet Valve 1 2 1/16"
12 Vector Air Control 4 1 5/8"
13 Vector Waterfall Valve 1 2 1/16"
14 Vector LED (standard) 11 3/8"
s Vector LED (Starlight option) 20 3/8"
15 TP-600 w/6 button Vector Overlay 1 2 1/2"
16 Frog Housing (optional) 2 3"
17 Vortex Filter 2 7 3/8"
18 Vector Surface Mount Speakers (optional) 2 2 1/16"
19 Pillow buttons 4 1/8" bit
20 Vector Pillow 2
21 Swim Tether Plate 1 1 1/16"
22 Grab Rail 1 3/8"
23 Exercise Attachment Hook 4 1 1/2"
24 Rowing Attachment 2 11/64"
