Marquis Vector21 - Vector21 Equipment Diagrams; Model V150 P; Model V150 W

# Component Qty.
1 Control box and heater 1
3 Ozonator (optional) 1
4 2-speed pump 1
6 2-speed pump 1
8 Check valve 1
9 Slice valves 4
10 Hose bib drain 2
11 Hi-flow drain 1
12 Cosmic audio unit (optional) 1
13 Audio expansion port (optional) 1
14 Power supply (optional) 1
15 Starlights™ LED light system (optional) 1
16 ControlMySpa module (optional) 1

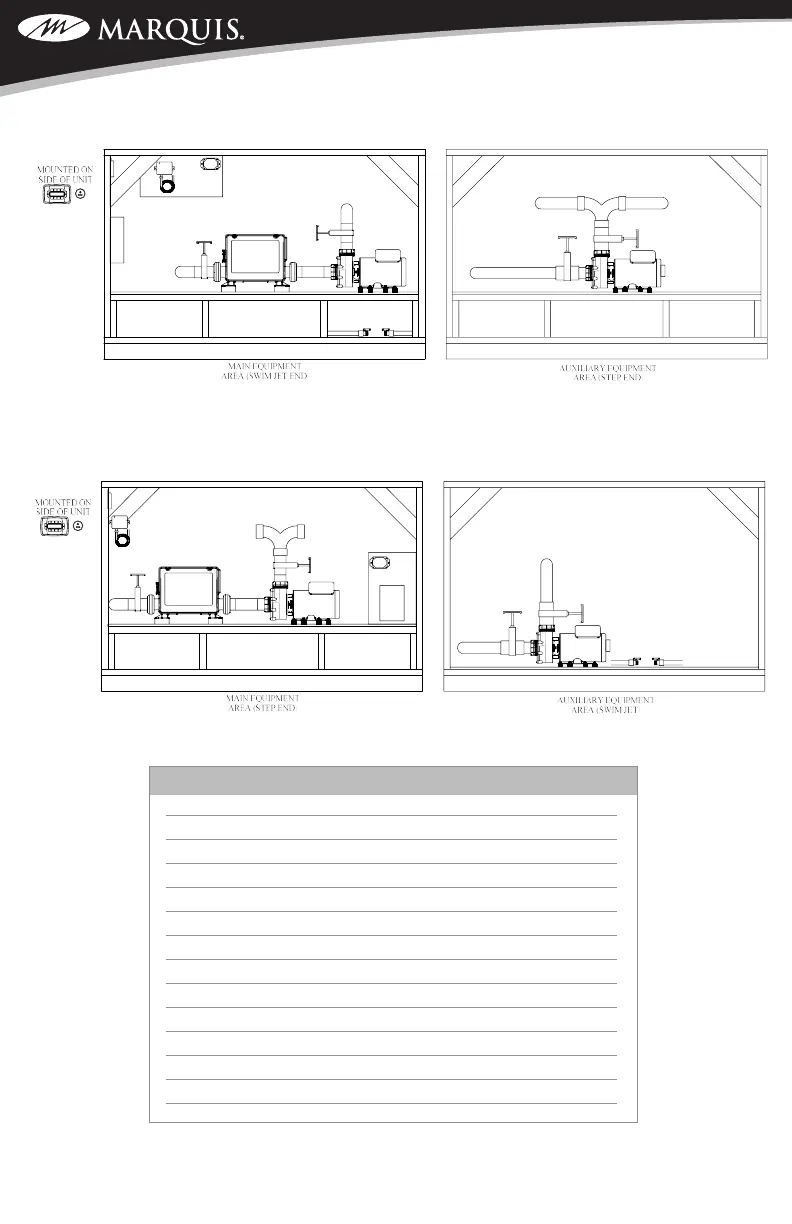

VECTOR21 EQUIPMENT DIAGRAMS
MODEL V150P
MODEL V150W
3
11
12
1 or 2
4 or 5
6 or 7
8
8
10
10
13
14
15
2023 V150P EQUIPMENT (US, CA, INT)
6-21-23
9
9
CMP
DEL OZONE SPA
Reference # Fitting Description Qty
1 MQBP20 (60Hz) Equipment System (US CA) 1
2 MQBP21 (50Hz) Equipment System (INT) 1
3 Del UO3 Ozonator (OPTIONAL) 1
4 2HP 230V 2speed 60Hz 56 Frame Pump (US CA) 1
5 2HP 220V 2speed 50Hz 48 Frame Pump (INT) 1
6 4.0HP 230V 2speed 60Hz 56 Frame Pump (US CA) 1
7 2.5HP 220V 2speed 50Hz 90 Frame Pump (INT) 1
8 2" Slice Valve 2
9 2 1/2" Slice Valve 2
10 Hose Bib Drain 2
11 Milennia Audio System (OPTIONAL) 1
12 Audio Expansion Port (OPTIONAL) 1
13 Power Supply (OPTIONAL) 1
14 Starlight LED Light Controller 1
15 Control My Spa Module (50hz or 60hz) (OPTIONAL) 1
3
11
12
1 or 2
4 or 5
6 or 7
8
8
10
10
13
14
2023 V150W EQUIPMENT (US, CA, INT)
6-21-23
9
9
CMP
DEL OZONE SPA
15
Reference # Fitting Description Qty
1 MQBP20 (60Hz) Equipment System (US CA) 1
2 MQBP21 (50Hz) Equipment System (INT) 1
3 Del UO3 Ozonator (OPTIONAL) 1
4 2HP 230V 2speed 60Hz 56 Frame Pump (US CA) 1
5 2HP 220V 2speed 50Hz 48 Frame Pump (INT) 1
6 4.0HP 230V 2speed 60Hz 56 Frame Pump (US CA) 1
7 2.5HP 220V 2speed 50Hz 90 Frame Pump (INT) 1
8 2" Slice Valve 2
9 2 1/2" Slice Valve 2
10 Hose Bib Drain 2
11 Milennia Audio System (OPTIONAL) 1
12 Audio Expansion Port (OPTIONAL) 1
13 Power Supply (OPTIONAL) 1
14 Starlight LED Light Controller 1
15 Control My Spa Module (50hz or 60hz) (OPTIONAL) 1
47
