Document No: ACC-IOM
Date: 04/13/2013

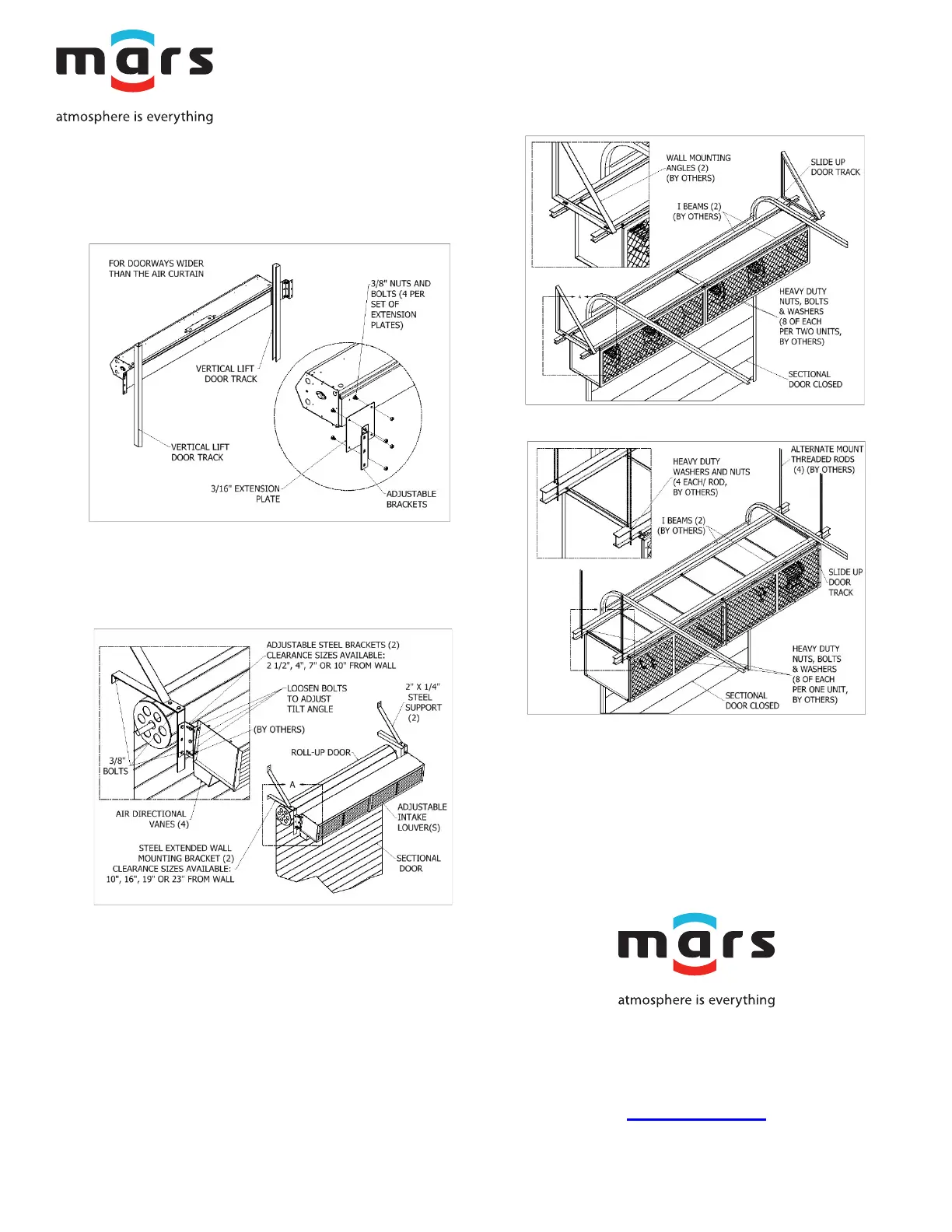

Bracket Installation
1. Side Extension Plates: For doorways wider than the air
curtain, use combination of Side Extension Plates and
Adjustable Mounting Brackets. (FIG. 5)
FIG. 5 (LPV SHOWN)
2. Adjustable Mounting Brackets: For installation of air
curtain over drum-style roll-up door, use Extended
Wall Mounting Brackets. (FIG. 6)
FIG. 6 (STD SHOWN)
3. Extended Wall Mounting: For Tandem Mounting of air
curtain over sectional style door, use either wall
mounting angle brackets or threaded rods.
4. Top Mounting Brackets: For overhead installation of
units, use in conjunction with the threaded holes
provided on top of unit.
Note: Angle brackets, threaded rods and I Beams are
provided by others. (FIGS. 7 & 8) All optional brackets
are not available for WMI/WMH and BD Series.
FIG. 7 (WMI/WMH Shown)
FIG. 8 (BD Shown)
14716 S. Broadway St., Gardena, CA 90248
(310) 532ā1555 ā (800) 421-1266
Fax: (310) 324-3030
www.marsair.com
