Martin DESIGNER User Manual

34 53D0419
53D0419 35
Continued on next page
5. Position left end of bottom center back log (#3) beside rear end of left log (#1). Line up pin on grate with pin hole in bottom
of center back log (#3) Snug right end of bottom center back log (#3) to the middle of right log (#2). See Figure 45.
6. Line up pin holes on bottom front log (#4) with pins on grate. See Figure 46.
LOG PLACEMENT

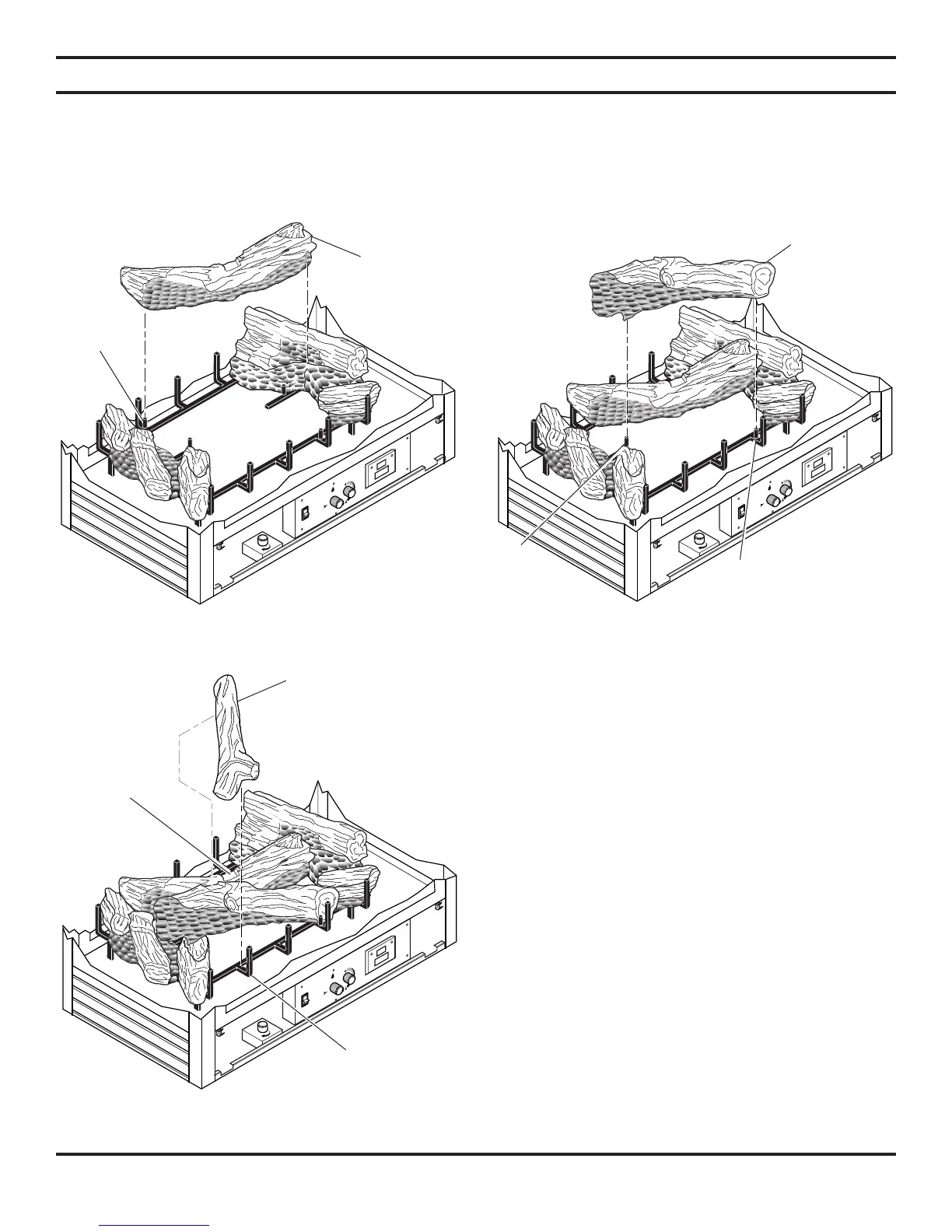

Figure 45 - Installing Bottom Center Log (#3)
Figure 46 - Installing Bottom Front Log (#4)
Figure 47 - Installing Left Top Log (#5)
7. Place back end of left top log (#5) on cutout of bottom front
log (#4). Position front of left top log (#5) on grate prong two.
See Figure 47.
Bottom Center
Back Log (#3)
Bottom Front
Log (#4)
Pin
Left Top Log (#5)
Grate
Prong Two
Cutout of
Bottom Front
Log
Pin
Pin
