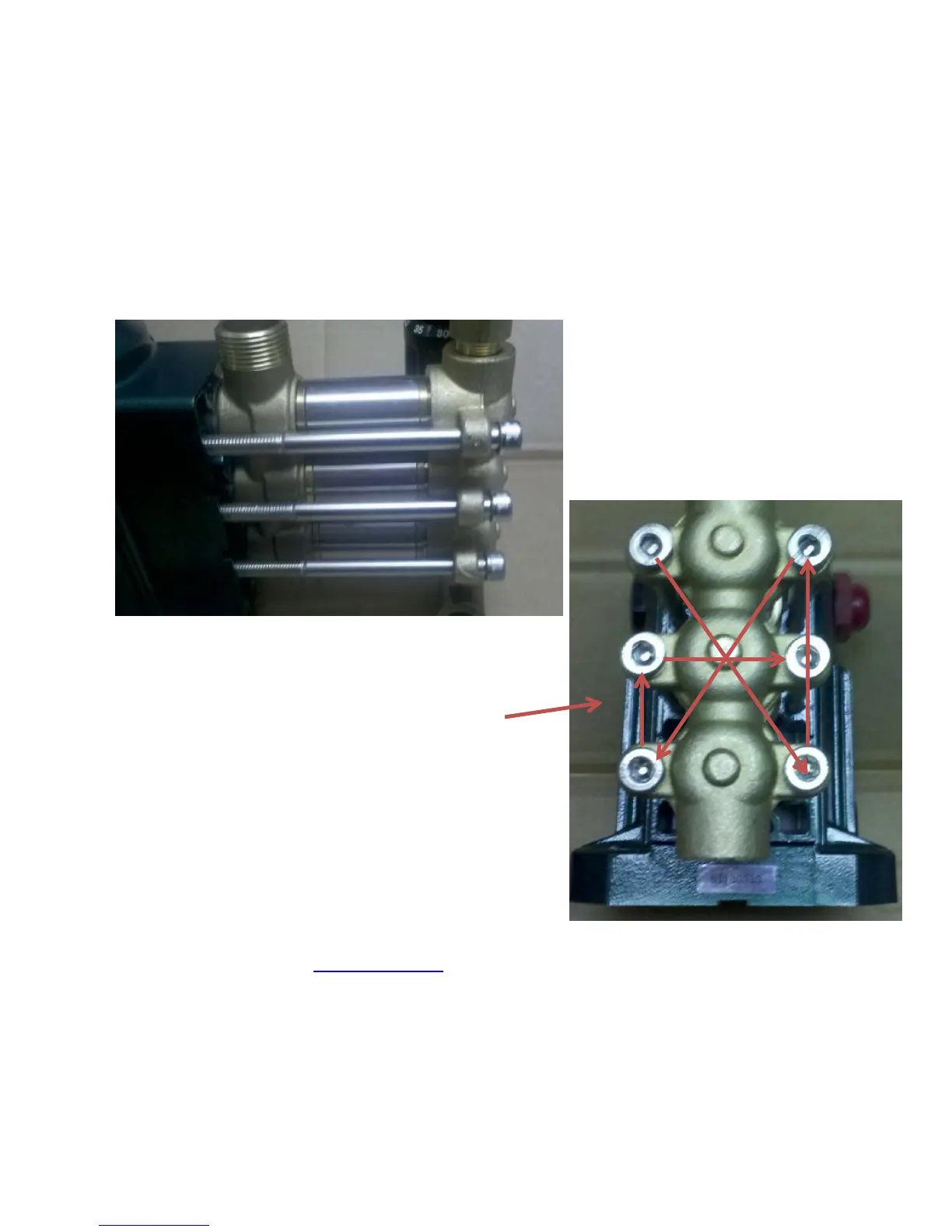

Slide Manifold B on to the cylinders.
Then Install the six 6mm Allen head
screws with a small amount of
Loctite on each bolt.
1
5
4
3
6
2
Run all six bolts down to eliminate the slack
between the bolts and the Manifold. Using
the pattern in the picture you are going to
slowly tighten the bolts to pull the manifold
down evenly. This may take two or three
times before the bolts are completely tight.
