MAS 30 User Manual

9
Directions for use
Full body harness, tested according to EN 361:2002,
with integrated hold function according to EN 358:2000 (MAS 60)
These full body harnesses are tested and authorized for a total weight
(rated load) up to 136 KG.
We explicitly refer to the fact that, with weights (rated loads) in the range 100 - 136 KG,
all individual parts in the fall arrest system employed (in particular the fall damping)
must likewise be tested and authorized for total weight of 136 KG.
Copyright © MAS GmbH · Excerpts and copies only with approval from MAS GmbH
Unterm Gallenloeh 2 - D-57489 Drolshagen -www.masonline.de 11.09.2013
Shoulder straps
Rear reception eyelet
Adjustment shoulder
straps
Breast belt (reception
eyelet)
Plastic slide
Side hold eyelets
Abdominal belt
Ride-up protection eyelet
(Var. S)
Adjustment leg belts
Leg belts
Leg connection belt
MAS 30 MAS 30 Quick MAS 30 E
¾ Var. B 3
¾ Var. BFD 3
(up to 100 KG total weight)
MAS 60 MAS 60 Quick MAS 60 E
¾ Var. B 3
¾ Var. BFD 3 (up to 100 KG
¾ Var. S total weight)
1. Application
Full body harnesses are employed by the user
for protection in an area endangered by falling
from a height, and may be employed only as
specified.
Personal Protective Equipment (PPE) against
fall from a height may be employed as a
protection against fall from a height for short-
term work only.

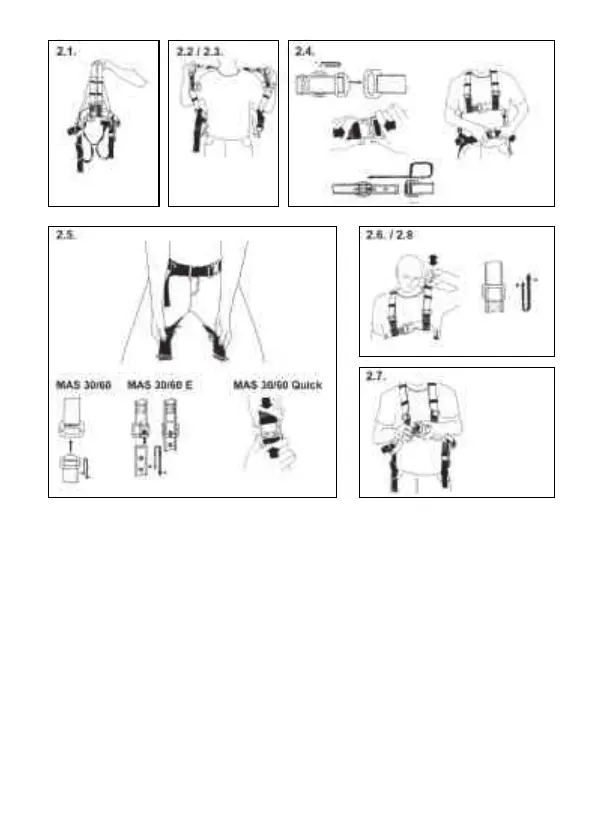

2. Putting on the full body harness
1. Lift the full body harness at the rear D-
ring.
2. Open all close-offs.
3. Place the full body harness on like a
jacket from behind over the shoulder,
and ensure the webbing is not twisted.
4. If the full body harness is equipped with
an abdominal belt, adjust the belt
according to the abdominal
circumference.
5. To close the leg belts, grip through the
step and pull the webbing toward the
front. Then close the belt buckles and
adjust the webbing accordingly. The leg
connection belt must fit on the thigh
under the buttocks.
6. Shorten or extend the shoulder straps by
threading back the webbing and thus
adjust to the correct length.
7. Close the breast belt and adjust
according to the required length.
8. Pull the plastic slides under the
respective close-offs and the second to
the end of the webbing. Slipping of the
webbing is prevented by that.
After adjusting the full body harness, check that
no webbing is twisted, and that all buckles are
correctly closed and correctly seated.
2.5.
MAS 30/60 MAS 30/60 E MAS 30/60 Quick
2.6. / 2.8
2.7.
2.4. 2.1.
2.2 / 2.3.
Directions for use
Full body harness, tested according to EN 361:2002,
with integrated hold function according to EN 358:2000 (MAS 60)
These full body harnesses are tested and authorized for a total weight
(rated load) up to 136 KG.
We explicitly refer to the fact that, with weights (rated loads) in the range 100 - 136 KG,
all individual parts in the fall arrest system employed (in particular the fall damping)
must likewise be tested and authorized for total weight of 136 KG.
Copyright © MAS GmbH · Excerpts and copies only with approval from MAS GmbH
Unterm Gallenloeh 2 - D-57489 Drolshagen -www.masonline.de 11.09.2013
Shoulder straps
Rear reception eyelet
Adjustment shoulder
straps
Breast belt (reception
eyelet)
Plastic slide
Side hold eyelets
Abdominal belt
Ride-up protection eyelet
(Var. S)
Adjustment leg belts
Leg belts
Leg connection belt
MAS 30 MAS 30 Quick MAS 30 E
¾ Var. B 3
¾ Var. BFD 3
(up to 100 KG total weight)
MAS 60 MAS 60 Quick MAS 60 E
¾ Var. B 3
¾ Var. BFD 3 (up to 100 KG
¾ Var. S total weight)
Directions for use
Full body harness, tested according to EN 361:2002,
with integrated hold function according to EN 358:2000 (MAS 60)
These full body harnesses are tested and authorized for a total weight
(rated load) up to 136 KG.
We explicitly refer to the fact that, with weights (rated loads) in the range 100 - 136 KG,
all individual parts in the fall arrest system employed (in particular the fall damping)
must likewise be tested and authorized for total weight of 136 KG.
Copyright © MAS GmbH · Excerpts and copies only with approval from MAS GmbH
Unterm Gallenloeh 2 - D-57489 Drolshagen -www.masonline.de 11.09.2013
Shoulder straps
Rear reception eyelet
Adjustment shoulder
straps
Breast belt (reception
eyelet)
Plastic slide
Side hold eyelets
Abdominal belt
Ride-up protection eyelet
(Var. S)
Adjustment leg belts
Leg belts
Leg connection belt
MAS 30 MAS 30 Quick MAS 30 E
¾ Var. B 3
¾ Var. BFD 3
(up to 100 KG total weight)
MAS 60 MAS 60 Quick MAS 60 E
¾ Var. B 3
¾ Var. BFD 3 (up to 100 KG
¾ Var. S total weight)
20962_MAS 30 + 60_neu.indd 9 10.12.14 09:59
