4
Daily Service
Check for leakage of fuel or oil.
Remove soil and clean the bottom of compaction plate.
Check engine oil.
Check for loose screws including tightness. See Table 3 below
(tightening torque), for retightening.
TABLE 3.
TIGHTENING TORQUE (in. kg/cm) Diameter
Material 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm
4T 70 150 300 500 750 1100 1400 2000
6-8T 100 250 500 800 1300 2000 2700 3800
11T 150 400 800 1200 2000 2900 4200 5600
* 100 (6mm) 300-350 (8mm) 650-700 (10mm)
*(In case counter-part is of alumium)
(Threads in use with this machine are all right handed)
Material and quality of material is marked on each bolt, and
screw.
Changing Vibrator Oil
When changing the vibrator oil, remove the drain plug located
at the bottom-right of the vibrator, and simply tip the compactor
to drain the oil. Note that the oil will drain more easily while it is
hot. Replace the oil with 500ML of 10W-30 motor oil.

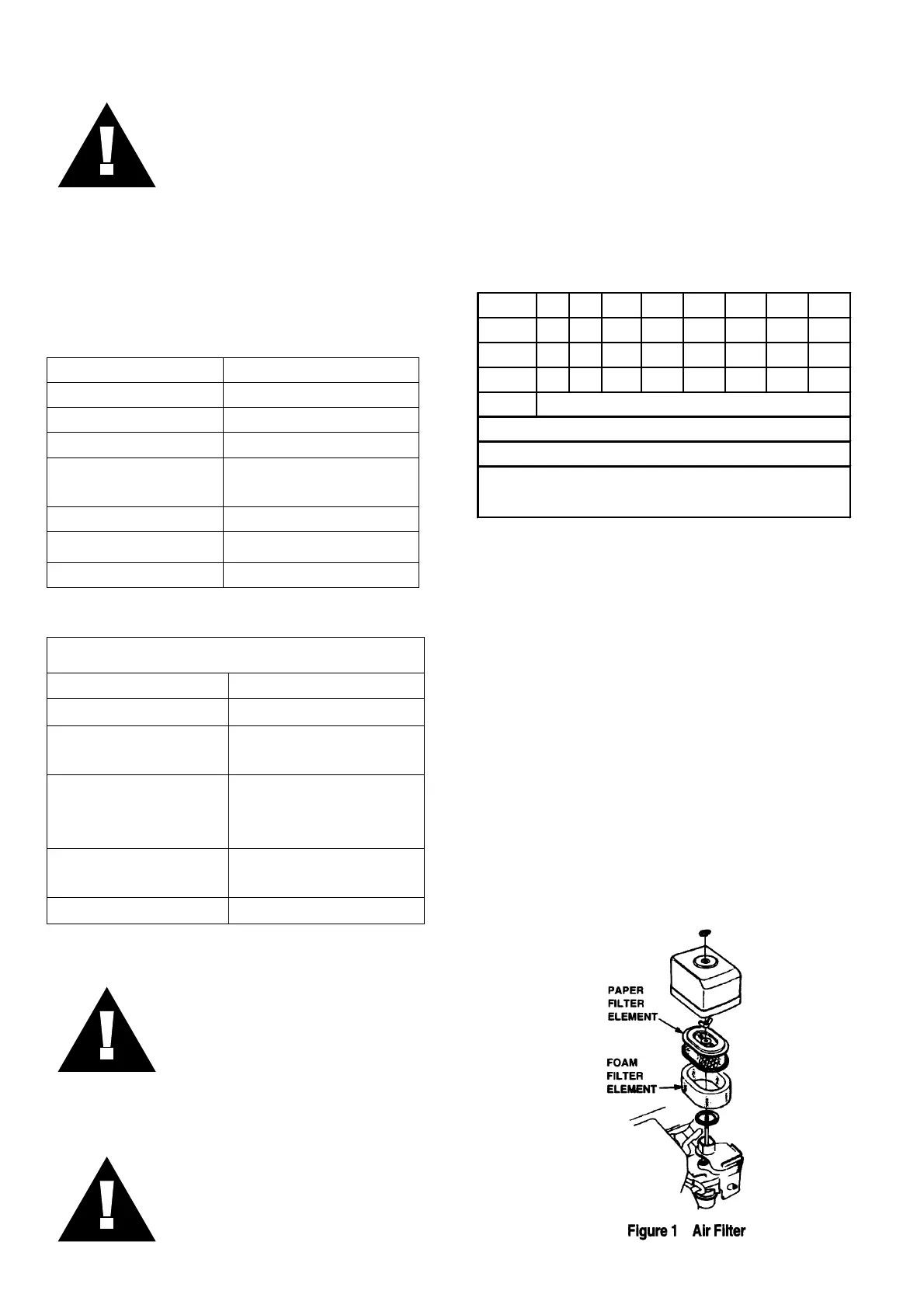

Air Filter
1. The air filter element should be cleaned because a clogged
air cleaner can cause poor engine starting, lack of power
and shorten engine life substantially.
2. To clean or replace air filter loosen the wing nut on the air
filter housing (Figure 1), remove the cover and take out air
filter cartridge. If only cleaning of the air filter is desired
blow through the air filter cartridge from the inside, moving
a jet of dry compressed air up and down until all dust is
removed.
CAUTION:
Inspection and other services should
always be carried out on hard and level
ground with the engine shutdown.
Inspection and Maintenance Service Tables.
To make sure your plate compactor is always in good working
condition before using, carry out the maintenance inspection
in accordance with Tables 1 through 3.
TABLE 1. MACHINE INSPECTION
Item Hours of Operation
(Starting check) Every 8 hours (every day)
Loosened of lost screws Every 8 hours (every day)
Damage of any part Every 8 hours (every day)
Function of controlling
system part
Every 8 hours (every day)
Vibrator oil check Every 100 hours
Vibrator oil replacement Every 200 hours
V-belt (clutch) check Every 200 hours
TABLE 2. ENGINE CHECK
(For details, see separate engine Manual)
Item Hours of Operation
Leakage of oil fuel Every 8 hours (every day)
Tightness of fastening
Threads
Every 8 hours (every day)
Engine oil check and
replenishment
Every 8 hours (every day)
(Replenish to specified
Max. level)
Engine oil replenishment
At first 20 hours, then
every 100 hours
Air cleaner cleaning Every 50 hours
CAUTION:
These inspection intervals are for operation
under normal conditions. Adjust your
inspection intervals based on the number
hours plate compactor is in use, and
particular working conditions.
CAUTION:
Fuel piping and connections should be
replaced every 2 years.
