3
¹ ITEMS NOTED ARE SOLD SEPARATELY.
² ITEMS INDICATED AS “NOT SUPPLIED” CAN BE OBTAINED FROM YOUR LOCAL HARDWARE STORE.

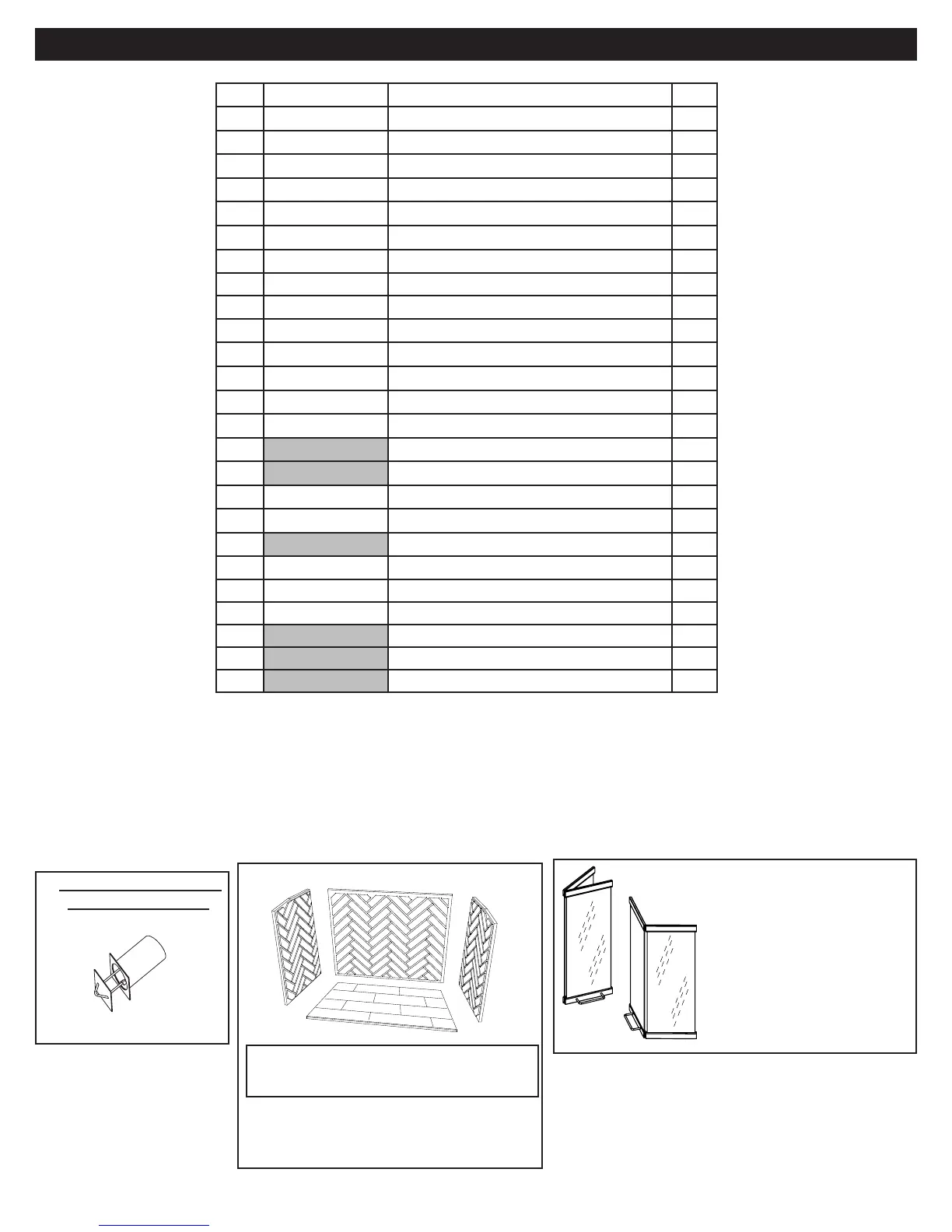

MFP-33 Fireplace Parts List
Optional Outside Ø4”
Combustion Air Kit
Model No.: MFP4-AK
(Ø4” Ducting not included)
Refractory Firebrick Liners
(Herringbone Pattern shown, also available
in Running Bond - see Pg.27)
MFP33SHBL- Herringbone
MFP33FRBL- Running Bond
ITEM P/N DESCRIPTION QTY
1 MFP33-1 HEARTH BTM 2
2 MFP33-2
REAR WALL
2
3 MFP49-3 SIDE WALL 5
4 MFP49-3A SIDE WALL W/Ø4 1
5 MFP33-4 DOWNDRAFT DIVERTER 1
6 MFP33-5 LOWER DOME 1
7 MFP33-6 LINTEL 1
8 MFP33-6A LINTEL, FRONT 1
9 MFP33-6B T-BAR, STEEL 1
10 MFP49-7 DOME, SIDE - LOWER 2
11 MFP49-8 DOME, SIDE, UPPER 2
12 MFP33-9 DOME TOP 1
13 MFP33-10 DOME, FRONT-REAR 2
14 MFP521 RATING PLATE 1
15 NOT SUPPLIED ² 12 INCH DAMPER/ANCHOR PLATE 1
16 NOT SUPPLIED ² ANCHOR PLATE INSULATION 1
17 MFP4-AK ¹ OUTSIDE AIR KIT, 4" DIA 1
18 MFPB33 ¹ METAL BASE 6 INCH HIGH 1
19 NOT SUPPLIED ² CEMENT BOARD 1
20 MFPSB ¹ ASSY, FLOOR JOIST BRACE 4
21 REBAR #3 REBAR (Ø3/8") x 36" 6
22 MFP364 ALLTHREAD 1/2-13 x 12" 4
23 NOT SUPPLIED ² Wide FW 0.5625 16
24 NOT SUPPLIED ² 1/2-13 UNC HEX NUT 16
25 NOT SUPPLIED ² 1” FIBERGLASS INSULATION BLANKET 1
Only Mason-Lite MFP33-GD
Glass Doors have been tested
and approved for use with this
replace.
For installation Instructions, see
separate instructions included
with doors.
