Mason-Lite Masonry Firebox - Page 7

5
¹ ITEMS NOTED ARE SOLD SEPARATELY.
² MFP39 requires 6, MFP44/49 requires 8
³ ITEMS INDICATED AS “NOT SUPPLIED” CAN BE OBTAINED FROM
YOUR LOCAL HARDWARE STORE.
Optional Outside Ø4”
Combustion Air Kit
Model No.: MFP4-AK
(Ø4” Ducting not included)
Refractory Firebrick Liners
(Herringbone Pattern shown, also available
in Running Bond - see Pg.27)
MFP(33,39,44,49)SHBL- Herringbone
MFP(33,39,44,49)FRBL- Running Bond

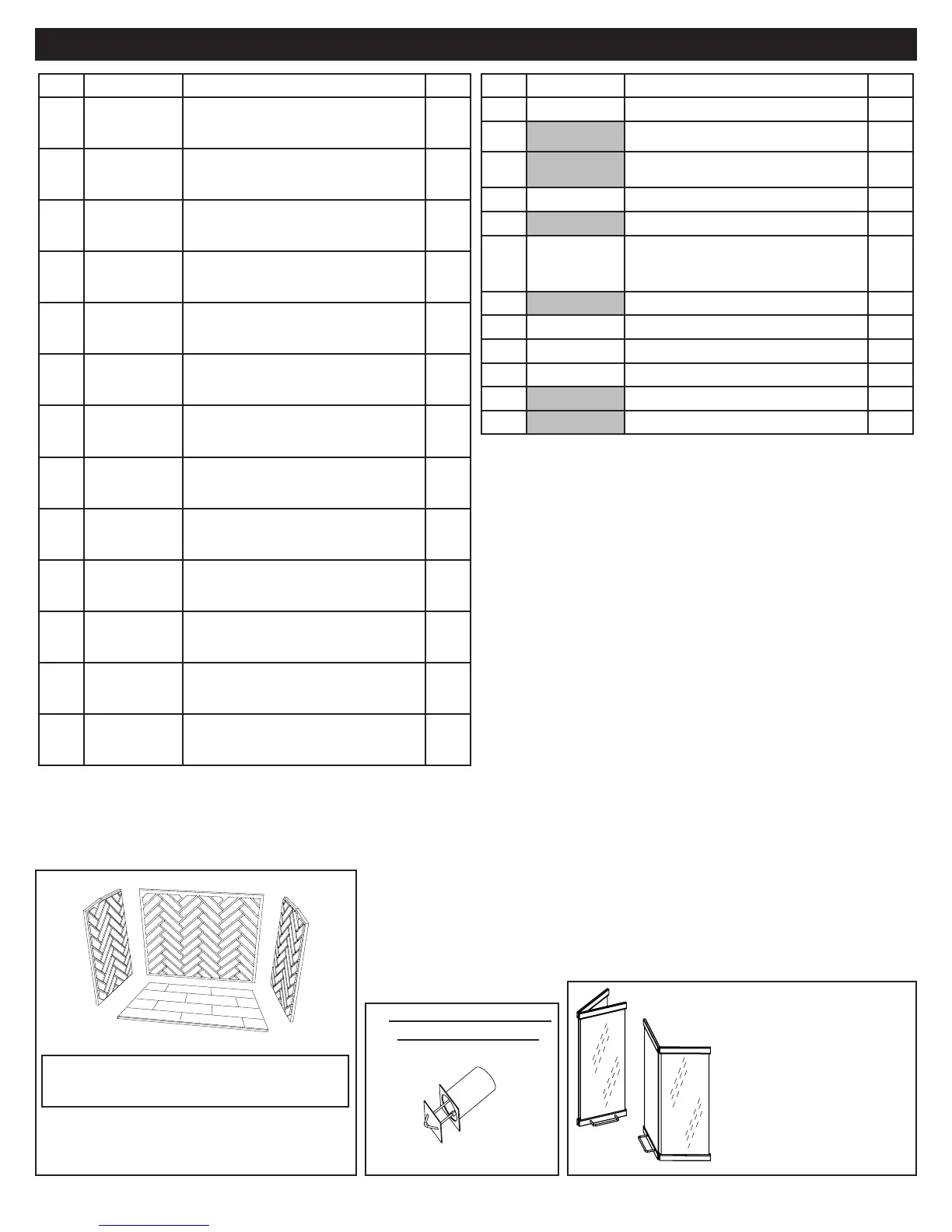

MFP-39/44/49 Fireplace Parts List
ITEM P/N DESCRIPTION
QTY
1
MFP39-1
MFP44-1
MFP49-1
HEARTH (Left or Right)
2
2
MFP39-2
MFP44-2
MFP49-2
REAR WALL
2
3
MFP39-3
MFP44-3
MFP49-3
SIDE WALL
5
3A
MFP39-3A
MFP44-3A
MFP49-3A
SIDE WALL (with Ø4” Outside Com-
bustion Air Hole)
1
4
MFP39-4
MFP44-4
MFP49-4
SMOKE SHELF (Downdraft Diverter)
1
5
MFP39-5
MFP44-5
MFP49-5
DOME REAR - LOWER
1
6
MFP39-6
MFP44-6
MFP49-6
LINTEL
1
6A
MFP39-6A
MFP44-6A
MFP49-6A
LINTEL FRONT
1
6B
MFP39-6B
MFP44-6B
MFP49-6B
T-BAR
1
7
MFP39-7
MFP44-7
MFP49-7
DOME SIDE - LOWER
2
8
MFP39-8
MFP44-8
MFP49-8
DOME SIDE - UPPER
2
9
MFP39-9
MFP44-9
MFP49-9
DOME TOP Ø12”
DOME TOP Ø12”
DOME TOP Ø14”
1
10
MFP39-10
MFP44-10
MFP49-10
DOME FRONT/REAR - MIDDLE
2
ITEM P/N DESCRIPTION
QTY
11
MFP521
RATING PLATE
1
12
NOT SUPPLIED ³
ANCHOR PLATE 1” FIBERGLASS INSU-
LATION BARRIER
1
13
NOT SUPPLIED ³
DAMPER / ANCHOR PLATE (Ø12 OR
Ø14)
1
14
MFP4-AK ¹
4 INCH DIA. OUTSIDE AIR KIT
1
15
NOT SUPPLIED ³
1” FIBERGLASS INSULATION BLANKET
1
16
MFPB39 ¹
MFPB44 ¹
MFPB49 ¹
6” METAL BASE
1
17
NOT SUPPLIED ³
CEMENT BOARD
1
18
MFPSB ¹
ASSY, FLOOR JOIST BRACE
4
19
REBAR
#3 REBAR (Ø3/8”) x 34” L.
A/R ²
20
MFP364
ALL-THREAD BAR, 1/2-13 UNC X 12”
4
21
NOT SUPPLIED ³
NUT, 1/2-13 UNC
8
22
NOT SUPPLIED ³
WASHER, Ø1/2” X 1/16
8
Only Mason-Lite MFP39-GD,
MFP44-GD and MFP49-
GD Glass Doors have been
tested and approved for use
with this replace.
For installation Instructions,
see separate instructions
included with doors.
