7
¹ ITEMS NOTED ARE SOLD SEPARATELY.
² ITEMS INDICATED AS “NOT SUPPLIED” CAN BE OBTAINED FROM YOUR LOCAL HARDWARE STORE.
Optional Outside Ø4”
Combustion Air Kit
Model No.: MFP4-AK
(Ø4” Ducting not included)
Refractory Firebrick Liners
(Herringbone Pattern shown, also available
in Running Bond - see Pg.27)
MFP63SHBL- Herringbone
MFP63FRBL- Running Bond
ITEM P/N DESCRIPTION QTY
1 MFP63-1 HEARTH (Left or Right) 2
1A MFP63-1A HEARTH CENTER 1
2 MFP63-2
REAR WALL (2 PIECES)
3 sets
3 MFP63-3 SIDE WALL 7
3A MFP63-3A SIDE WALL (with Ø4” Outside Combustion Air Hole) 1
4 MFP63-4 DOWN-DRAFT DIVERTER (2 PC) 1 set
5 MFP63-5 DOME REAR - LOWER 1
6 MFP63-6 LINTEL 1
7 MFP63-7 DOME SIDE - LOWER & UPPER 4
8 MFP63-8 DOME SIDE - MIDDLE 2
9 MFP63-9 DOME TOP FOR 16” CLASS A CHIMNEY 1
10 MFP63-10 DOME FRONT/REAR - MIDDLE 2
11 MFP63-11 DOME FRONT/REAR - UPPER 2
12 MFP521 RATING PLATE, MFP63 1
13 NOT SUPPLIED ² Ø16” DAMPER / ANCHOR PLT ---
14 NOT SUPPLIED ² INSULATION BLANKET ---
15 MFP4-AK ¹ 4 INCH DIA. OUTSIDE AIR KIT 1
16 MFPB63 ¹ STEEL SUPPORT PLATFORM 8 INCH HIGH 1
17 NOT SUPPLIED ² CEMENT BOARD, MFP63 ---
18 NOT SUPPLIED ² FIBERGLASS INSULATION BLANKET ---
19 MFPSB ¹ ASSY, FLOOR JOIST BRACE 4
20 REBAR #3 REBAR (Ø3/8”) x (LENGTHS VARY) A/R
21
MFP364
ALL-THREAD BAR, 1/2-13 UNC X 12”
4
22
NOT SUPPLIED ²
NUT, 1/2-13 UNC
8
23
NOT SUPPLIED ²
WASHER, Ø1/2” X 1/16
8

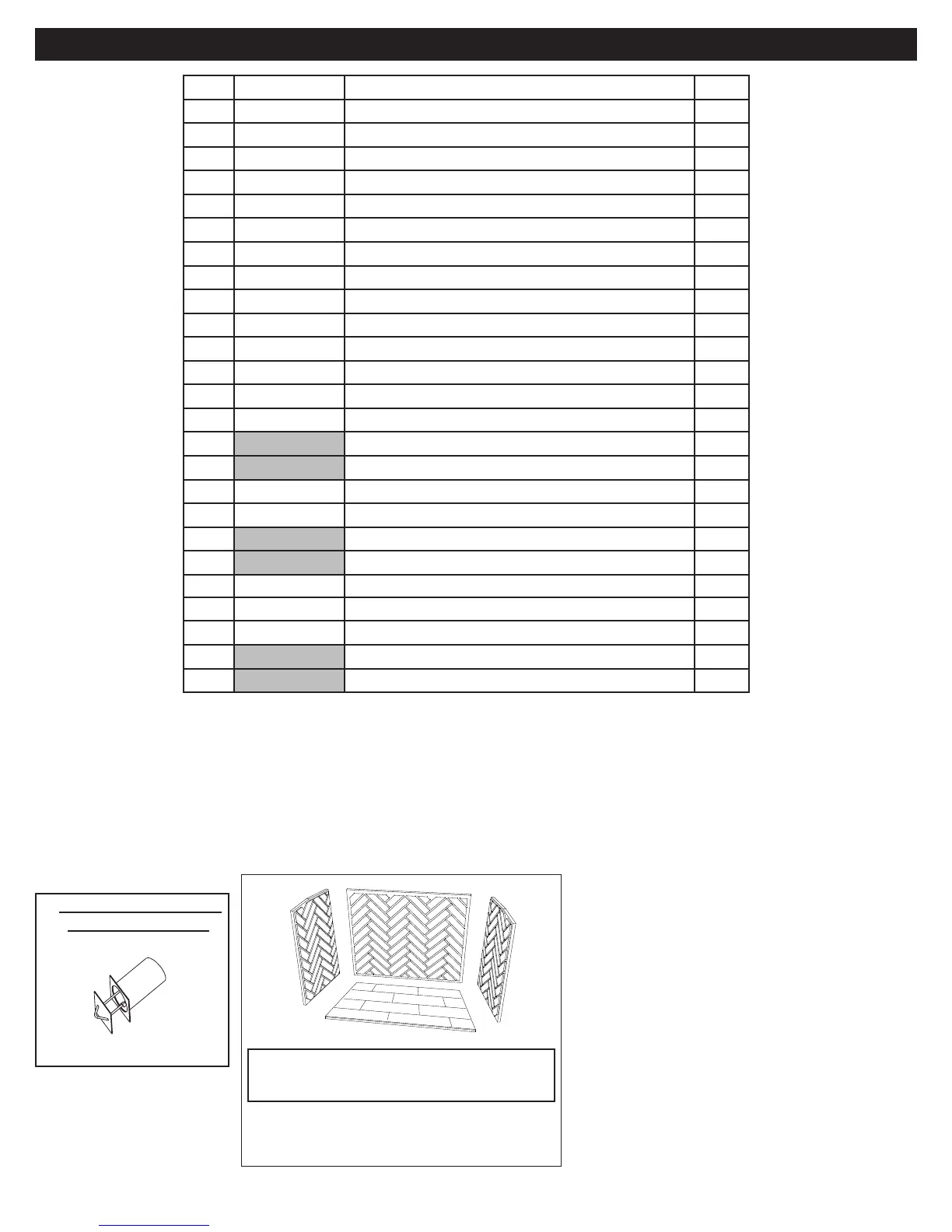

MFP-63 Fireplace Parts List
