15. MAINTENANCE

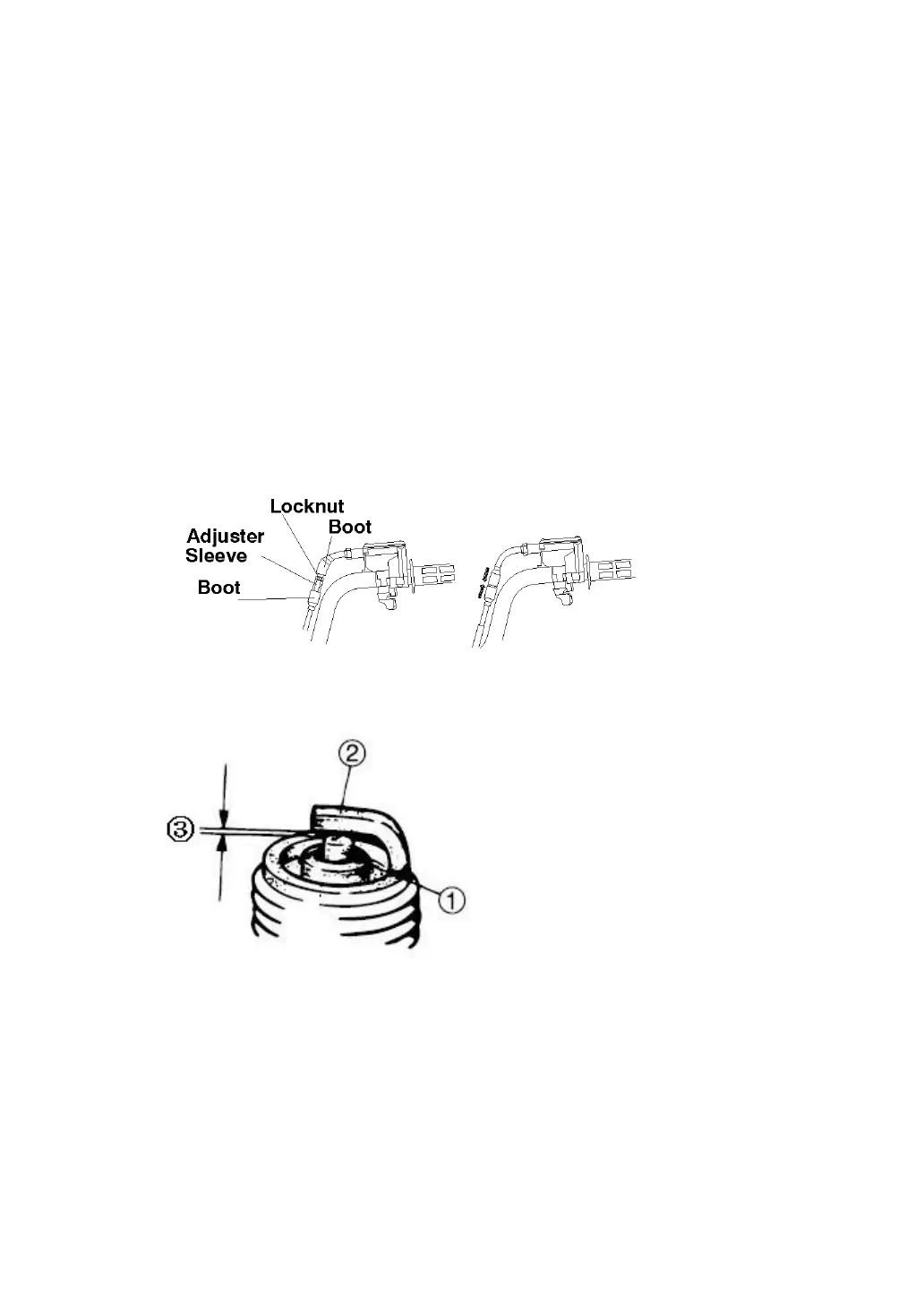

Throttle Cable Free Play Adjustment
Throttle cable free play is adjusted at the handlebar.
1. Side the bolts off inline cable adjuster, Loosen adjuster locknut.
2. Turn adjuster until 1/16” to 1/8” (2to3mm) free play is achieved
at thumb lever. NOTE: While adjusting freeplay, it is important
you flip the throttle lever back and forth.
3. Tighten locknut and slide boots over cable adjuster.
Spark Plugs
Inspect:
l Insulator ①
Abnormal color: Replace.
Normal color is a medium-
To-light tan color.
l Electrode ②
Wear/damage:Replace.
Clean:
l Spark plug
(with spark plug cleaner or
wire brush)
Measure:
l Spark plug gap ③
Out of specification: Adjust
gap.
③ Gap:0.6-0.8mm
Standard spark plug
CR7HSA(NGK)
