15. MAINTENANCE
Transmission Lubrication
The transmission fill plug is located on the right side of the
machine.
The transmission lubricant level should be checked monthly or 20
hours, whichever comes first. Transmission oil should be
changed annually. The correct transmission lubricant to use is
SEA 80W/90GL5 Lubricant.
Transmission Oil Changing Procedure

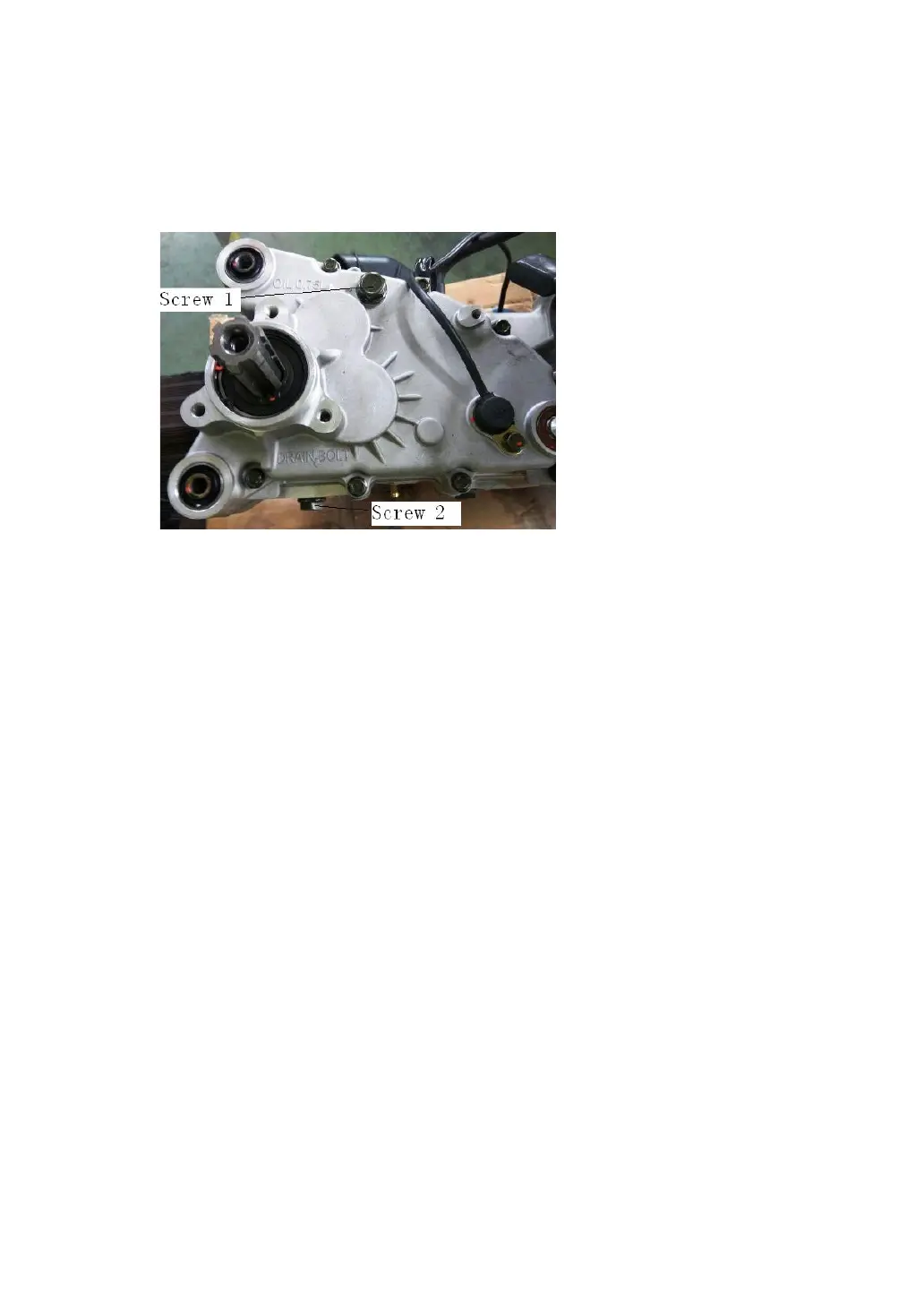

1. Remove the screw (1)
2. Remove the screw (2) and drain the oil. Catch and discard
used oil properly.
3. Clean and reinstall the screw (2) torque to 12-16 ft.lbs.
(17-23Nm）
4. Add the correct amount of SAE SEA 80W/90GL5 Lubricant
300ml
5. Clean and reinstall the screw (1) torque to 12-16 ft.lbs.
(17-23Nm）
6. Check for leaks.
