Master Audio
CS Series. Version 1.0 Mar14 3
2. CONNECTIONS
2.1. Connection description (CS6/T)
• Connect each speaker to the amplifier’s output by choosing the appropriate setting
(5W or 10W)
TO AMPLIFIER’S OUTPUT

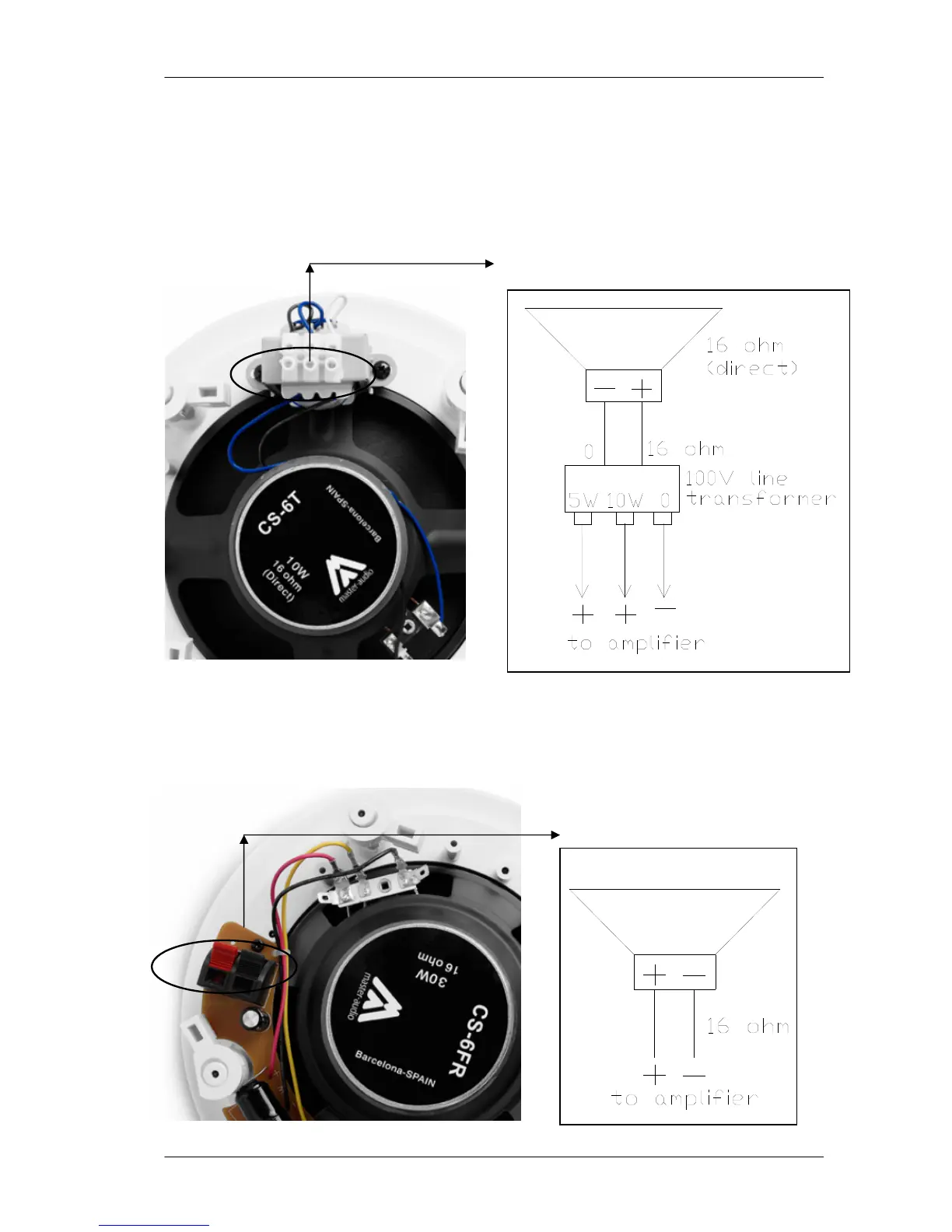

Fig.1. CS6/T wire connection
2.2. Connection description (CS6FR without TF-100 transformer)
• Connect each speaker to the amplifier’s output
TO AMPLIFIER’S OUTPUT
Fig.2. CS6FR wire connection (without TF-100 transformer)
