Master audio X208 - Page 18

Master Audio
Xcellence Line Array Series 208.Ver 1.2 Sep 12
18

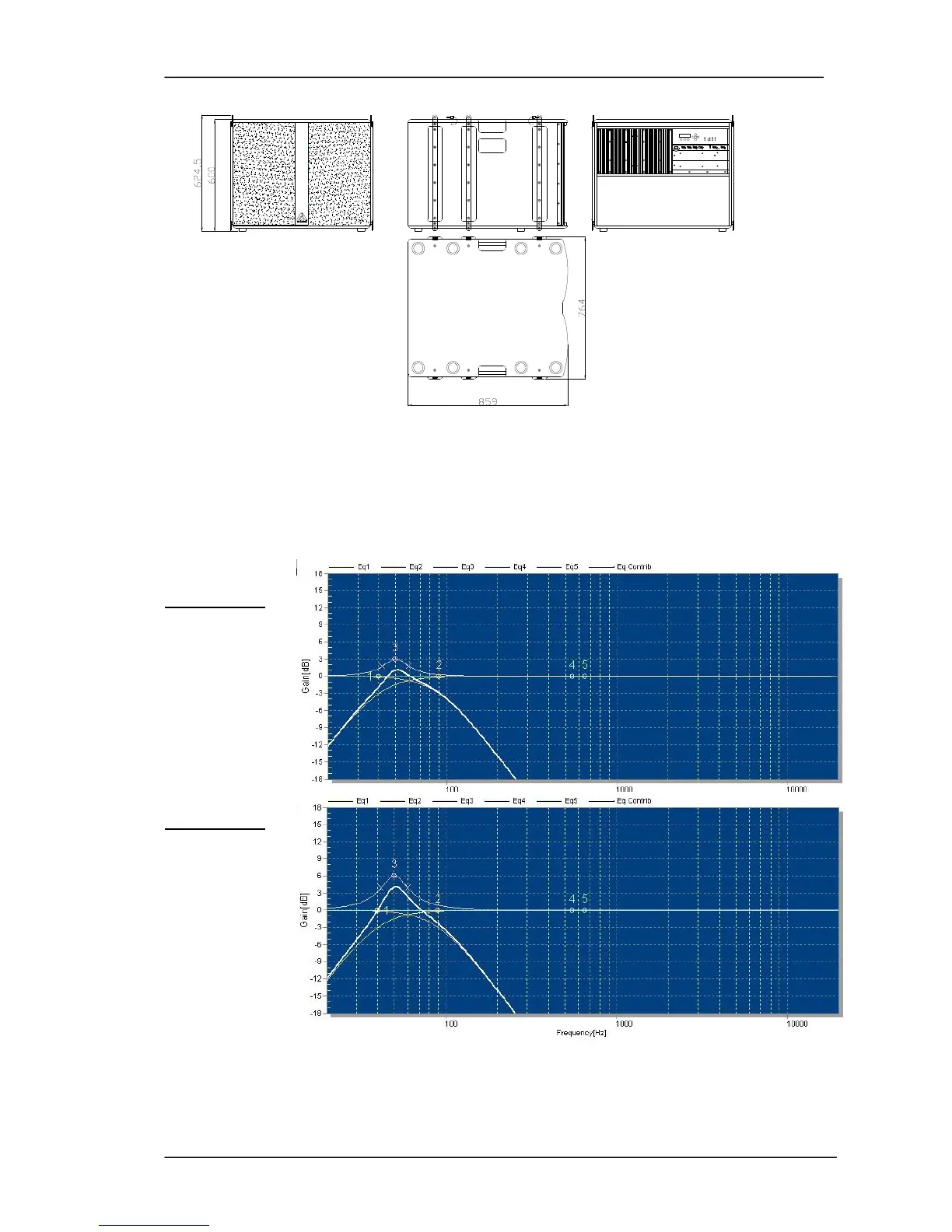

Fig.11. X-215W cabinet. External dimensions
3.2. Presets
The X-215W includes some manufacturer presets for different types of application.
The DSP system can also store up to 23 customer’s presets, depending on user
requirements.
P1-LPF90+3
90Hz
low pass filter
with +3dB boost
at 50Hz
P2-LPF90+6
90Hz
low pass filter
with +6dB boost
at 50Hz
