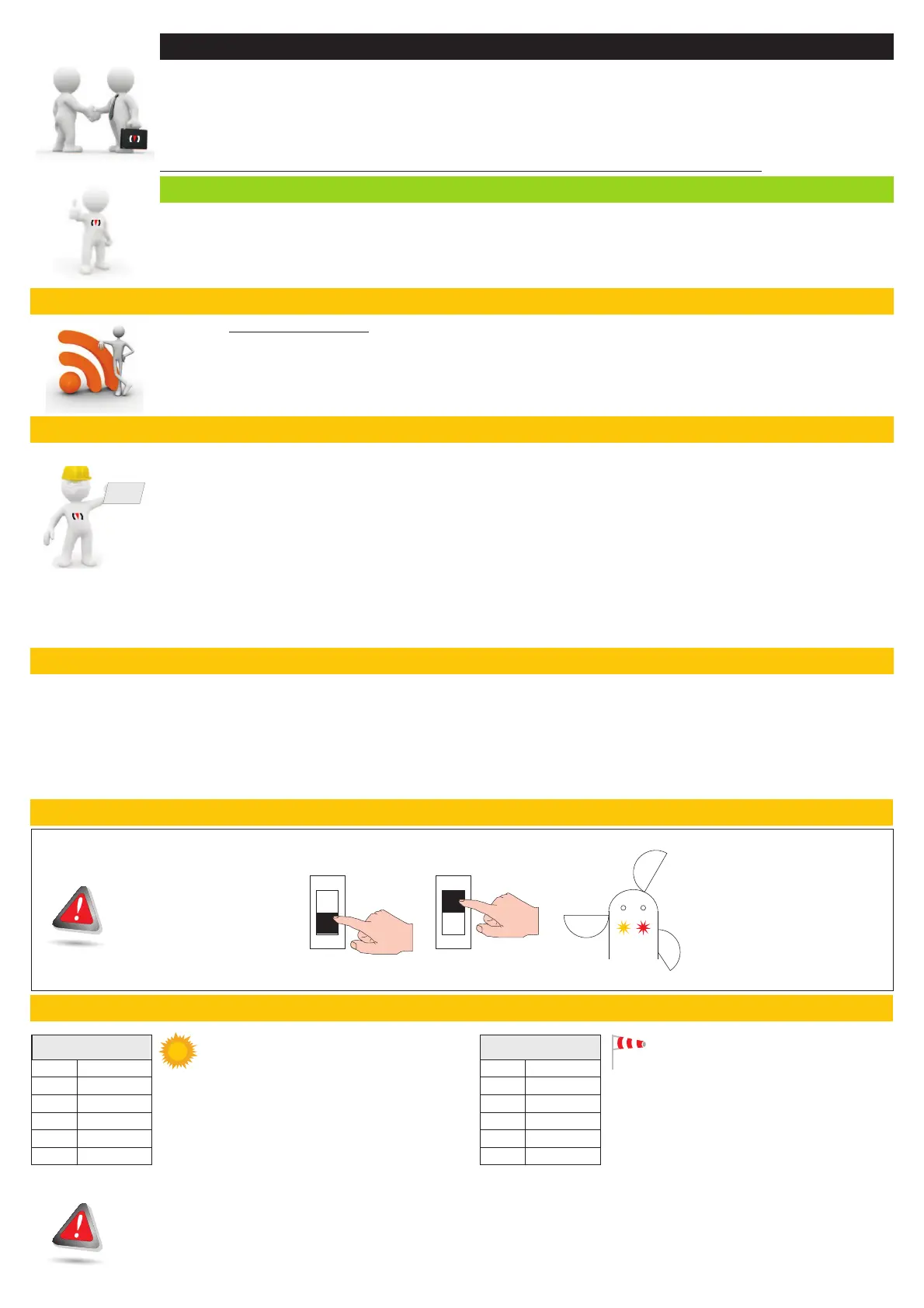

Dear customer, thank you for purchasing a MASTER product.
Here you will find important information regarding the methods of use and the safety of installation.
ECLIPSE BATTERY ia a sun and wind sensor and it can communicate via radio with receiving modules, inside or outside the motor, working at
frequency and made by the same producer.
Comply with the following information and keep for future reference.
The producer cannot be consider responsible for any damages due to improper, wrong or unreasonable use.
FORACORRECT INSTALLATION, IT IS RECOMMENDED TO READ THE FOLLOWING IMPORTANT INFORMATION.
433,92 MHz
Warning
Environmental conservation!
Environmental conservation is an everyone’s duty!
MASTER uses packaging recyclable materials.
Dispose materials on the proper containers, complying with the law in force in your locality.
This product may have substances that are polluting for the environment and dangerous for the health. At hte end of the product life cycle,
carefully comply with the waste disposal rules. It is strictly forbidden to dispose the product on the domestic waste.
It is advisable in areas with strong interference (for xample, near police stations, airports, ports, hospital, etc.).Atechnical
inspection is in any case advisable before installing any radio system in order to identify sources of interference.
Radio systems can be used where possible disturbances or malfunctioning of the transmitter or the receiver do not pose a risk factor, or if the risk
factor is cancelled by suitable safety systems.
The presence of radio device operating on the same transmission frequency ( ) can interfere with the radio receiver of the motor and so
reduce the range of the system and limit the functionality of the installation.
to avoid using radio systems
433,92 MHz
01. Important notes on radio systems
GUIDANCE
SECURITY
01.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
The product must be installed by qualified technical personnel so as to comply with the standards and laws in force in your locality.
Do not modify or replace parts without the manufacturer’s permission.
If there are several radio motors in the same system, the minimum distance between them must not be less than 1,5 metres.
Aviolent shock and the use of unsuitable tools can cause the brackage of internal or external parts of the device.
Do not drill or tamper the device for any reason.
Do not install the product near metal surfaces.
Operating on the device with caution, using suitable tools.
Check that the sensor has been installed on the correct position and well exposed to the wind and that there are no obstacles to the blades rotation.
Check that the sensor placed over the blades is not obscured by trees, gutters, etc.
This sensor has not been studied for working with blades turned upside down (as on the first picture).
It is advisable to periodically clean the sensor dome with a damp cloth in order to always have the maximum ability to detect the sun.
02. Check that the package is intact and has not suffered damage in transit.
02. Warnings on installation
03. Technical characteristics (related to 20°C working temperature)
- Power supply :
- Battery duration :
- Working temperature :
- Working frequency :
3V battery
5 years
-20°C / +55°C
433,92 MHz
(estimate)
- Supported sensors :
- Wind threshold : 5 35
- Sun threshold : 1 45
sun and wind
from to Km/h
from to Klux
1
ON
1
ON
1 2
ONCE THE SWITCH IS « »
THE ECLIPSE BATTERY
SIGNALS ITS ACTIVATION
THROUGH TWO LEDS
LIGHTING.
IF THIS DOES NOT HAPPEN
PUT SWITCH ON THE « »
POSITION, WAIT 30 seconds
AND REPEAT THE OPERATION.
ON
OFF
OPEN THE ECLIPSE BATTERY
COVER AND SWITCH IT « »
THROUGH THE SWITCH
ON THE BATTERY
ON
04. ECLIPSE BATTERY switching on.
05. Sun / Wind threshold table and visual signals :
6
5
4
3
2
1
15 Klux
8 Klux
1 Klux
45 Klux
30 Klux
22 Klux
Velocità
Soglia
SUN threshold
6
5
4
3
2
1
20 Km/h
15 Km/h
10 Km/h
35 Km/h
30 Km/h
25 Km/h
Velocità
Soglia
factory set up
(*)
factory set up
(*)
(*)
(*)
SUN FUNCTION :
ECLIPSE BATTERY sends a sun presence
transmission when intensity of the sun
exceeds the set sun threshold for at least 2,5
minutes, and sends a sun absence
transmission when the intensity of the sun is
lower that the set threshold for at least 18
minutes.
WIND FUNCTION :
ECLIPSE BATTERY sends a wind danger
transmission to the tuned receiving modules
when the wind speed exceeds the set
threshold for longer than 3 seconds. It exits the
wind alarm mode after 8 minutes from the last
gust over the set threshold. The sun control is
off during the wind alarm mode.
In order to preserve the duration of the mounted battery, no signals are sent during the normal working. Only when a transmission due to weather changing
is sent (from wind presence to absence, from sun presence to absence or vice versa) the red led briefly lights.
WIND threshold
