PORTABLE GASOLINE GENERATORS
R
PART NUMBER FOR MODEL
MGH5000D
KEY MGH4000C MGH5000DI MGH6000D
NO. MGH4000CI MGH5000DIE MGH6000DI MGH6500IE DESCRIPTION QTY.
099723-01 099723-02 099723-03 099723-04 Alternator Assembly 1
1 099844-01 099844-01 099844-01 099844-01 End Cover 1
2 099701-01 099701-01 099701-01 099701-01 Screw, M5 x 13 6
3 099760-01 099760-01 099760-01 099760-01 Bushing 1
4 099863-01 099863-01 —— —— Terminal Block (4-block) 1
5 099863-02 099863-02 099863-02 099863-02 Terminal Block (2-block) 1
6 17587000** 17587000** 17587000** 17587000** Ground Lug 1
7 M11084-26 M11084-26 M11084-26 M11084-26 Screw, #10-16 x 3/8" 1
8 099847-01 099847-02 099847-03 099847-04 Stator Bolt 4
9 WLE-5 WLE-5 WLE-5 WLE-5 Lock Washer, 5/16" 4
10 099843-01 099843-01 099843-01 099843-01 Bearing Housing 1
11 27004002S 27005003S 27006001S 27007004S Capacitor 1
12 —— —— 100054-01 100054-01 Terminal Post 4
13 * * * * Stator 1
14 27003002 27003002 27003002 27003002 Fan Bracket 1
15 27003015S** 27003015S** 27003015S** 27003015S** Screw, M8 x 20 4
16 099891-01 099891-01 099891-01 099891-01 Rotor Nut, Flanged 8mm 1
17 099892-01 099892-01 099892-01 099892-01 Foam Pad 1
18 099842-01 099842-02 099842-03 099842-04 Draw Bolt 1
19 27003003 27003003 27003003 27003003 Bearing 1
20 27003012S 27003012S 27003012S 27003012S Diode 2
21 * * * * Rotor 1
22 27003008 27003008 27003008 27003008 Fan 1
23 27003007S 27003007S 27003007S 27003007S Engine Flange 1
24 26322004** 26322004** 26322004** 26322004** Bolt, 3/8-16 x 5/8" 4
25 WLE-6** WLE-6** WLE-6** WLE-6** Lock Washer, 3/8" 4
1
6
2
10
13
3
9
8
4
7
5
11
17
12
16
18
14
19
20
15
21
22
9
23
25
24

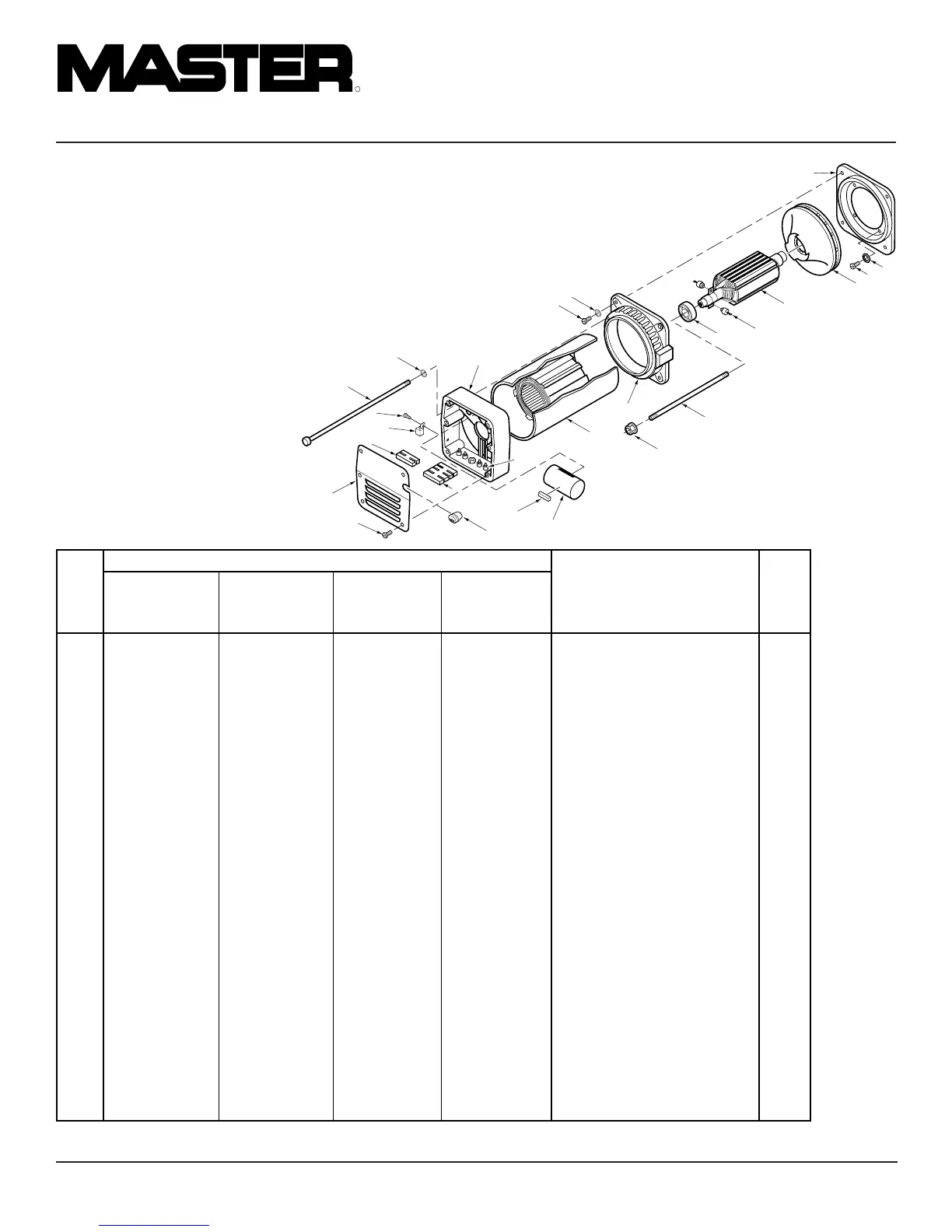

ILLUSTRATED
PARTS LIST
For Models MGH4000C,
MGH4000CI, MGH5000D,
MGH5000DI, MGH5000DIE,
MGH6000D, MGH6000DI,
MGH6500IE Alternator
Assembly
This list contains replaceable parts used
in your generator. When ordering parts,
follow the instructions listed under Re-
placement Parts on page 32 of this
manual.
* Part not available by itself. Must purchase Alternator Assembly.
**Available at your local hardware store.
