Master JUPITER User Manual

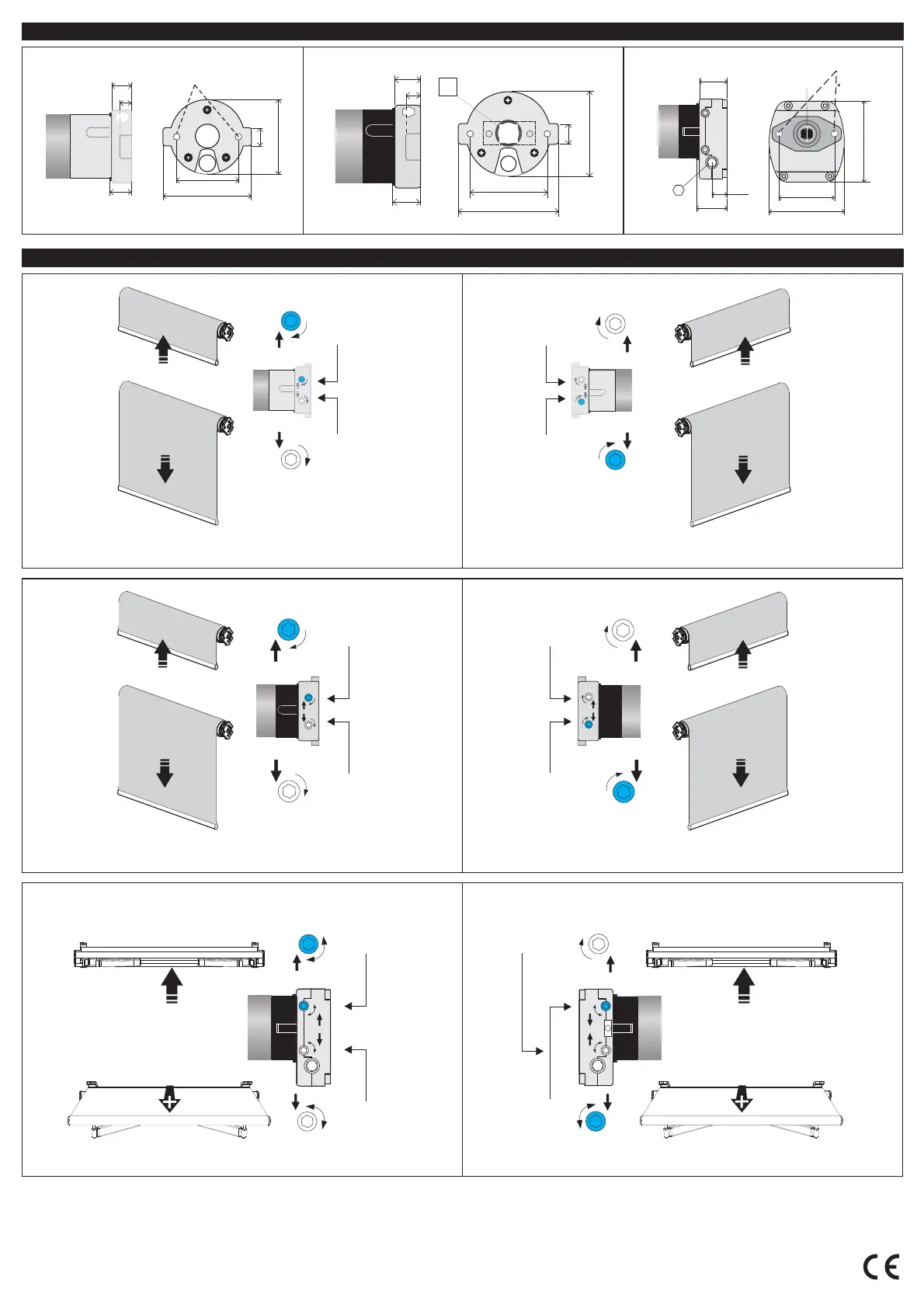

03. TECHNICAL DIMENSION
04. LIMIT SWITCH REGULATION
MERCURY
JUPITER
27
24,5
13,4
7
48
65
Ø 12
70
Depth max. M6x10
SATURN
11
6
14
Depth
max. 9
30
50
13 42
Ø12
14
9
17
13
10
10
53
48
63
Ø 12
MOTOR TO THE LEFTMOTOR TO THE RIGHT
-
-
+
+
+
+
-
-
-
-
-
-
-
-
+
+
+
+
-
-
+
+
+
+
UPPER LIMIT SWITCH
LOWER LIMIT SWITCH
UPPER LIMIT SWITCH
LOWER LIMIT SWITCH
If the fabric is wrapped from behind the roller: the blue screw adjusts the
lower limit switch, the white screw adjusts the upper limit switch
If the fabric is wrapped from behind the roller: the blue screw adjusts the
lower limit switch, the white screw adjusts the upper limit switch
BLUE screw
BLUE screw
WHITE screw
WHITE screw
-
-
-
-
+
+
-
-
+
+
MOTOR TO THE LEFTMOTOR TO THE RIGHT
-
-
+
+
+
+
UPPER LIMIT SWITCH
LOWER LIMIT SWITCH
UPPER LIMIT SWITCH
LOWER LIMIT SWITCH
If the fabric is wrapped from behind the roller: the blue screw adjusts the
lower limit switch, the white screw adjusts the upper limit switch
If the fabric is wrapped from behind the roller: the blue screw adjusts the
lower limit switch, the white screw adjusts the upper limit switch
BLUE screw
BLUE screw
BLUE screw
BLUE screw
WHITE screw
WHITE screw
WHITE screw
WHITE screw
JUPITER
MERCURY
SATURN
+
-
-
+
MOTOR TO THE RIGHT
UPPER LIMIT SWITCH UPPER LIMIT SWITCH
LOWER LIMIT SWITCH
LOWER LIMIT SWITCH
++
MOTOR TO THE LEFT
+
-
-
+
All products and technical specifications given in this document are subject to variation without notice. The manufacturer shall not be liable for damage resulting from improper, incorrect or
unreasonable use. Hereby MASTER SpA declares that this motor complies with the essential requirements and other relevant provisions of Directives. The declaration of conformity can be
requested at the following email address: info@mastermotion.eu
