Master MASTERFLOW AH-301 User Manual

6
www.masterappliance.com
Item No. Part No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
35485
35486 *
30310
30311 *
30312
30313 *
825
827
837
839
845
20108
50737
50927
805
GRT-023
35238
842
50924
843 *
35229 *
35258 *
50989
51008
51009 *
Element Kit, AH-301, with Mica, 120V
Element Kit, AH-302, with Mica, 220/240V
Element Kit, AH-501, with Mica, 120V
Element Kit, AH-502, with Mica, 220/240V
Element Kit, AH-751, with Mica, 120V
Element Kit, AH-752, with Mica, 220/240V
Bracket Bar Kit
Mica Insulation
Nozzle Kit
Shield Kit
Toggle Switch Kit
Stand Kit
Handle Kit
Thermal Fuse with Terminals and Shrink Sleeve
Lead Wire with Thermal Fuse, Switch to Element
Strain Relief, Switch/Blower Housing
Strain Relief, Power Cordset
Cordset, 120V, 15A, with Strain Relief
Cordset, 120V, 20A, with Strain Relief
Cordset, 220/240V, USA, with Strain Relief
Cordset, 220/240V, European, with Strain Relief
Cordset, 220/240V, British, with Strain Relief
Blower Wheel, Metal
Motor Blower Assembly, 120V, with Strain Reliefs
Motor Blower Assembly, 220/240V, with Strain Reliefs
* 230 Volt Models Only
Note: Kits include hardware (see exploded view)
16 40309 Attachment, 2” Heat Shrink Reflector
Masterow
®
Parts List - All Models
(When ordering, please specify part number and description.)
Accessory
Masterflow
®
Heat Blower replacement parts and accessories are engineered and manufactured to precise Master
Appliance specifications. Replacement parts and accessories from other manufacturers are not produced to these
precise specifications and, therefore, may cause difficulties with—or actual damage to—a Masterflow
®
Heat Blower.
Master Appliance cannot assume any responsibility or liability for difficulties resulting from the use of any other
brand of replacement parts or accessories with a Masterflow
®
Heat Blower.

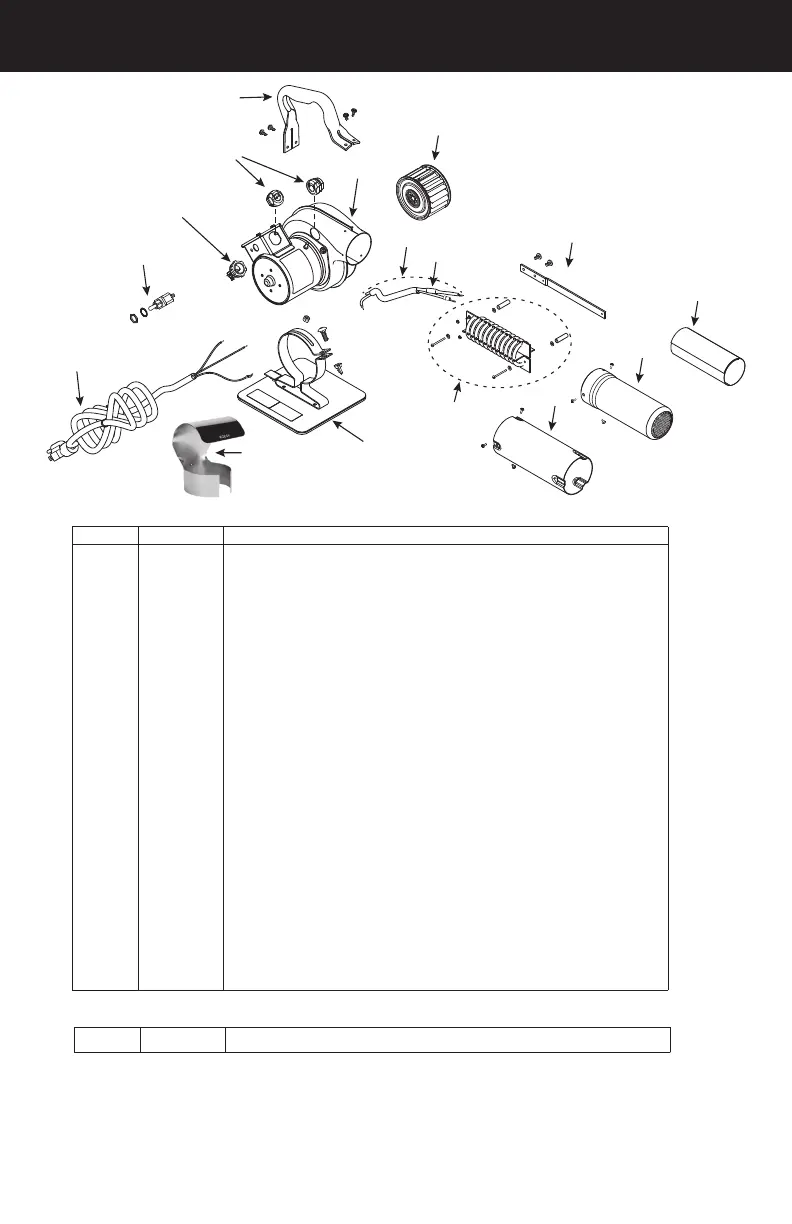

ExplodEd ViEw
8
12
11
1
7
6
13
15
14
2
4
3
5
10
9
16
