PORTABLE GASOLINE GENERATORS
R

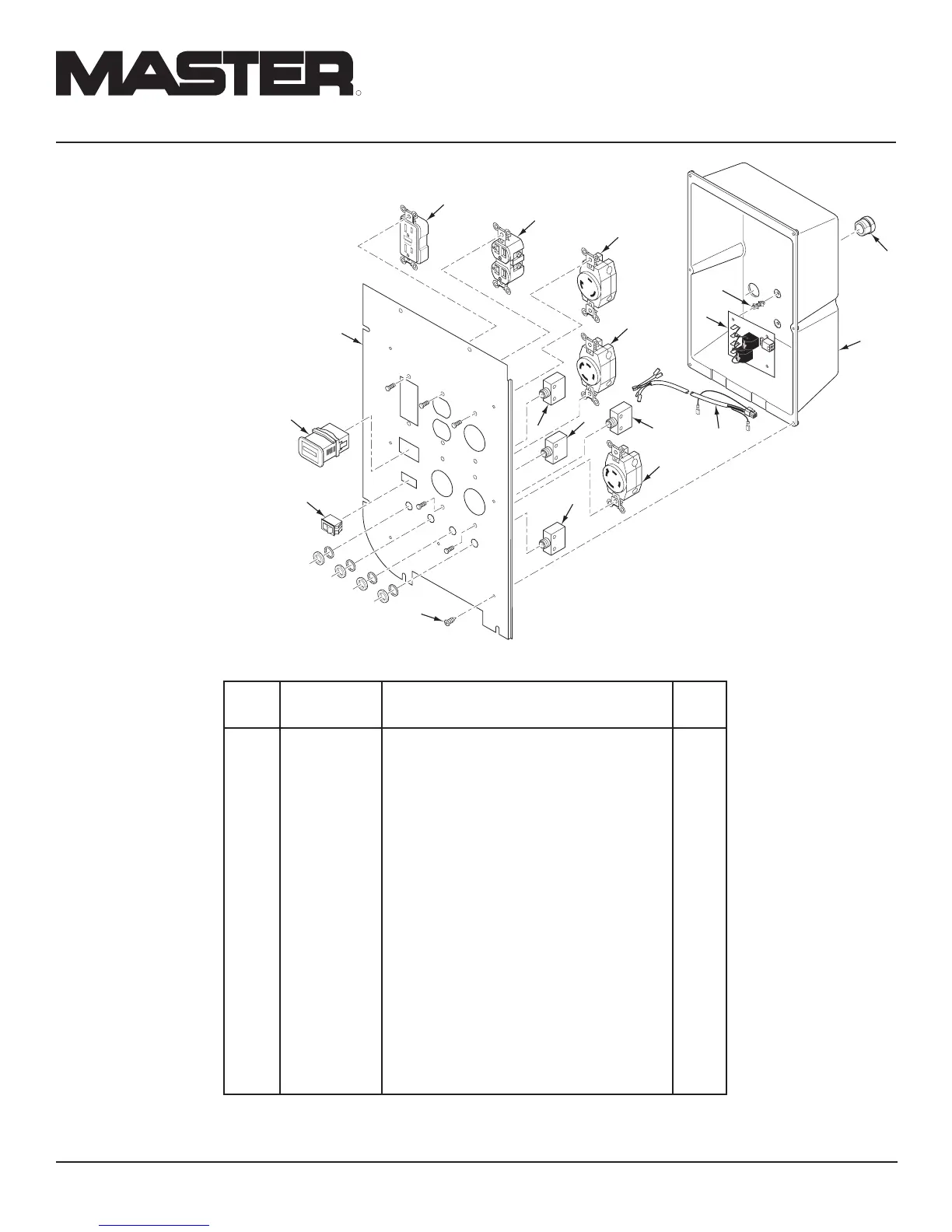

ILLUSTRATED
PARTS LIST
For Model MGH8500AIE
Control Panel
This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 25 of this manual.
* Includes fastening hardware
‡ Not shown
† Includes reference numbers 1 through 14
P5
P2
P1
P4
P3
120/240V
TWISTLOCK
120V
TWISTLOCK
120V
GFCI
120V
HOUR METER
AUT
O-IDLE
RESET
RESET
RESET
RESET
OFF
ON
120/240V
TWISTLOCK
RESET
TEST
ENM
00000005
H
O
U
R
S
1/10
1
14
16
9
13
12
10
11
15
5
4
3
6
2
2
8
7
7
KEY
NO.
PART
NUMBER DESCRIPTION QTY.
1 114738-03 Control Panel 1
2 22616009 Circuit Breaker, 20 Amp * 2
3 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 104202-01 120V, 20A Duplex Receptacle * 1
5 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
6 099835-01 120/240V, 30A Twist-Lock Receptacle * 1
7 103184-01 Circuit Breaker, 45 Amp * 2
8 099834-01 120/240V, 20A Twist-Lock Receptacle * 1
9 101350-01 Hour Meter 1
10 099760-02 Bushing 1
11 114722-01 Enclosure 1
12 116475-01 Plastite Pan Head Screw 6
13 100366-01 Rocker Switch 1
14 116549-01 Auto-Idle Control Board 1
15 116678-01 Auto-Idle Wiring Harness 1
16 114785-01 Locking Circuit Board Supports 4
† 114721-04 Control Panel Assembly 1
‡ 114963-03 Panel Schematic Decal 1
