Master STAR User Manual

ON
SWITCH ON
POWER SUPPLY
BRING THE MOTOR
TO THE INTERMEDIATE
POSITION
(around half way)
IDENTIFY THE BUTTON
THAT MOVES THE
MOTOR DOWNWARD
WAIT THE
AUTOMATIC
STOP
(
).
anyway it is possible
to modify the limit switch
position using
the manual command
ROLLER SHUTTER
WITH STOPPERS
AFTER 2 SECONDS
THE MOTOR OPERATES
A LARGE DOWNWARD
MOVEMENT AND TWO
SMALL UPWARD
MOVEMENTS.
ROLLER SHUTTER
WITHOUT STOPPERS
AUTOMATIC
STOP
WITHIN 8 SECONDS
PRESS « »
ON THE TRANSMITTER
TO BE STORED.
STOP
THE UPWARD MOVE
OF THE MOTOR
SIGNALS THE
STORAGE.
MANUAL STOP
WAIT THE AUTOMATIC STOP
(
).
anyway it is possible to modify the limit switch
position using the manual command
CASSETTE
AWNING
SQUARE BAR
AWNING
AUTOMATIC
STOP
MANUAL STOP
AFTER 2 SECONDS THE MOTOR OPERATES
A LARGE DOWNWARD MOVEMENT AND TWO
SMALL UPWARD MOVEMENTS.
WITHIN 8 SECONDS
PRESS « »
ON THE TRANSMITTER
TO BE STORED.
STOP
THE UPWARD MOVE
OF THE MOTOR
SIGNALS THE
STORAGE.
MANUAL STOP
(
).
anyway it is possible
to modify the limit switch
position using
the manual command
THE SCREEN
NEEDS
BECAUSE ITS
UPPER POSITION IS
NOT DELIMITED
BY AN OBSTACLE.
THE MANUAL
STOP
THE UPWARD MOVE
OF THE MOTOR
SIGNALS THE
STORAGE.
WITHIN 8 SECONDS
PRESS « »
ON THE TRANSMITTER
TO BE STORED.
STOP
WAIT THE
AUTOMATIC STOP
(
).
anyway it is possible
to modify the limit switch
position using
the manual command
AUTOMATIC
STOP
WITHIN 8 SECONDS
PRESS « »
ON THE TRANSMITTER
TO BE STORED.
STOP
THE UPWARD MOVE
OF THE MOTOR
SIGNALS THE
STORAGE.

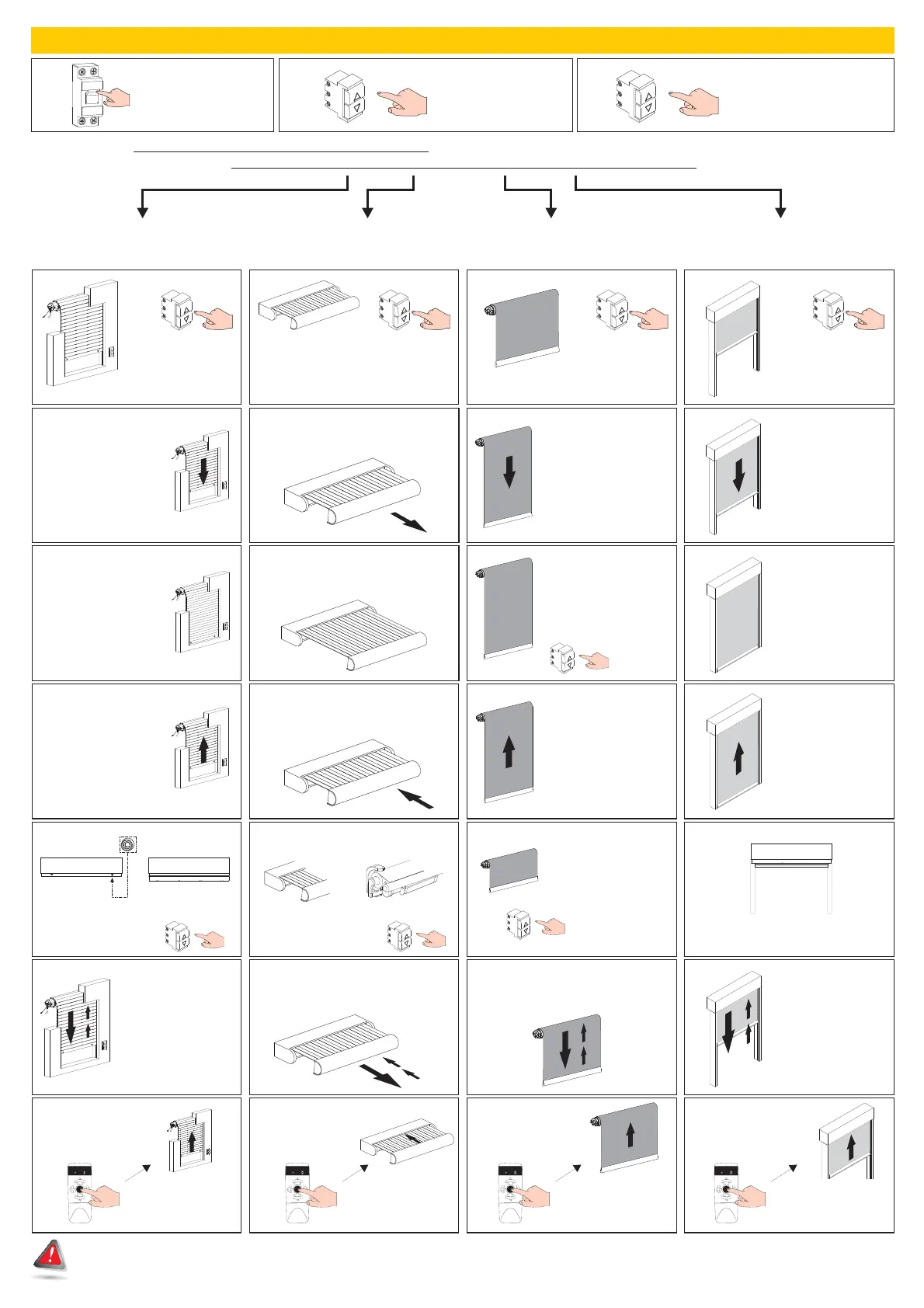

06. Limit switches regulation mode using the command buttons.
After the sequence of press, the motor sets up for the chosen application. It could happen that the down button commands an upward move and vice-versa.
This behaviour forms an integral part of the procedure.
PRESS
3 TIMES
DOWN
PRESS
5 TIMES
DOWN
PRESS
7 TIMES
DOWN
PRESS
9 TIMES
DOWN
THEN PRESS AND RELEASE IN QUICK SUCCESSION
THE BUTTON THAT MOVES THE MOTOR DOWNWARD IF THE APPLICATION IS FOR :
(without moving the motor, 1 sec. between one press and the next)
RULLER SHUTTER
AWNING SCREEN GARDEN
Offset adapter necessary Offset adapter advised Standard adapter Offset adapter necessary
WAIT AROUND
8 SECONDS
THE MOTOR MOVES
UPWARD.
WAIT AROUND 8 SECONDS
THE MOTOR MOVES UPWARD.
WAIT AROUND
8 SECONDS
THE MOTOR MOVES
UPWARD.
WAIT AROUND
8 SECONDS
THE MOTOR MOVES
UPWARD.
WAIT AROUND
2 SECONDS.
THE MOTOR MOVES
DOWNWARD.
WAIT AROUND 2 SECONDS,
THE MOTOR MOVES DOWNWARD.
WAIT AROUND
2 SECONDS.
THE MOTOR MOVES
DOWNWARD.
WAIT AROUND
2 SECONDS.
THE MOTOR MOVES
DOWNWARD.
AFTER 2 SECONDS THE MOTOR OPERATES
A LARGE DOWNWARD MOVEMENT AND TWO
SMALL UPWARD MOVEMENTS.
AFTER 2 SECONDS THE
MOTOR OPERATES
A LARGE DOWNWARD
MOVEMENT AND TWO
SMALL UPWARD
MOVEMENTS.
instruction guide STAR / VENUS rev01 16.04.12
