03
Once a valid stroke has been memorized, the motor is able to receive commands from both a memorized transmitter and from the command buttons
(optional, see section 05 "Electrical connection") according to the following modes:

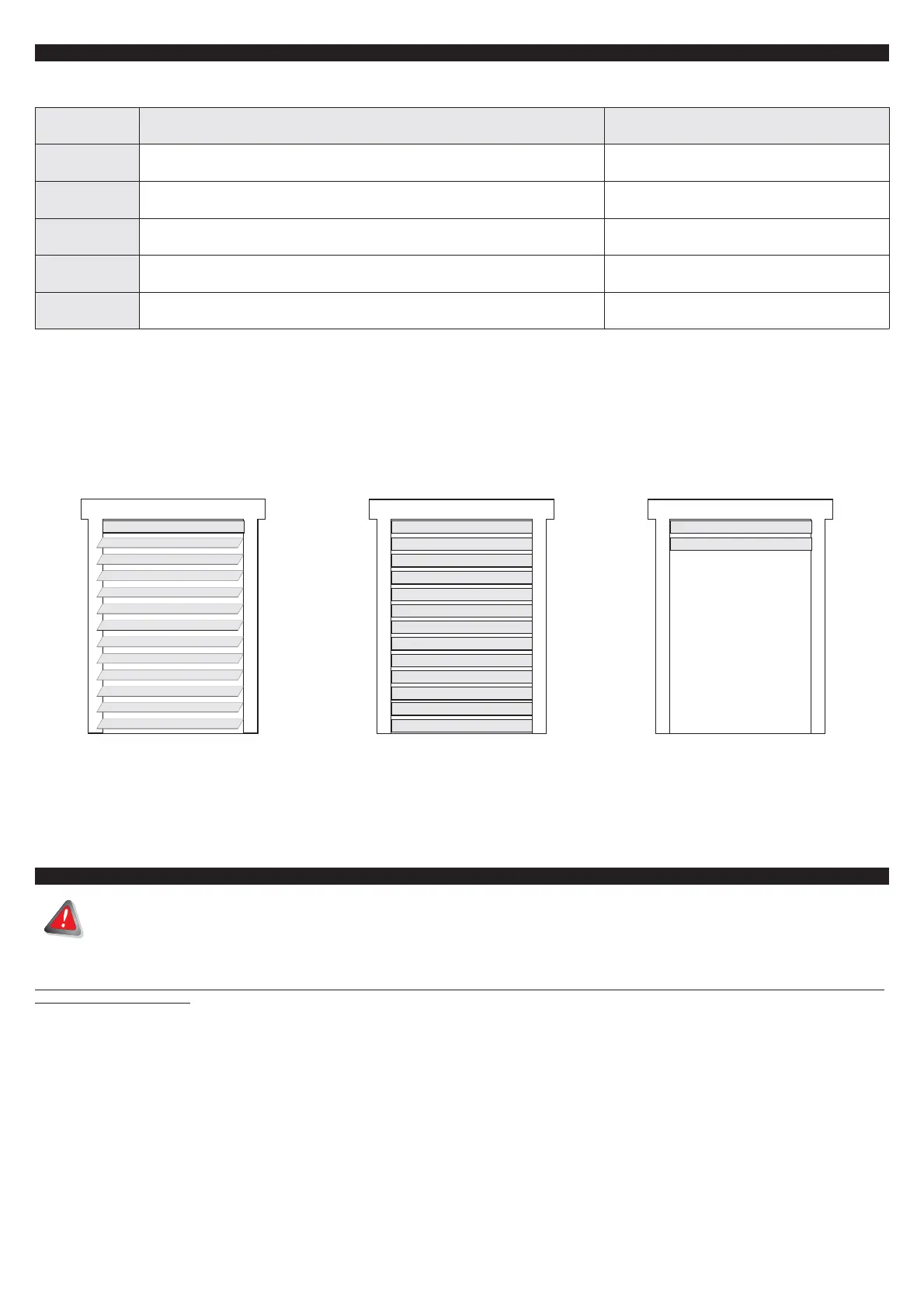

06. COMMANDS and DEFINITIONS
ACTION
COMMAND BY BUTTON
COMMAND BY TRANSMITTER
Open
Close
Stop
Open slats
Tilting
(1)
Press UP for about 0,5 s
Press DOWN for about 0,5 s
Press UP or DOWN briefly (less than 0,5 s)
Press briefly and quickly DOWN 2 times
Press press a button briefly and then hold down the same button
Press UP
Press DOWN
Press STOP
Press FOR ME
(2)
Press RIGHT or LEFT orientation
(1) the Tilting operation is allowed only between the "Open slats" position and the "Close slats" position
(2) some remote controls may not provide FOR ME function (or preferred position). Make sure the remote control has this option
(3) some remote controls may not provide Right and Left orientation functions. Make sure the remote control has this option
Position 1
Position 2
Position 3
Open slats
Close slats
Roller shutter up
During the motor installation, you must set 3 limit switch. The 3 positions are shown below.
07. LIMIT SWITCH PROGRAMMING
WARNING:
if possible, always install the roller shutter in such a way that at least one of the two limit switches is learned by "pressing" on the lower stop (anti-lifting devices) or
on the upper stop (stopper). The learning of at least one limit switch for "pressure" allows the motor to automatically compensate for variations due to the
adjustment of the blind and other possible factors of error. Periodically check the status of the roller shutter and (if present) of the locking devices that delimit the
limit switches (anti-lifting devices, stopper). If a limit switch is learned by "pressure", the motor will search the pressure point during normal operation. For this
reason, once the stroke has been programmed, it is forbidden to remove any locking devices that delimit the limit switches. In order to do not stress the pressure
points too much, choose a motor with power not higher than enough to move correctly the roller shutter.
The motor provides the possibility to program the limit switches according to 4 different modes:
1. roller shutter without anti-lifting devices and without stopper (see section 7.1)
2. roller shutter with anti-lifting devices and without stopper (see section 7.2)
3. roller shutter without anti-lifting devices and with stopper (see section 7.3)
4. roller shutter with anti-lifting devices and with stopper (see section 7.4)
In the case of installation of several motors, must be programmed (and therefore powered) one motor at a time.
The installation must be carried out by a qualified technician. Before starting to work on the motor, carefully read the installation procedure. In case
of doubt, contact your supplier.
Installation must be performed using an ARCO, VISIO, KORT, KUADRO, FLUTE or equivalent transmitter. Before starting the installation, read the
transmitter instruction manual and identify the UP, STOP, DOWN, PROG buttons necessary for motor programming.
NOTE: as long as the motor does not have a valid stroke in memory, you can move the motor in "hold-to-run" using the command buttons.
To continue with the installation, it is necessary to disconnect the motor and follow the procedures described.
