Master TOOL User Manual

04
04.2 SCREEN WITHOUT CASSETTE
ON
Go to point 4
Repeat point 2
3x
Only if fine adjustment is necessary
Prog
Prog
Prog

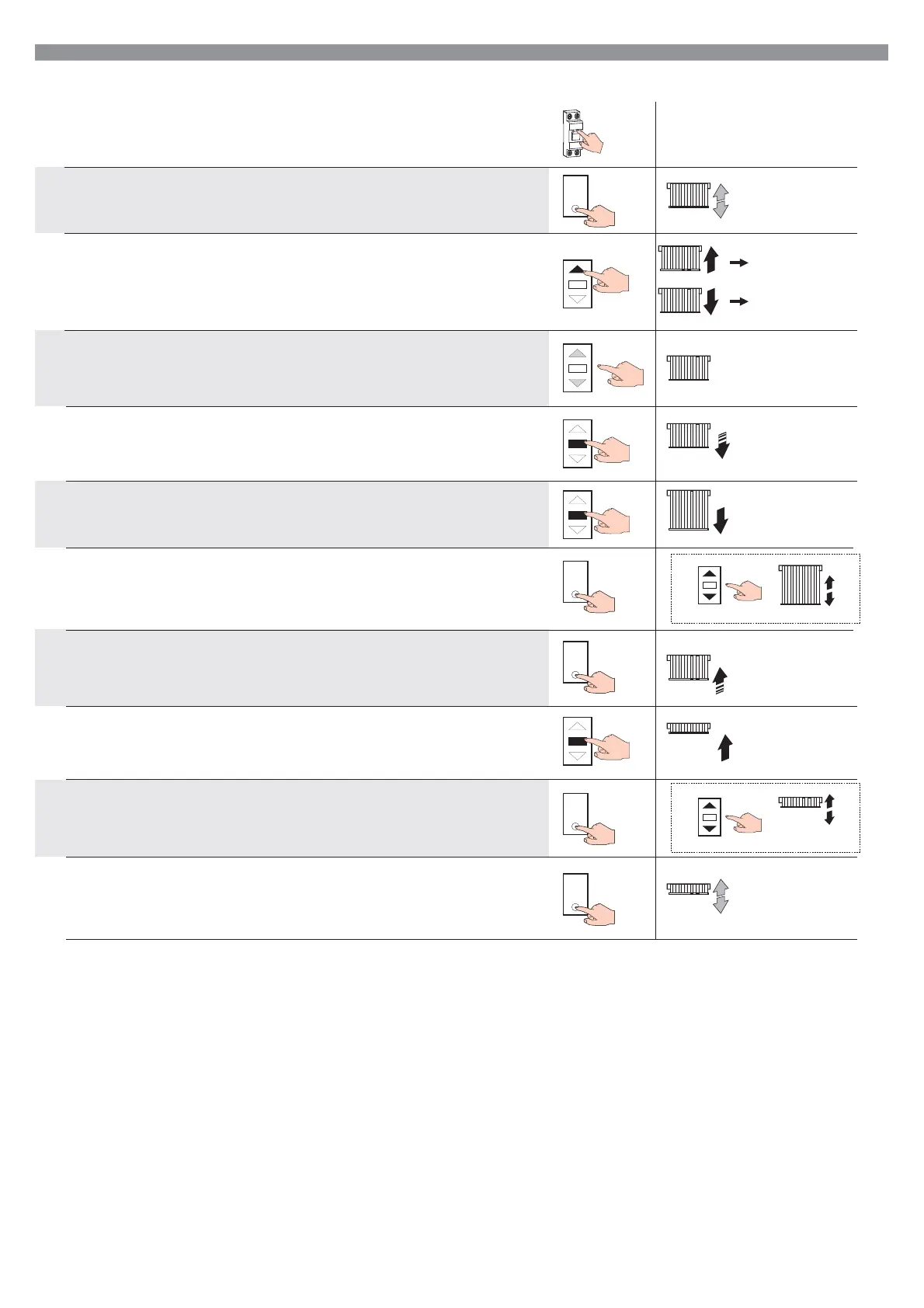

1- Connect the power supply.
2- Press PROG briefly (within 1 minute).
The motor makes a signal
3-
Press briefly UP.
If the motor moves downward return to point 2,
if the motor moves upward go to point 4.
4-
Bring the awning in an intermediate position,
keeping pressed UP or DOWN.
5- Press STOP briefly 3 times and wait.
The motor moves downward
6-
Stop the motor in the desired position by pressing STOP.
7- Press PROG briefly.
If you want to make a fine adjustment of the limit switch press UP or DOWN
(motor moves in small steps)
8-
Press PROG briefly.
The motor moves upward
9-
Stop the motor in the desired position by pressing STOP.
10- Press PROG briefly.
If you want to make a fine adjustment of the limit switch press UP or DOWN
(motor moves in small steps)
11-
Press PROG briefly.
The motor signals DOWN-UP. End of the installation!!
WARNING: by programming the motor in this mode, the motor can not automatically compensate for any lengthening / shortening of the fabric..
Prog
Prog
Only if fine adjustment is necessary
