OIL INJECTION INSTRUCTIONS:
A. FOLLOW THE DYE INJECTION INSTRUCTIONS TO PURGE AND FILL THE CONTAINER.
B. INJECTION
1. Turn the A/C system and engine off!!
2. Connect injector to the low side service port of A/C system. Hold body of injector. Use ( I ) starting line on handle end
as a guide. Turn handle clockwise to inject 1 application of oil.
(Approximately 3 1/4 turn(s) for 1/4 oz oil).
3. Disconnect injector from the system and clean any excess oil left around the service port
(4)
(5)
(2B)
(2A)
(1)
(2)

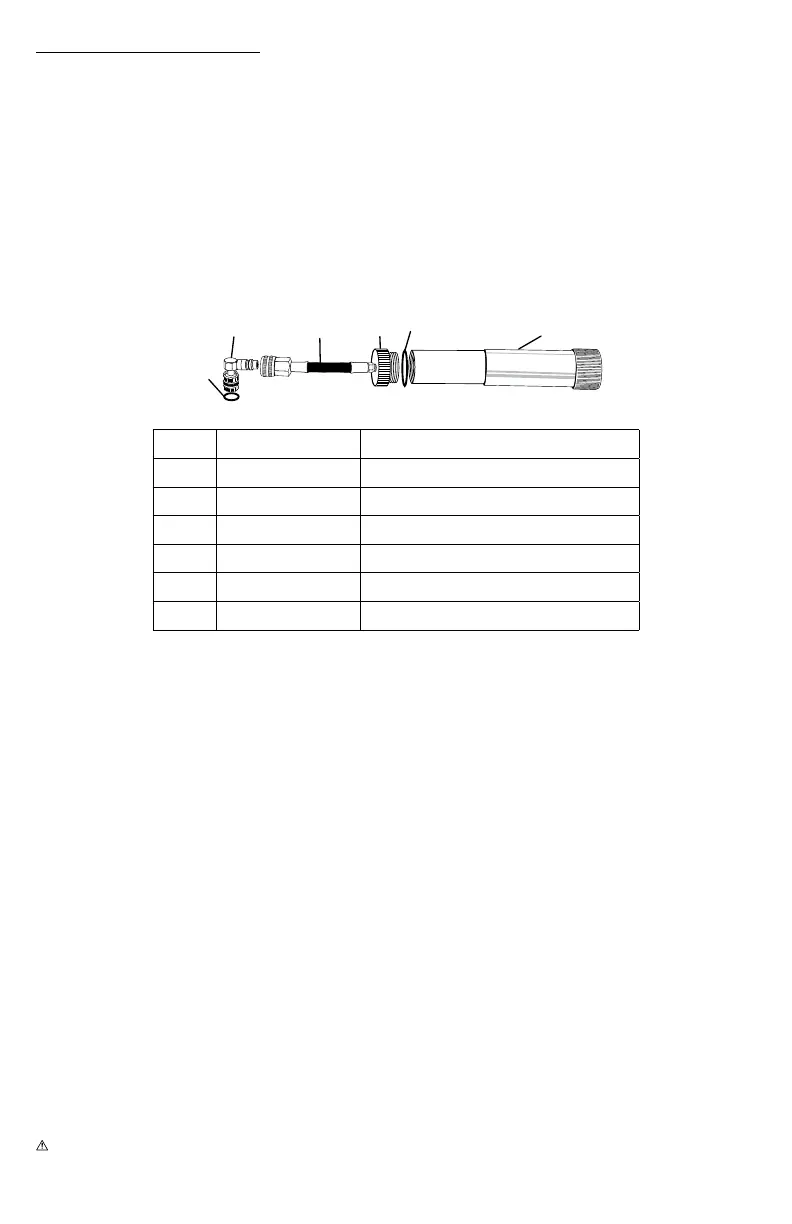

(Fig.) Part # Description
(1) 53223-001A Dye Injector Body
(2) 53223-001B Cap (only)
(2A) 53223-001C O-Ring
(2B) 53223-001D Hose Assembly
(4) 90333-UV R12 (1/4” FL) Shut-Off Valve
(5) 90336 O-Ring for 90333-UV
For parts or service contact the service department: 1-888-825-6989
