radius block and check the angle of the tube bend using a “square” or protractor.
5) Radius block is removed from the ratchet bar by “wiggling” and pulling block away

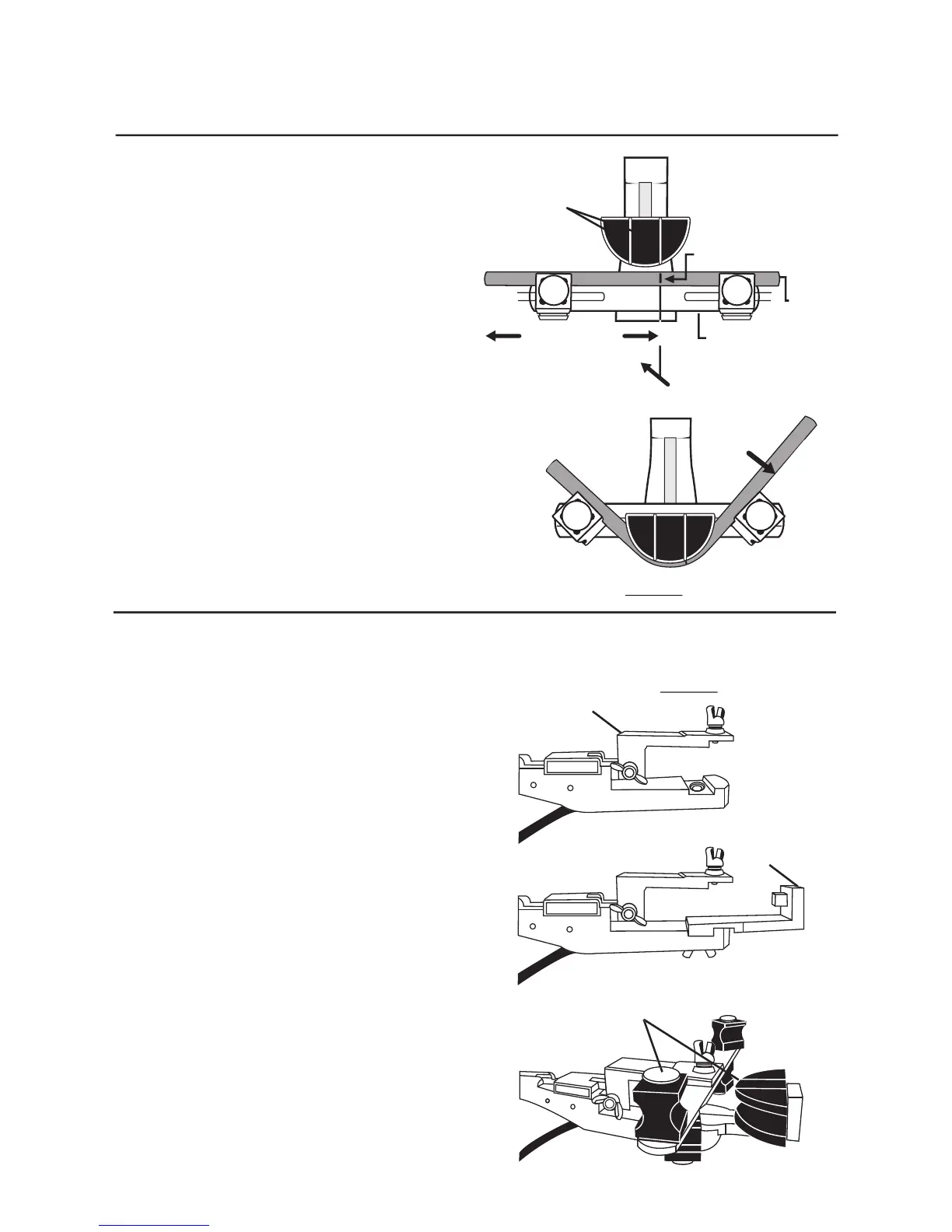

MAKING 90˚ OFFSET BENDS (FIGURE 2)
1) Mark the required length from the end
2) Place the tube in the radius block (2)
with the measured mark aligned with a
raised guide line on the face of the
radius block. If the measured end of
the tube is on the right side of the
bender, use the raised left side guide
line. If the measured end of the tube
is on the left side of the bender, use the
raised right side guide line.
SETUP INSTRUCTIONS FOR REVERSE DIRECTION
BENDING ADAPTER (70070-RD)
BENDS: 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 7/8” O.D. TUBING
1) Attach adapter (3-1) to bar on bender.
2) Install adapter (3-2) on bender body
3) Install desired crossbar and radius block (3-3)
