To attach the battery pack (fig 1)
WARNING!
To avoid the possibility of accidental
starting, always take care not to
activate the trigger switch when you are
attaching the battery pack or performing
other adjustments to the tool.
1. Make sure that the angle grinder is turned off.
2. Align the raised rib on the battery pack with the grooves on the bottom of the tool, and then attach
the battery pack to the angle grinder.
When attaching the battery pack to the tool, make sure that the raised platform on the
pack aligns with the grooves on the bottom of the tool and that the latches snap properly into place.
Improper assembly of the battery pack can cause damage to internal components.
To detach battery pack (fig 1)
1. Make sure that the angle grinder is turned off.
2. Depress the battery-release button located on the front of the battery pack to release the battery
pack.
3. Pull the battery pack forward to remove it from the tool.

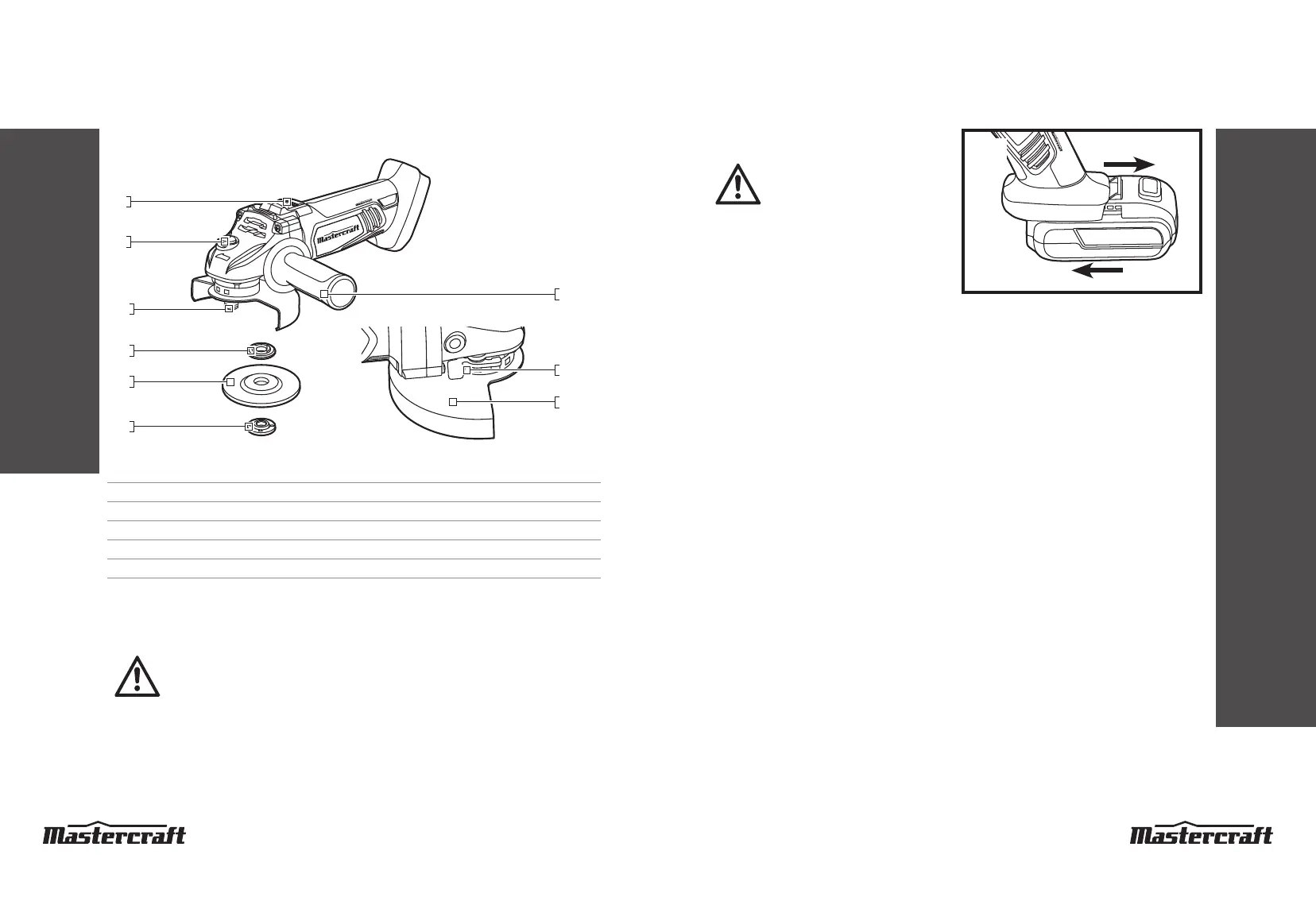

Know your tool
1
2
3
4
5
6
7
9
8
1 Switch button 6 Grinding wheel
2 Spindle-lock button 7 Outer flange
3 Spindle 8 Guard-adjusting lever
4 Side handle 9 Wheel guard
5 Inner flange
Before attempting to use this tool, become familiar with all of its operating features and safety
requirements. For optimum performance and safety, read the following operating instructions carefully
before using.
WARNING!
Do not allow familiarity with the angle grinder to cause a lack of alertness. A fraction of a
second of carelessness is enough to cause severe injury.
OPERATING INSTRUCTIONS
DESCRIPTION
fig 1
Attach
Detach
