18

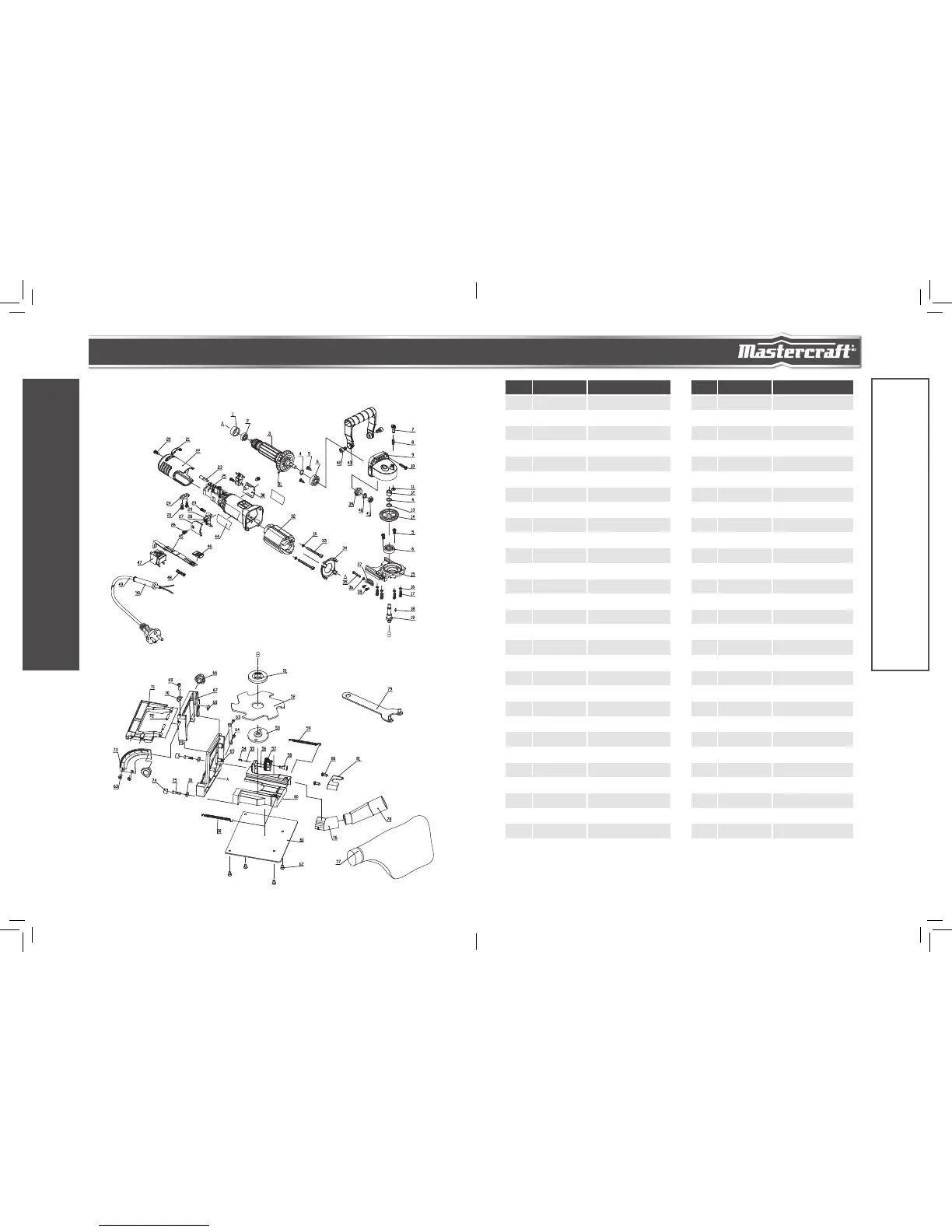

EXPLODED VIEW
No. Part No. Description No. Part No. Description
1 5481064001 Bearing set 31 5481064031 Roller
2 5481064002 Bearing 32 5481064032 Stator
3 5481064003 Armature 33 5481064033 Screw
4 5481064004 Check ring 34 5481064034 Fan guide
5 5481064005 Screw 35 5481064035 Screw
6 5481064006 Bearing 36 5481064036 Nut
7 5481064007 Stop pin 37 5481064037 Depth base block
8 5481064008 Spring 38 5481064038 Screw
9 5481064009 Gear box 39 5481064039 Pinion
10 5481064010 Screw 40 5481064040 Spring washer
11 5481064011 Check ring 41 5481064041 Nut
12 5481064012 Bearing 42 5481064042 Screw
13 5481064013 Spring washer 43 5481064043 Front handle
14 5481064014 Gear 44 5481064044 Label
15 5481064015 Front cap 45 5481064045 Switch drawbar
16 5481064016 Spring washer 46 5481064046 Switch button
17 5481064017 Screw 47 5481064047 Switch
18 5481064018 Wood ruff-key 48 5481064049 Spring
19 5481064019 Spindle 49 5481064050 Plug
20 5481064020 Screw 50 5481064051 Cord armor
21 5481064021 Cover 51 5481064052 Flange
22 5481064022 Back cap 52 5481064053 Grinding wheel
23 5481064023 Light 53 5481064054 Flange unt
24 5481064024 Cord clamp 54 5481064055 Screw
25 5481064025 Housing 55 5481064056 Spring
26 5481064026 Screw 56 5481064057 Steel ball
27 5481064027 Right brush cover 57 5481064058 Setting wheel
28 5481064028 Brush 58 5481064059 Screw
29 5481064029 Brush holder 59 5481064060 Spring
30 5481064030 Left brush cover 60 5481064061 Slide plate
If the problem remains unsolved after performing the checks described above, call the toll-free helpline
at 1-800-689-9928.
PARTS LIST
