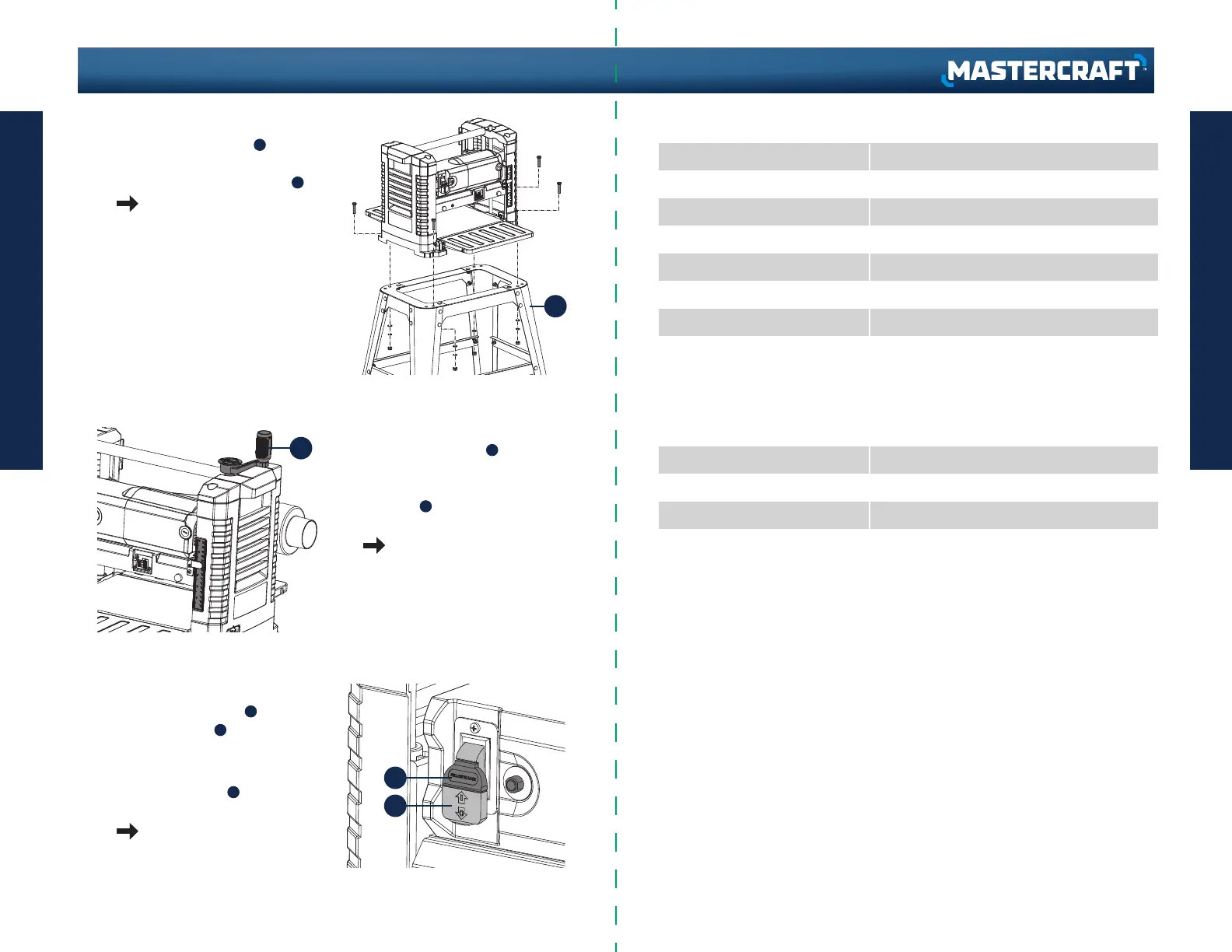

• Carefully place the planer on the
top of the work stand . Align
holes on the planer’s base with
the holes on the work stand .
see page 23
1
1
2
2
1
1
(1)
To turn your planer on:
• With the switch key inserted
into the switch , lift the switch
to turn it on.
To turn your planer off:
• Press the switch down to turn it
off.
see page 27
(3)
• Turning the cutter head
adjustment handle clockwise
lowers the cutter head. Turning
the cutter head adjustment
handle counter-clockwise
raises the cutter head.
see page 25
2
2
(2)
1
2
2
5
SPECIFICATIONS
4
QUICK START GUIDE
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 055-6792-8 | contact us 1-800-689-9928
SPECIFICATIONS
Motor
Blade speed
Number of blades
Cuts/inch (CPI)
Feed speed
Min cutting length
Max cutting width
Max cutting depth
Range of stock height
In-feed/out-feed table size
Dust port size
Weight
120 V, 60 Hz, 15 A
10,000 RPM no load
2
57.7
8 m/min
5" (127 mm)
12-1/2" (317.5 mm)
3" (7.6 cm) wide stock; 1/8" (3 mm),
6" (15 cm) wide stock; 3/32" (2.4 mm),
9" (22.8 cm) wide stock; 1/16" (1.6 mm),
12 1/2" (31.8 cm) wide stock; 1/32" (0.8 mm)
3/16–6" (5–15.3 cm)
12 7/8" x 6 3/4" (32.8 x 17.2 cm)
2 1/2" & 4"
71 lb 8 oz (32.5 kg)
