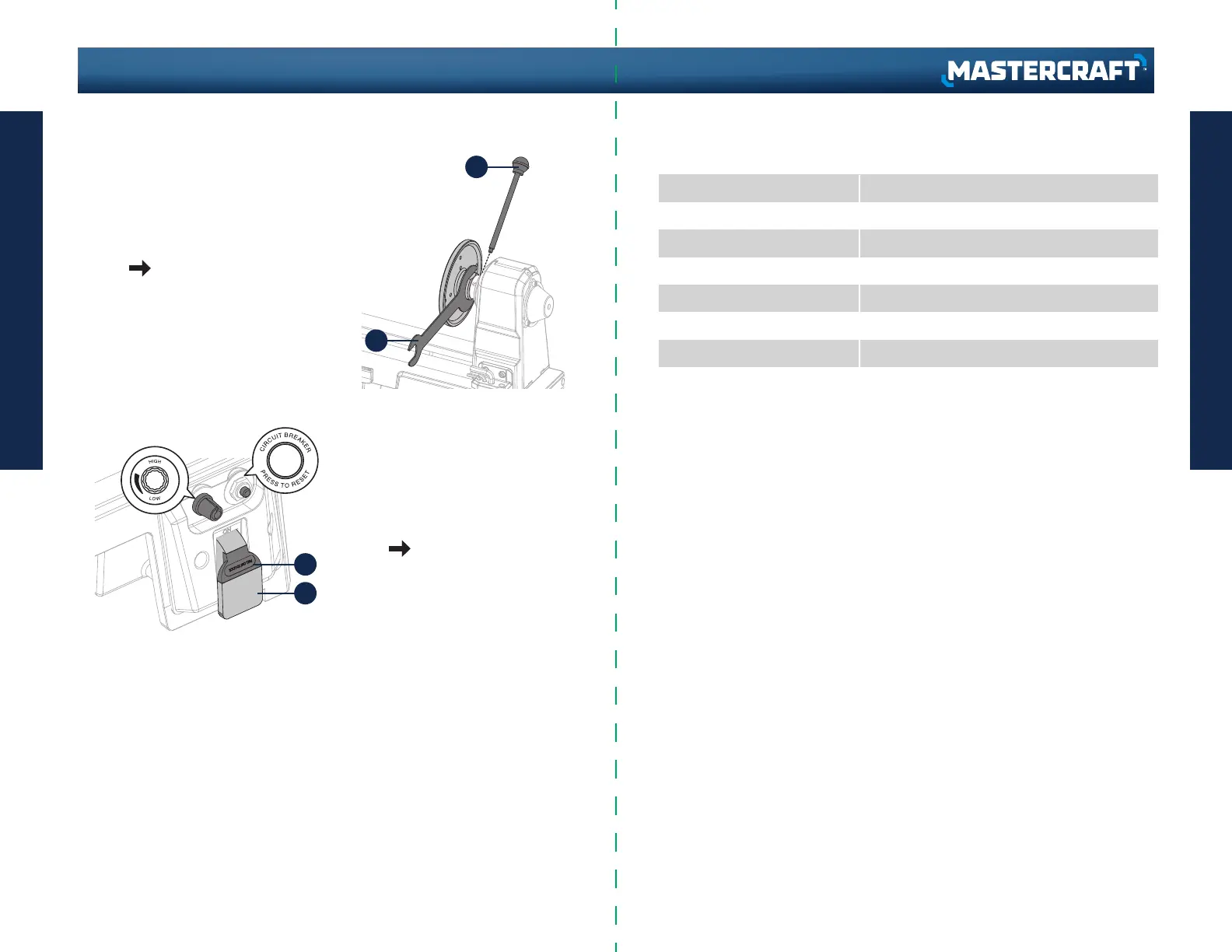

(1) • Place the wrench (2) over the
flats on the faceplate.
• Insert the tip of the push-out rod
(3) into one of the slots in the
side of the headstock spindle.
see page 19
(2) The On/Off switch (2) controls
application of electrical power to
the lathe’s motor. The safety key
(3) must be placed in the switch
before the switch will operate.
see page 22
2
3
3
2
5
SPECIFICATIONS
4
QUICK START GUIDE
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 055-6793-6 | contact us 1-800-689-9928
SPECIFICATIONS
Motor
Speeds
Distance between centres
Swing-over bed
Drive spindle
Tailstock spindle travel
Headstock/tailstock internal taper
Weight
120 V AC, 60 Hz, 3.3 A
500–3500 RPM
13" (33 cm)
8" (20.3 cm)
1 1/4" (3.2 cm), 8 TPI thread
2" (5 cm)
No. 2 MT
55 lb (25 kg)
