AVIARA OWNERS MANUAL / 124
Switches

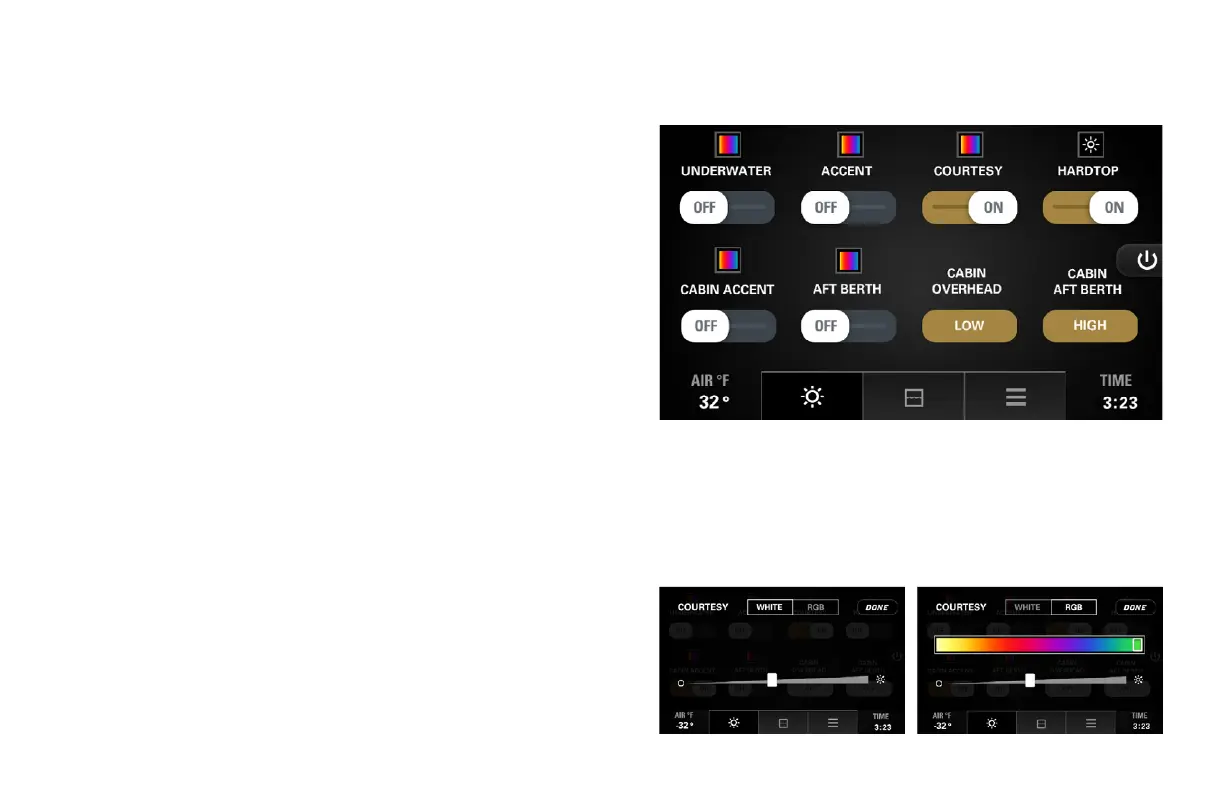

To turn a switch On or Off, slide the bar to the right (On,
colored gold) or left (Off, colored gray).
The Courtesy and Hardtop lights can be designated as either
White or RGB if equipped. Turn either of those On, then touch the
light square above the name to see one the following screens:
The Aviara 5” display is designed for instrumentation and
control on electronically controlled engines communicating
via SAE J1939 and NMEA 2000. The multimedia display
enables boat operators to view audio les, switches and lights
information along with Bluetooth connections and engine fault
conditions from the cabin. Included with this solution is the
PV1100 touch screen unit.
Care and
Maintenance
General maintenance is not required; however, a soft cloth can
be used for cleaning the unit. Window cleaner or alcohol can
also be used to clean the glass portion of the display. Do not
use harsh or abrasive cleaners on the unit.
