AVIARA OWNERS MANUAL / 172
To operate the fold down terraces, follow the
steps below:
NOTE: The port and starboard terraces operate independently. Follow
the steps below for each side to lower the terraces.
1. Ensure that the engines are turned off.
2. Press and hold TERRACE MASTER POWER button on switch
panel for 1.3 seconds. The keypad will make a single audible
beep, then beep twice after 1.3 seconds. Additionally an
indicator light will illuminate when the master power is
activated. This indicates that power is going to the fold down
terraces and that it can be operated. After activating the
master power, the terrace will be operable for 10 minutes.
If while pressing the TERRACE MASTER POWER button
the keypad rapidly beeps and light rapidly flashes, one of
the conditions from step one (1) has not been met and no
operation will occur.
3. To deploy the terrace, press the TERRACE DOWN button
until fully deployed. To raise the terrace, press the TERRACE
UP button until the terrace is fully raised and locked. At any
point, removing your finger from the keypad button will stop
the terrace where it is.

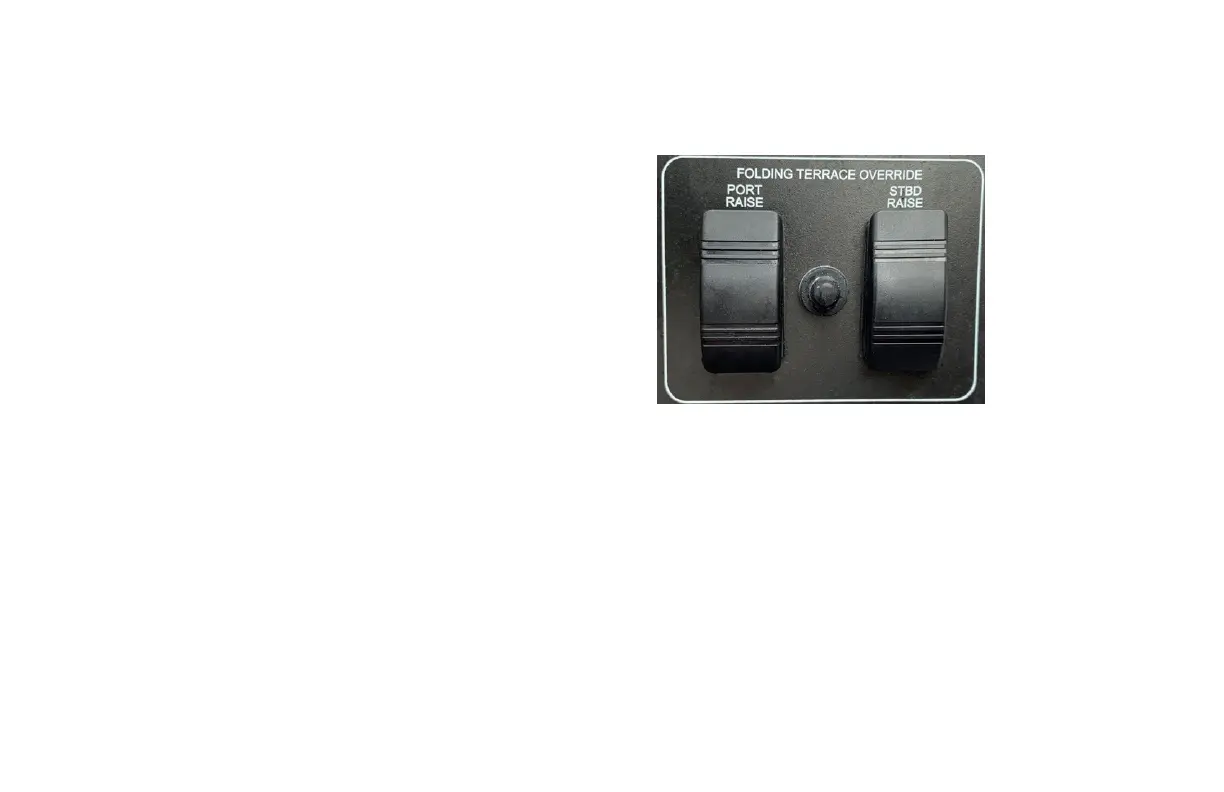

4. Additionally, should the TERRACE MASTER POWER switch
fail for some reason, the terrace may be raised using the
FOLDING TERRACE OVERRIDE RAISE switch mounted
adjacent to the battery switches in the rear sunpad storage
hatch (see image below).
NOTE: If the TERRACE MASTER POWER button’s indicator light is on,
the buttons for raising or lowering the terrace are active and will
remain so for 10 minutes or until you press and hold the master power
button again, or any of the above 3 conditions are no longer met.
NOTE: Due to safety, when the terrace(s) is deployed, the engines
will not start. There is an override however should the terrace have
a failure and it is necessary to get back to shore. See Override
Operations in the following section if starting engines is required
without retracting the terraces. Platform, terrace and or engine
damage may occur if not fully retracted and locked.
