2023 OWNER’S MANUAL
/
120
Depth / Position Settings
The Position Format selection displays positions on the map in the
following three GPS formats:
• Degrees, Minutes and Decimal Minutes (i.e., 79°58.93172W)
• Degrees, Minutes, Seconds and Decimal Seconds (i.e.,
40°20’50.93172)
• Degrees and Decimal Degrees (i.e., 79.982195)

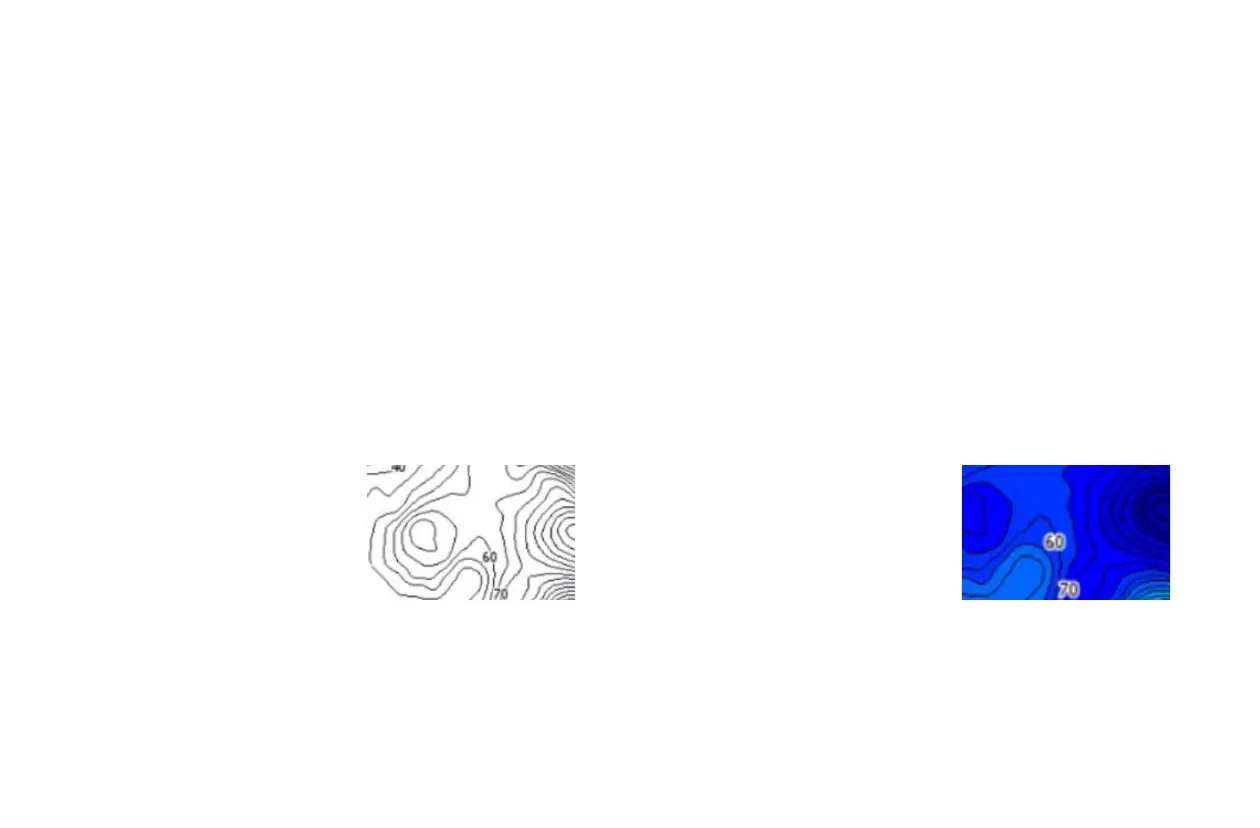

Depth Contour
The Depth Contour setting allows an alarm to be displayed when
the boat is detecting a water depth at or above the depth selected.
The map will display depths within the lines as shown below.
Choose a Depth Contour to be displayed by touching a preferred
depth:
• Off
• 6 feet
• 16 feet
• 33 feet
• 66 feet
Safety Contour
The Safety Contour will change the map’s display color in areas of
water that are at or deeper than the selected depth. These depths
will be blue while depths shallower than the selected depth will
be white. Choose a Depth Contour to be displayed by touching a
preferred depth:
• Off
• 6 feet
• 16 feet
• 33 feet
• 66 feet

MasterCraft NXT22 2023 Specifications

General

Seating Capacity	14
Fuel Capacity	49 gallons
Engine	Ilmor
Engine Options	Ilmor 6.2L
Surf System	Yes
Tower	Yes
