311
/
2023 OWNER’S MANUAL
GAS ASSISTED SEAT LIFT
Models
X, XT, and Xstar models as an option
Purpose
Allow the helm seat to raise and lower ~3” to accommodate
dierent operator seat height preferences.
Location
Helm Seat
Operation

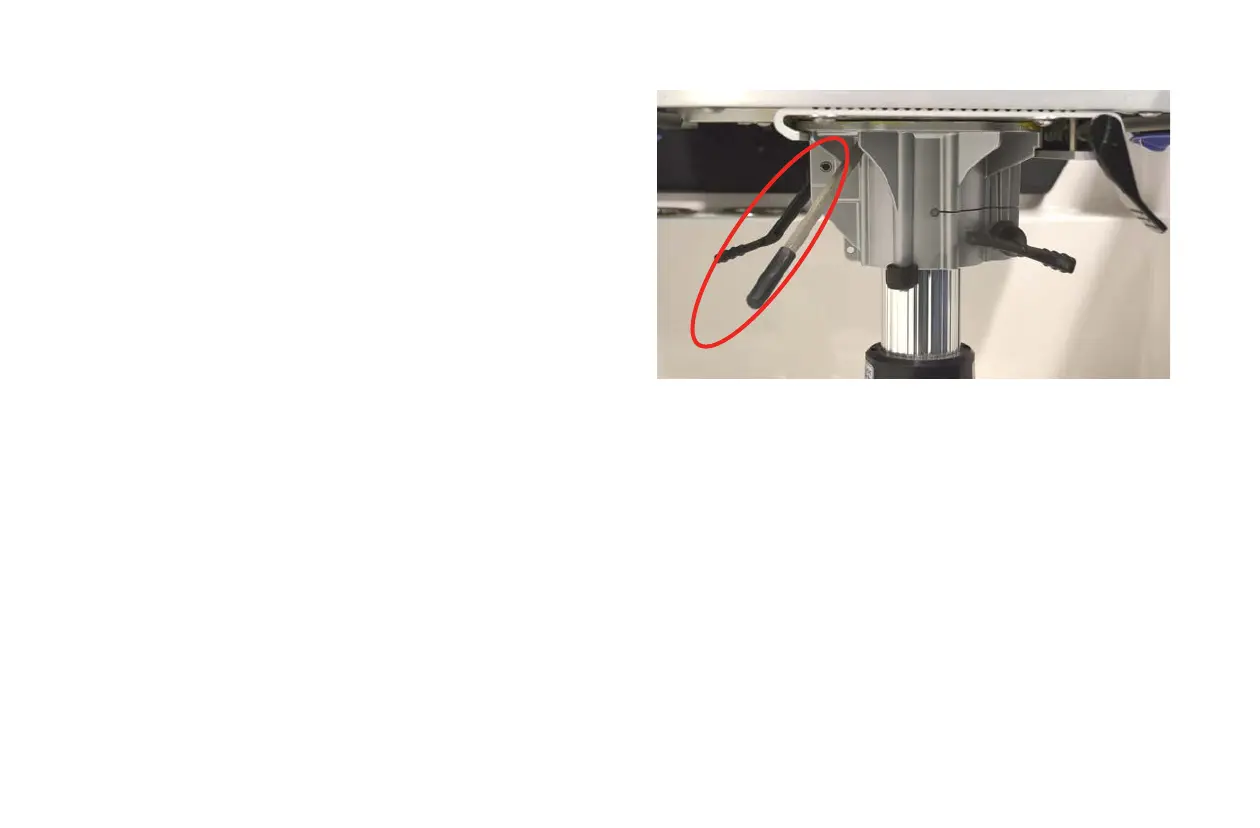

Lift the handle on the seat pedestal located on the outboard side
of the pedestal (circled in red). To raise, lift handle and remove
body weight and the seat will extend up. To lower, lift handle
while applying weight to the seat to compress the gas assisted
mechanism inside. Release handle between the topmost and
lowest position to set and hold the seat height.
Troubleshooting
If the gas assisted seat lift will not operate properly, take the boat
to an authorized MasterCraft dealer for repair.
