2023 OWNER’S MANUAL

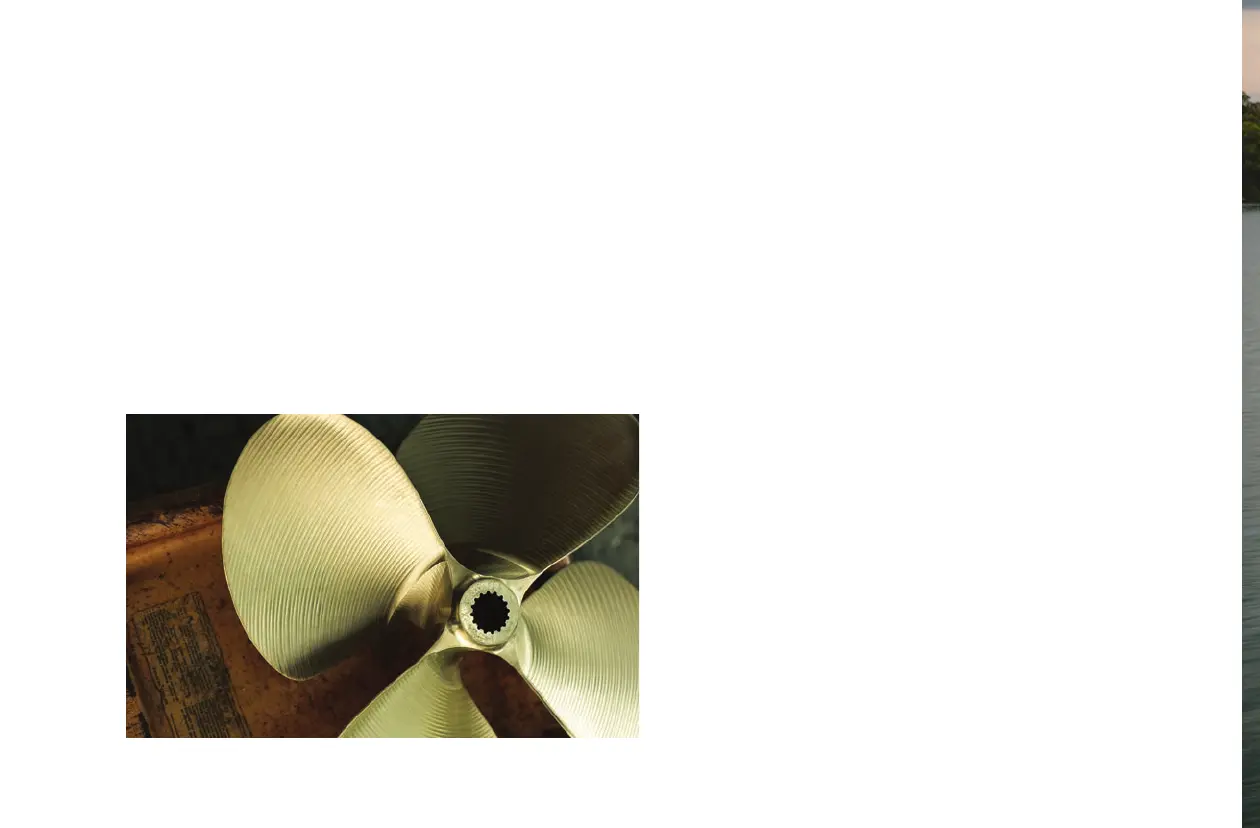

CHANGING PROPELLERS
1. Ensure the engine is OFF and the engine safety starting switch is
disconnected.
2. Remove and discard the cotter pin.
3. Remove the propeller nut with a 1 1/8” wrench.
4. Tap the center hub of the propeller with a rubber mallet to release
the propeller. Inspect the shaft and propeller splines for damage.
5. Thoroughly clean and apply a light coat of waterproof marine
multipurpose grease to the splined area of the shaft and propeller.
6. Align the splines and carefully install the propeller onto the shaft.
DO NOT FORCE THE PROPELLER INTO PLACE. If necessary,
gently tap the propeller into place with a rubber mallet.
7. Install the propeller nut and tighten it into place to 50 lb.-ft. with a
torque wrench.
8. Install a new cotter pin and bend the ends around the shaft to lock
the propeller on the shaft.
