2021 OWNERS MANUAL / 146

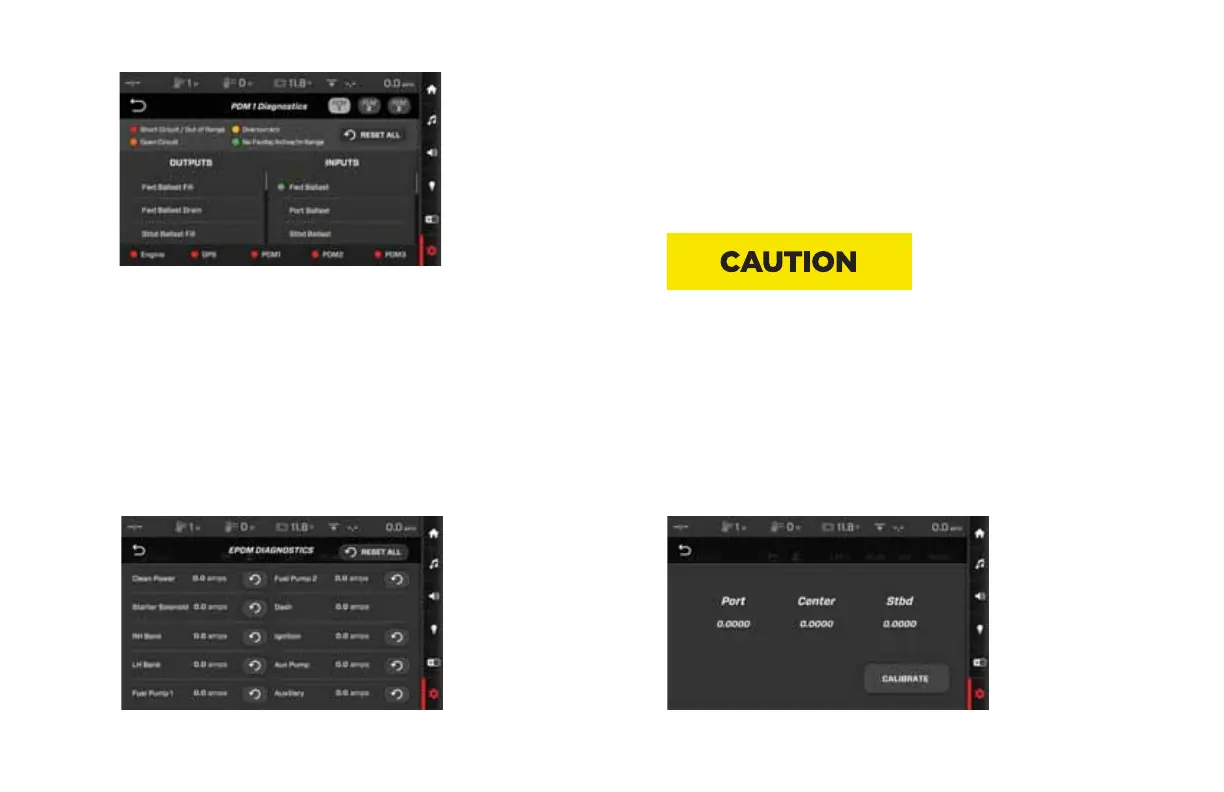

To reset a tripped digital switch, press RESET next to the system
with a fault. To reset the entire EPDM, press RESET ALL on the bot-
tom right portion of the screen.
If a digital switch continues to trip multiple times in one outing, it is
a sign of a larger electrical issue and the boat should be taken to an
authorized MasterCraft dealer for diagnosis and repair.
The EPDM and digital switches are designed to protect the engine
and electrical system from damage. If a switch has tripped and
continues to trip even after resetting the EPDM, it may be a symp-
tom of a larger electrical issue, and the boat should be taken to an
authorized MasterCraft dealer for diagnosis and servicing.
Tab Diagnostics
Tab Diagnostics will provide a method to recalibrate the Tabs by
touching Calibrate.
erating information. Amperage draw and the status of internal dig-
ital switches are displayed for each engine function. Digital switch
status is designated by either a green, red or gray indicator.
• A green indicator denotes that the digital switch is
functioning properly.
• A red indicator denotes that there is a problem with the digital
switch and it has tripped.
• A gray indicator denotes that the digital switch is currently un-
used or not receiving power.
2021MCOwnerManualFINAL.indd 146 8/26/20 1:52 PM
