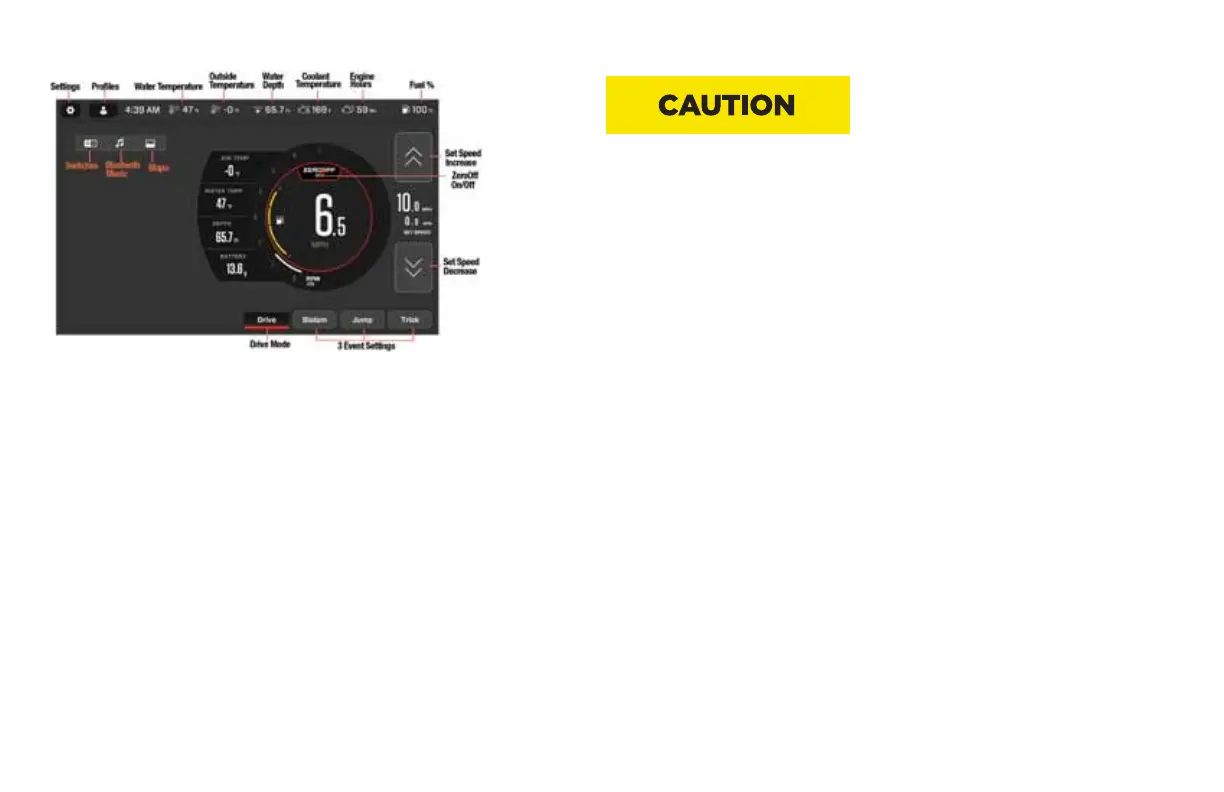

The ProStar 11” video touch screen is a multi-functional tool that
provides GPS tracking, multi-media display, cruise control, rider
profiles, and enables equipment operators to view a wide range of
engine, ballast, transmission parameters and service codes.
CARE AND MAINTENANCE
Only basic cleaning should be required to maintain the 11” video
touch screen at its best. A soft cloth can be used for cleaning the
unit. Typical window cleaner or rubbing alcohol can also be used to
clean the glass portion of the video screen display. To avoid dam-
age that is not covered under warranty, do not use harsh or abrasive
cleaners on the unit.
Avoid contact between sharp or hard objects and the video touch
screen because this can result in scratches or other permanent
marks on the screen.
BASIC NAVIGATION FEATURES
All features are easily accessible through the touch point com-
mands and menus.
Touch Point Commands
After the desired screen is accessed, navigation within the screen
is controlled with Touch Point Commands. These are executed by
touching the screen in areas that are outlined with a highlighted bezel.
In addition, there are areas where sliding a finger up or down can
adjust settings. For example, on the Ballast screen, sliding the finger
on the inside of the screen tank area adjusts the ballast setting.
