2023 OWNER’S MANUAL
/
294

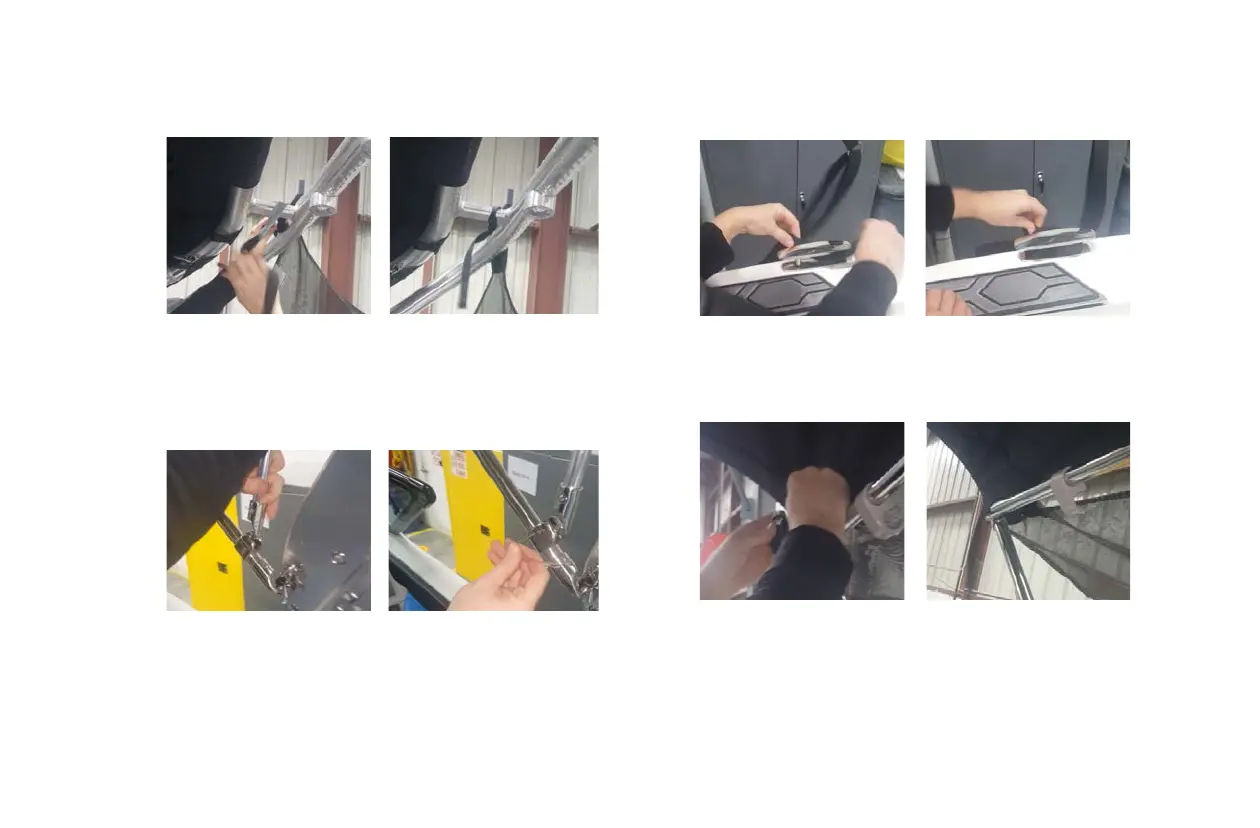

5. Locate the aft slip lock on the bottom corner of the mesh. Buckle it
around the outermost cross-member of the tower tube.
8. Locate the stern cleat strap. Attach it to the stern cleat by drawing
the looped section under and around the cleat.
6. Locate the jaw slide on the foremost bimini arm. Remove the pin
from the jaw slide.
7. Attach the center support pole to the jaw slide. Navigate the
support pole to the jaw slide on the bimini arm and slip the ball joint
into the jaw slide. Reinsert the pin to lock in place.
9. Locate the other slip lock and buckle the ends around the top
foremost corner of the bimini frame.
10. Find the bow cleat strap. Attach to the bow cleat.
11. The side shade is now installed. Repeat the same installation
process for the other side of the boat.
