MasterCraft XT20 User Manual

Trim

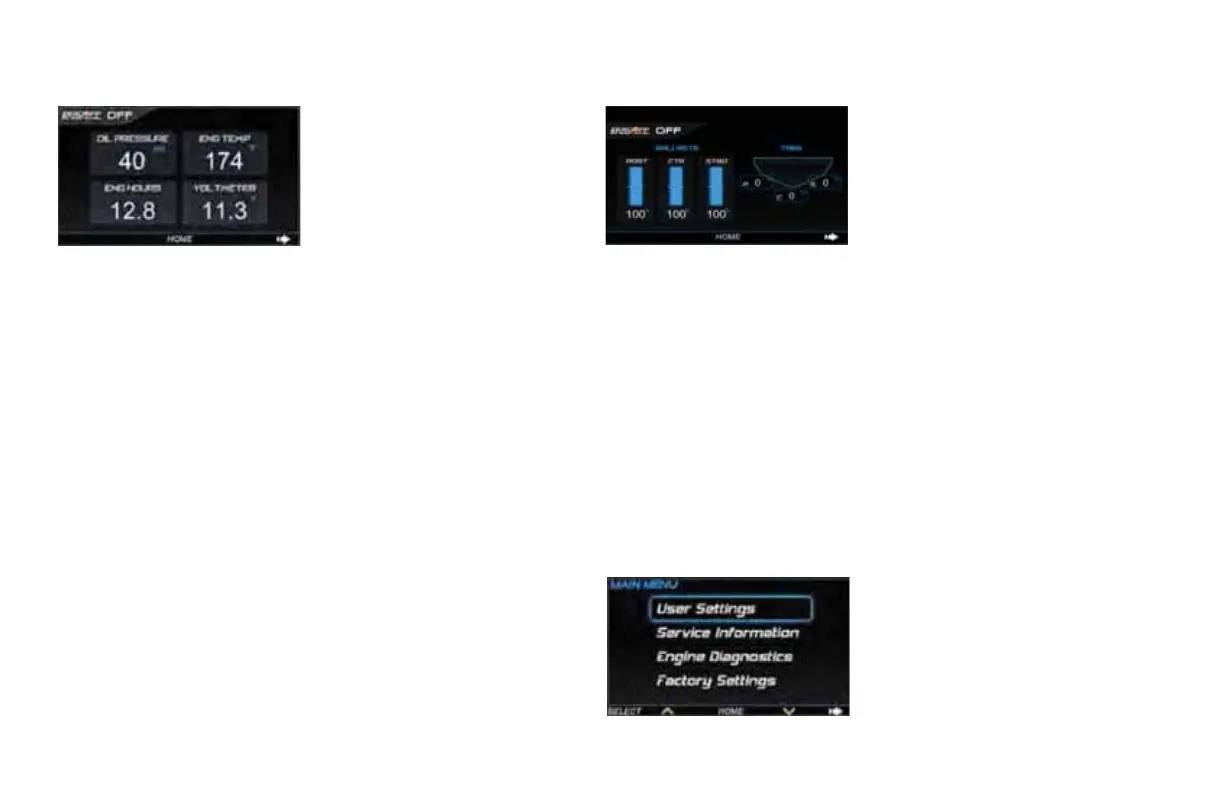

From the Home screen, the Trim screen can be accessed by press-
ing the Display Key under TRIM in the Menu Bar.
Trim Screen Features
• Port NXT Wake Shaping Position
• CTR Attitude Adjustment Plate Position
• STBD (Starboard) NXT Wake Shaping Position
• Cruise ON or OFF
Press the HOME key to return to Home or press the ARROW key to
scroll to other screens.
Main Menu
Status
From the Home screen, the Status screen can be accessed by
pressing the Display Key under STATUS in the Menu Bar.
Status Screen Features
• Cruise ON or OFF
• Oil Pressure
• Engine Temperature
• Engine Hours
• Voltmeter
Press the HOME key to return to Home or press the ARROW key to
scroll to other screens.
2021MCOwnerManualFINAL.indd 197 8/26/20 1:52 PM

MasterCraft XT20 Specifications

General

Length	20 ft
Beam	98 in / 2.49 M
Seating Capacity	11 people
Engine	Ilmor 6.0L MPI
Engine Options	Ilmor 6.0L GDI
