5. Move to the aft end of the shade. Stretch the canvas aft so that
the metal rings can be mounted on the tension poles.
6. Mount the metal rings around the tension poles. Pull the tension
pole slightly towards you to make mounting the metal ring easier.

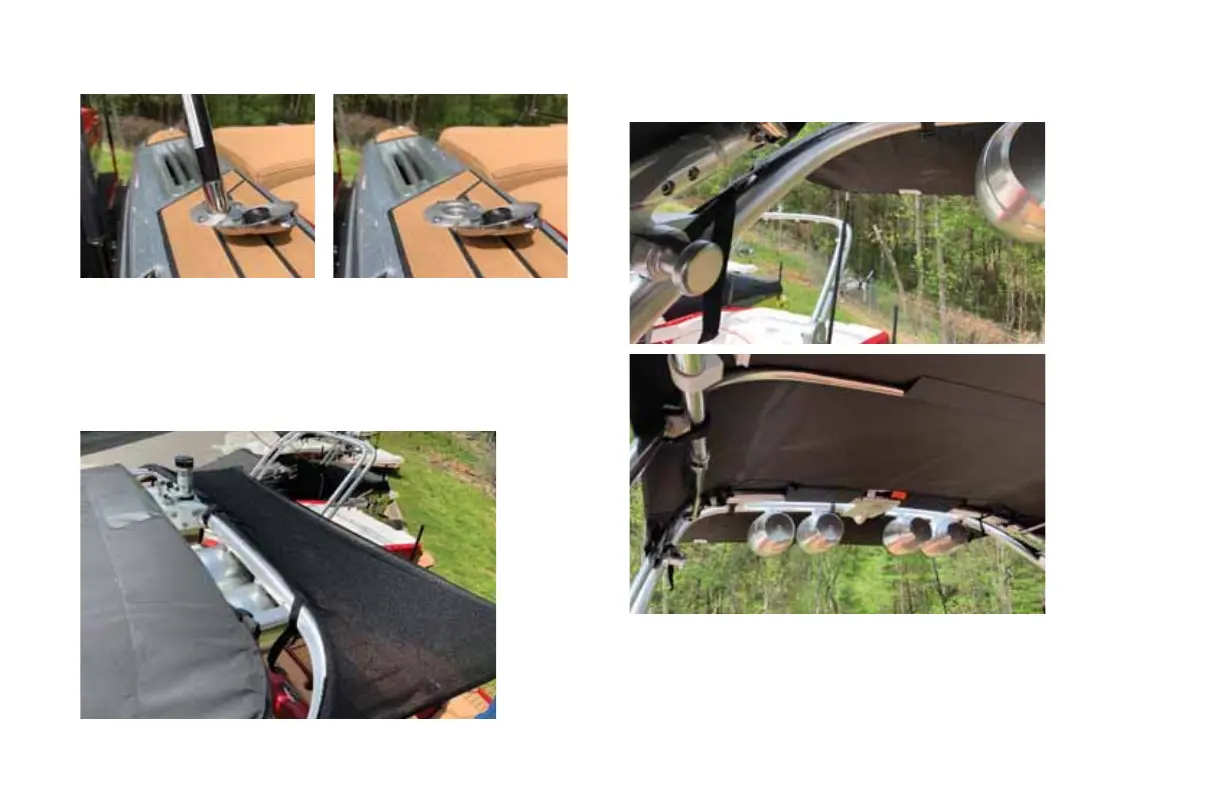

4. Attach the sunshade to the tower using the buckles that are
provided on one end of the sunshade. Use the images below as a
guide, and note that the two widest buckles wrap around the surf
tow point. With the outside straps in place, the rest will line up
where they mount.
2021MCOwnerManualFINAL.indd 291 8/26/20 1:53 PM
