Location
Mounted to the ProStar’s windshield.
Operation
For balance, it is suggested that operators have an additional
person assist when raising or lowering a bimini top.
To install the ProStar bimini:
1. Let the bimini canvas rest on top of the motor box with the legs
facing towards the bow of the boat.
2. With another person, line up the main bimini legs (the longest leg
on both sides of the bimini) with the mounting brackets on the
port and starboard sides of the windshield frame. Ensure that the

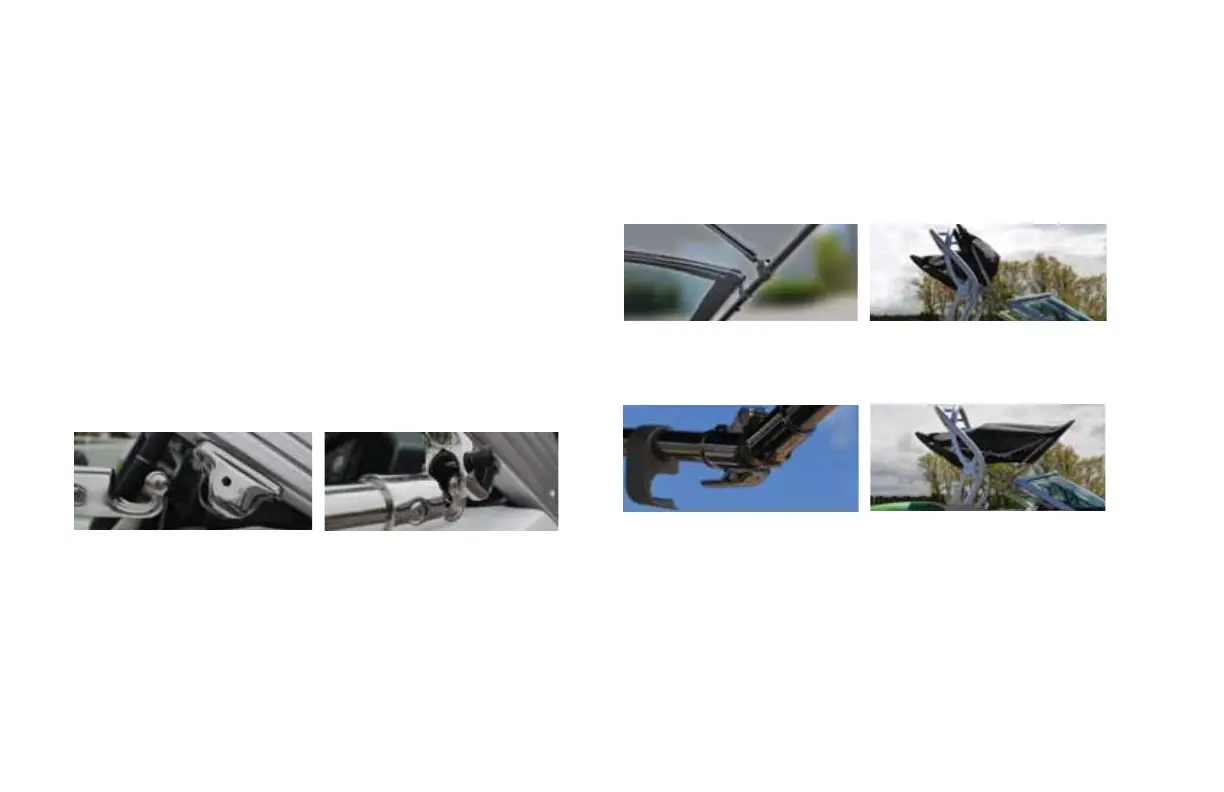

ball joint is facing upwards (see photo).
3. Insert the ball joint into the bracket and insert the pin to lock the
bimini legs to the mounting bracket. To ensure proper orientation
see the photo below.
4. The bimini should rest on the support poles supplied at delivery.
To deploy the ProStar bimini:
1. With the main bimini legs mounted to the windshield, lift the
topmost portion of bimini frame forward (the rest of the bimini
and frame will follow) until the main bimini leg touches the top
corners of the windshield.
2. With some upward pressure on the main bimini leg, slide the
secondary mounting ball joints down into the top of the
windshield’s corners.
3. Fully extend the bimini supports on either side until they lock into
place. Ensure that the bimini supports lock into place before
operating the boat.
To stow the bimini:
1. Unlock the bimini support legs.
2. With upward pressure on the main bimini leg, slide the secondary
mounting ball joint upwards on the bimini leg until it is clear of the
windshield.
3. Fold the bimini down to rest on the support poles.
4. Wrap the bimini boot cover around the bimini and zip closed.
