EPDM & ENGINE DIAGNOSTICS
Models
All X Series and XT Series models equipped with the HV450 Non-
Touch Screen
Purpose
The EPDM is a solid state engine fuse block designed for all
MasterCraft boats to make engine diagnostic checks easier and
more convenient for quick, on the water fixes.
Location

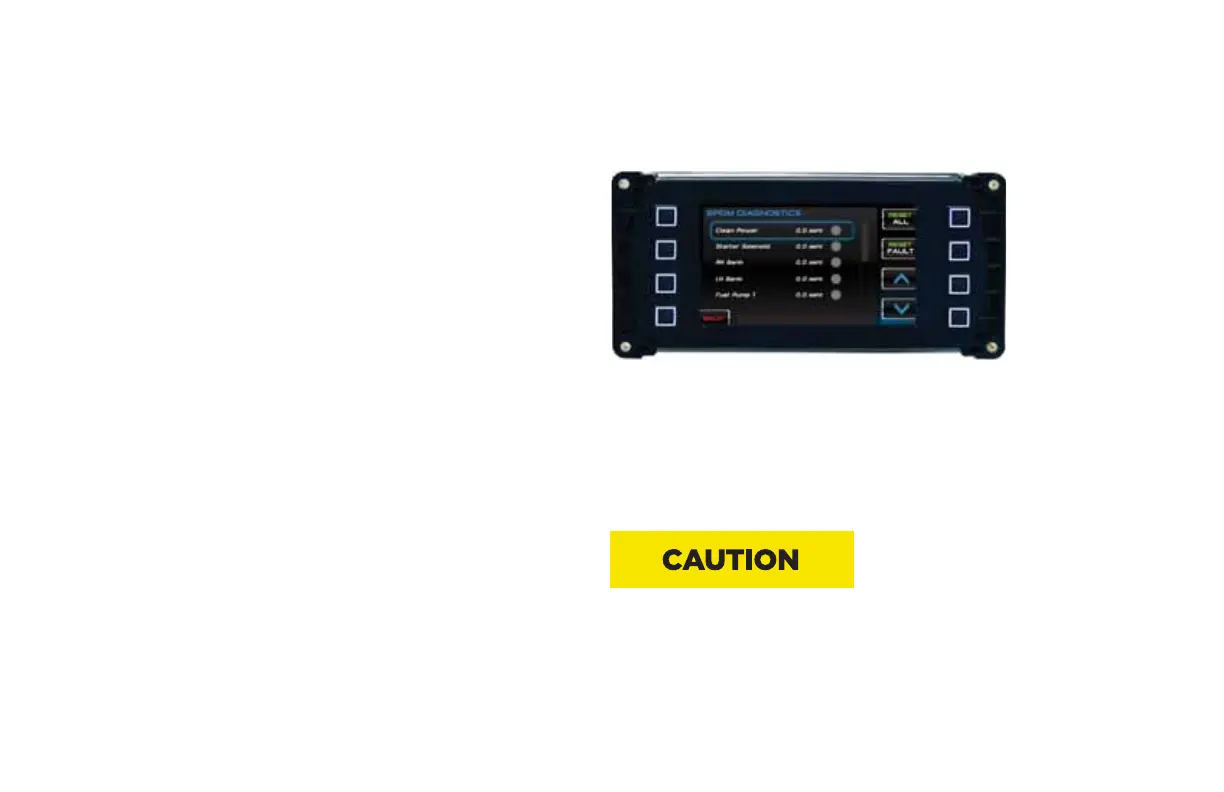

The EPDM screen is accessible via the HV450 Non-Touch Screen by
pressing the Menu Quick Access key to call up the Settings menu.
On the Settings menu, scroll down to and select EPDM Diagnostics.
Operation
The EPDM screen displays critical engine and electrical system
operating information. Amperage draw and digital switch status
are displayed on the EPDM screen for each engine function. Digital
switch status is designated by either a green, red or gray indicator.
• A green indicator denotes that the digital switch is
functioning properly.
• A red indicator denotes that there is a problem with the digital
switch and it has tripped.
• A gray indicator denotes that the digital switch is currently
unused or not receiving power.
To reset a tripped digital switch, press RESET next to the system
that has a fault. To reset the entire EPDM, select RESET ALL with the
hot key in the top right portion of the screen.
If a digital switch continues to trip multiple times in one outing, it is
a sign of a larger electrical issue and the boat should be taken to an
authorized MasterCraft dealer for diagnosis and repair.
The EPDM and digital switches are designed to protect the engine
and electrical system from damage. If a switch has tripped and
continues to trip even after resetting the EPDM, it may be a
symptom of a larger electrical issue, and the boat should be taken
to an authorized MasterCraft dealer for servicing.
2021MCOwnerManualFINAL.indd 161 8/26/20 1:52 PM
