Troubleshooting
If a hose will not connect to the flush connection, locate a dierent
hose. Garden hoses work fine as long as the hose end is not bent or
misshapen.
If water will not enter through the flush connection, disconnect the
hose and check that there is no obstruction in the connection area.
If there is no obvious reason for the system malfunction, take the
boat to an authorized MasterCraft dealer for assistance.
HEAD AND TOILET SYSTEM
Model
X26, as an option
Purpose
The on-board head provides convenience for longer outings.
Location
The head is located forward of the observer seat, accessible
through a door that opens into the walk-thru area to the bow.
Operation

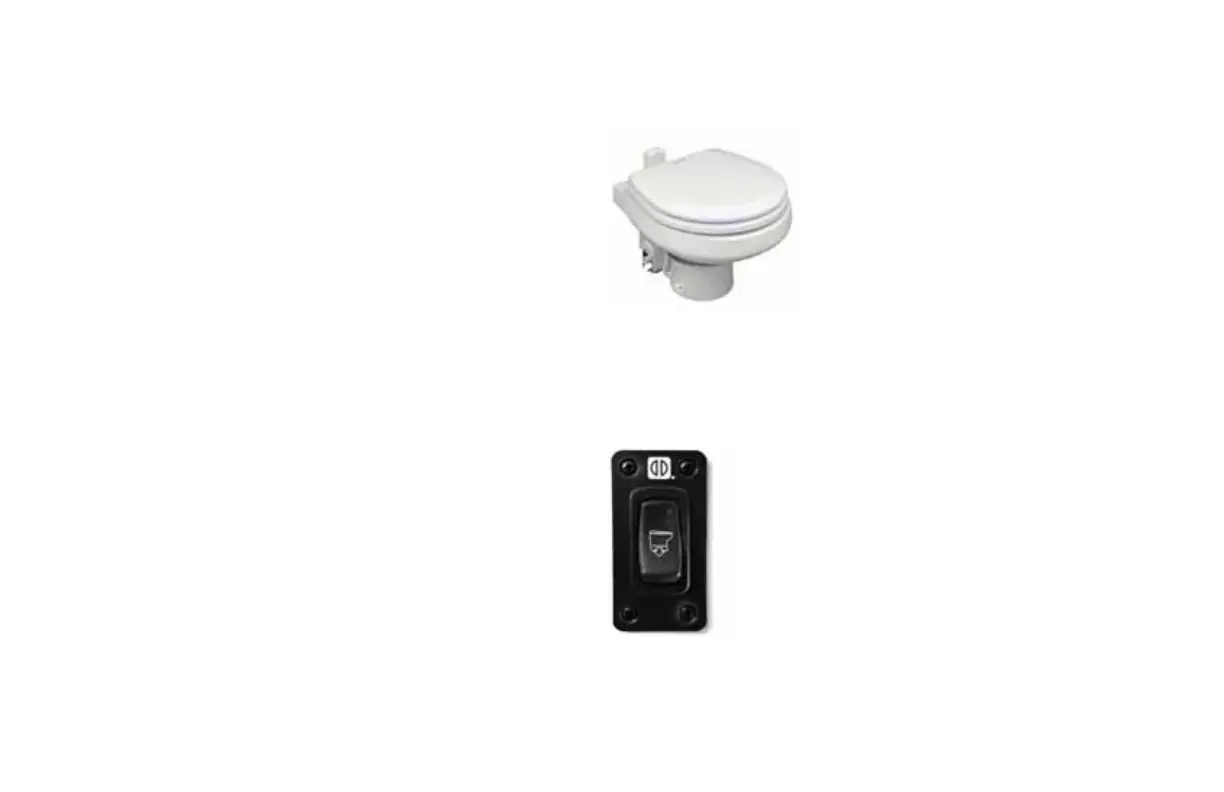

This boat is equipped with an Dometic Masterflush electric mac-
erating toilet. The Masterflush toilet has a rugged glass filled nylon
twin impeller that instantly draws in the euent into the macerating
chamber where the waste is pulverized by a 10-blade stainless steel
cutting wheel and ejects it into the waste tank on the starboard side
of the boat via a short run of premium sanitation hose.
Toilet system start-up
1. Turn on fresh water pump switch at the helm side panel.
2021MCOwnerManualFINAL.indd 293 8/26/20 1:53 PM
