2021 OWNERS MANUAL / 242
Operation
A digital switch on the lighting page of the dash mounted
touchscreen turns the lights on and o. Tap the switch to toggle the
lights ON and OFF. For boats equipped with the 4.3” touchscreen,
press the ACC hotkey and select Lighting. Toggle the lights on and
o by tapping the “Aft Facing” button.
Troubleshooting
If the lights do not operate, check the main circuit breaker panel to
determine if a circuit may have tripped. Although the docking lights
use LED bulbs which last for an extended period of time, even LED
bulbs will eventually burn out and need to be replaced.
TOWER DOME LIGHT
Models
Standard on ZFT7 towers, optional on ZFT4 towers.
Operation
A digital switch on the lighting page of the dual screen dash turns
the lights on and o. Tap the switch to toggle the lights ON and OFF.
Troubleshooting
If the lights do not operate, check the main circuit breaker panel to
determine if a circuit may have tripped. Although the docking lights are
LED lights which rarely burn out, it is possible. Take the boat to an autho-
rized MasterCraft dealer to have the bulb(s) replaced when necessary.
TRANSOM REAR FACING LIGHTS
Models
Optional on all X Series, XT Series and XStar models.
Purpose
Optional transom rear facing lights provide additional lighting to
the aft portion of the boat. They may be especially useful when
combined with the forward facing docking lights while pulling up to a
dock or into a boat slip after dark.

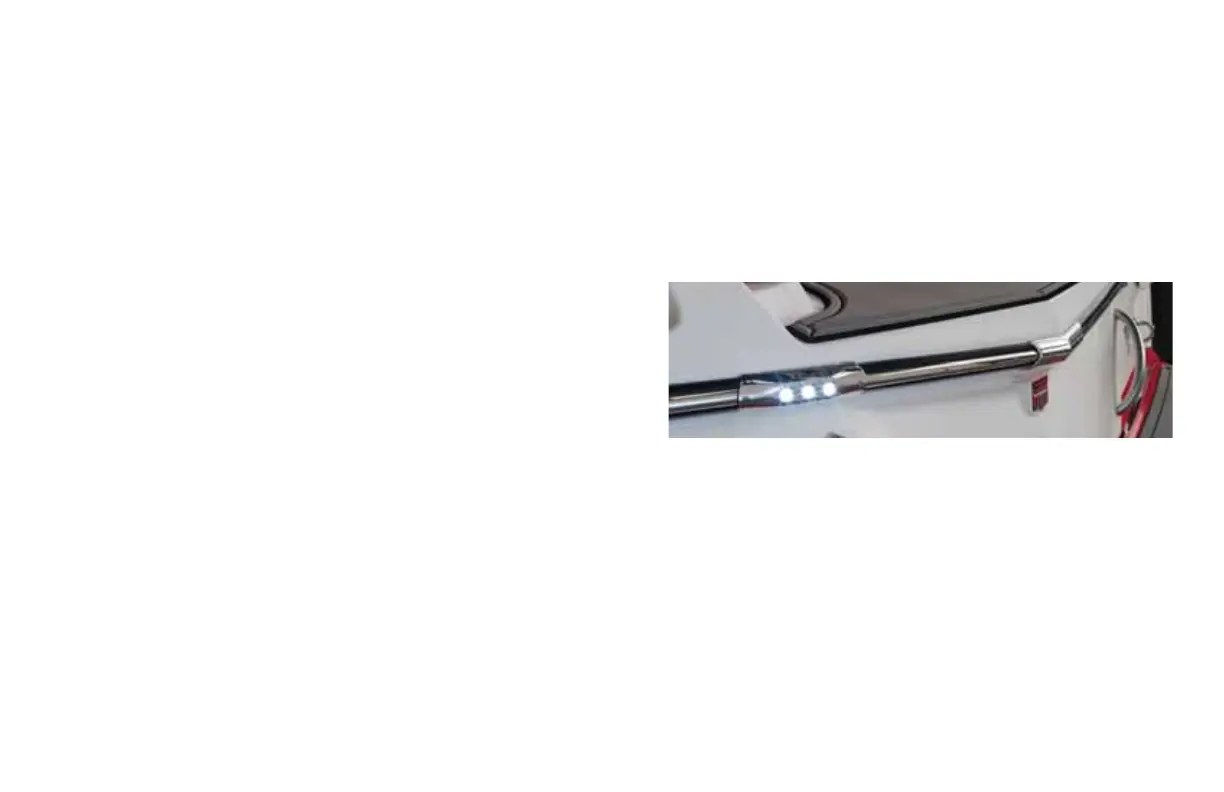

Location
Two sets of bright LED lights mounted to the transom rub rail.
