ASSEMBLY
5. Close the rear discharge door.
INSTALL THE MULCH PLUG
1. Remove the grass catcher.
2. Open the rear discharge door and hold it.
in the discharge chute.
4. Close the rear discharge door.
INSTALL THE SIDE DISCHARGE
CHUTE
Mulch
Plug
Rear Discharge Door
Handle
Pivot
Side
Discharge
Door
Side Discharge Chute
CAUTION
When you use the
side discharge chute,
• Do not install the grass catcher.
• Keep the mulch plug installed.
1. Open the side discharge door and hold it.
2. Line up the recesses of the side discharge
chute below the pivot.
3. Close the side discharge door.
SET THE BLADE HEIGHT
The machine can be set to different blade
heights.
1. Pull the height adjustment lever rearward
to increase the blade height.
2. Pull the height adjustment lever forward to
decrease the blade height.
Height
Adjustment
Lever

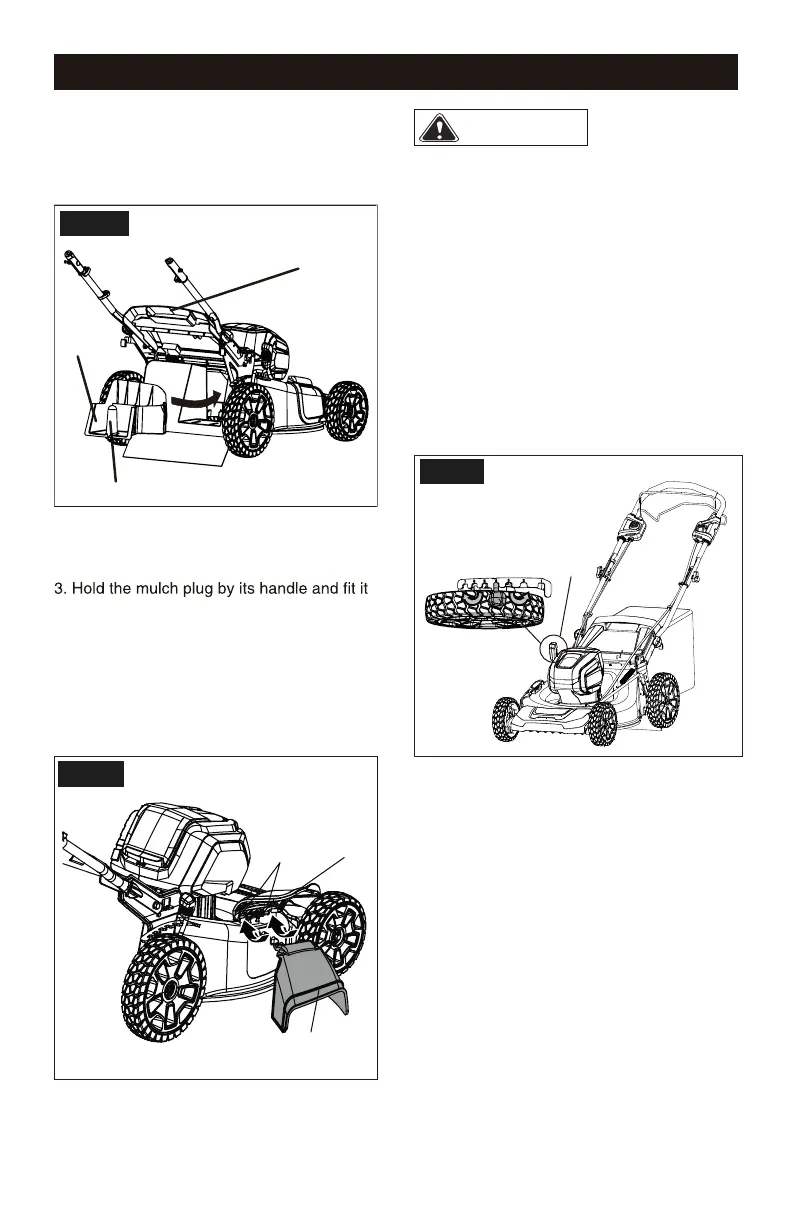

FIG. 4
