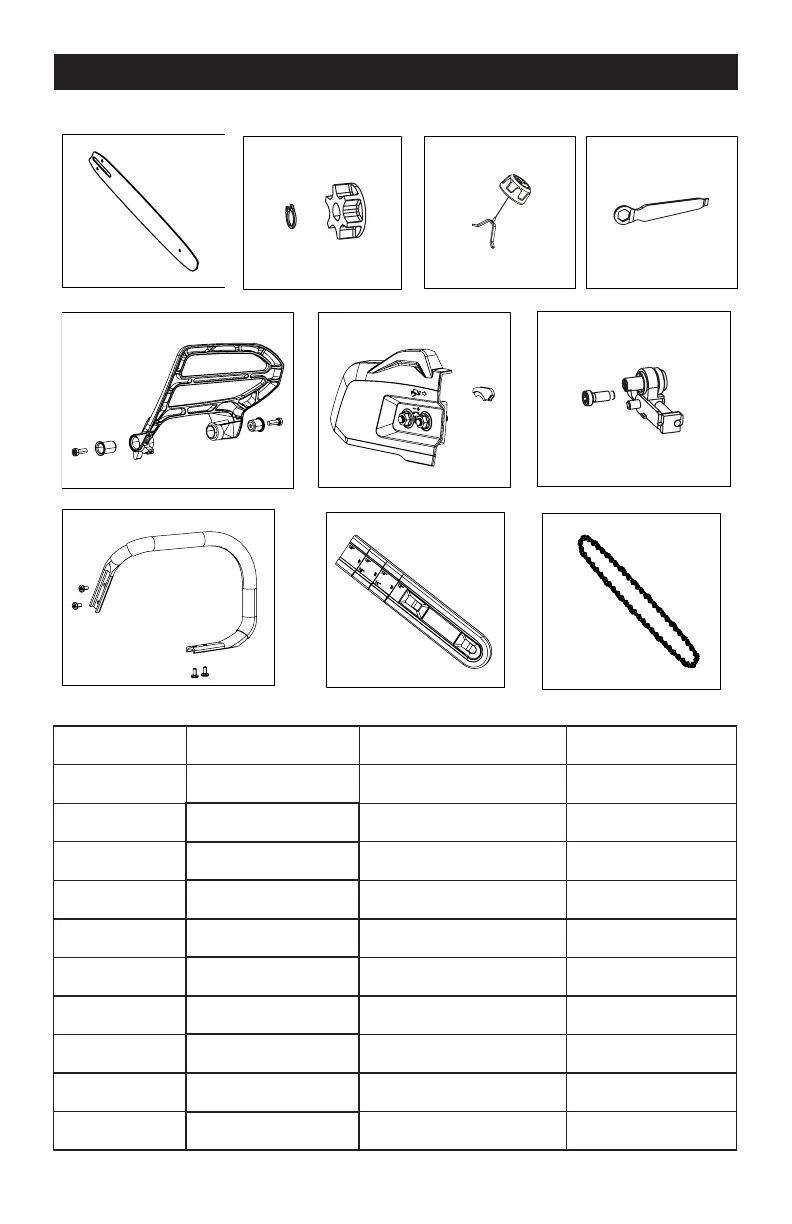

EXPLODED VIEW
ITEM NO. PART NO. DESCRIPTION QTY
1 R0201688-00 Bar 1
2 R0200049-00 Sprocket Kit 1
3 R0201689-00 Oil Cap Assembly 1
4 R0200016-00 Wrench 1
5 RB341041075 Front hand guard 1
6 R0201690-00 Side Cover Assembly 1
7 R0200881-00 Tension Block Assembly 1
8 R0201691-00 Auxiliary Handle Kit 1
9 RB341182031B Scabbard 1
10 R0201616-00 Chain 1
2
3
5
1
6 7
8
9 10
4
