Mastervolt MAGIC Series User Manual

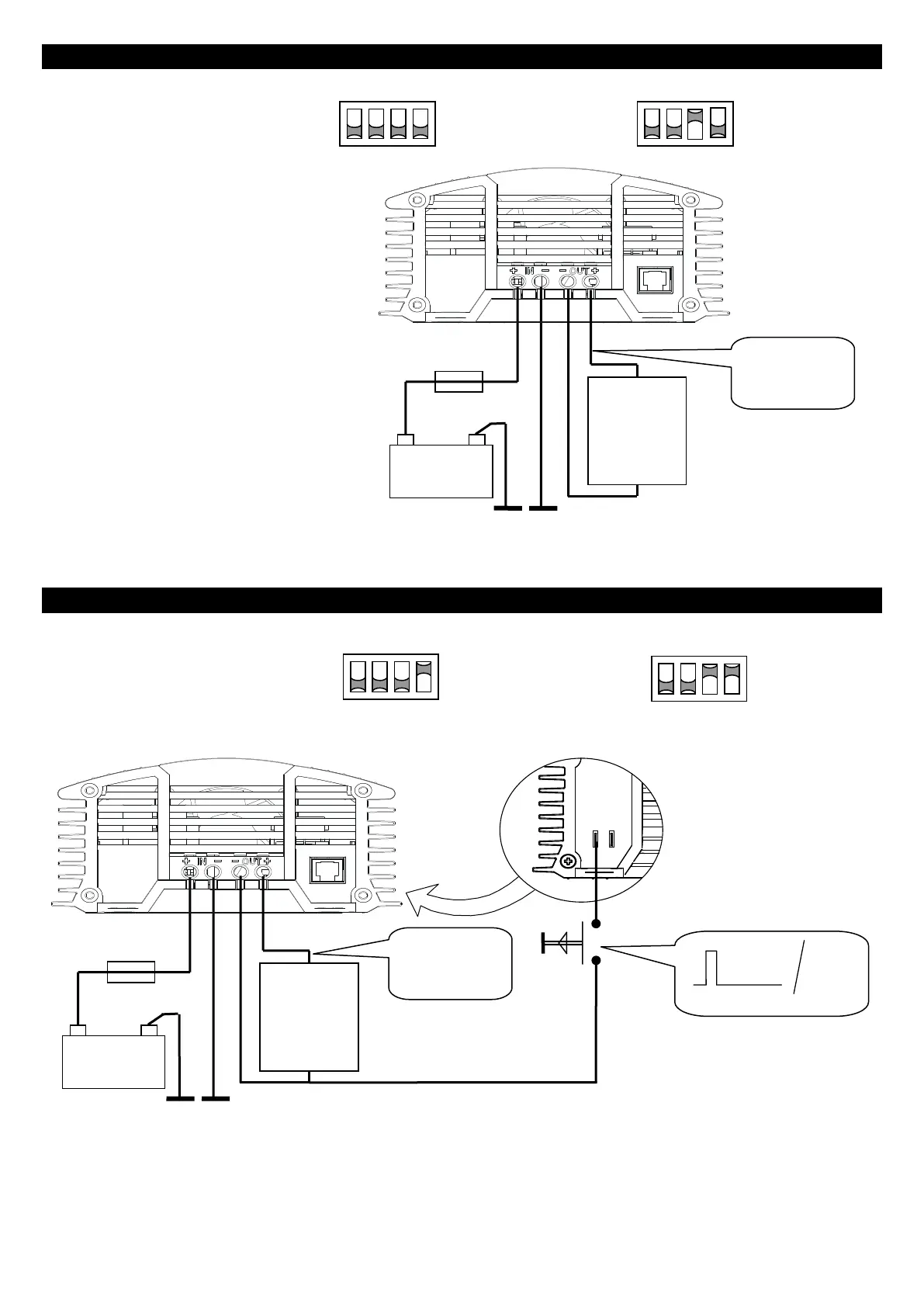

INSTALLATION 1A: STABILIZED VOLTAGE SUPPLY
INSTALLATION 1B: STABILIZED VOLTAGE SUPPLY WITH REMOTE SWITCH
U-out = 13.6V
- Stabilized DC-power supply / single stage
charger
- Gestabiliseerde DC-voeding / eentraps
lader
- Stabilisierte DC-Speisung / einstufiges
Ladegerät
- Alimentation stable CC / chargeur une
étape
- Cargador monofásico / alimentación
eléctrica de de CC estabilizada
- Alimentatore a corrente continua
stabilizzata da / caricatore a fase
singola
DIP switch setting:
DIP switch instelling:
Einstellung des DIP-Schalters:
Réglage cavalier:
Ajuste del conmutador DIP:
Impostazioni interruttore DIP:
1 2 3 4
ON
OFF
U-out = 27.2V
1 2 3 4
ON
OFF
+ –
12V/24V
Load
Belasting
Last
Charge
Carico
Carga
U-out=
0V / 13.6V or
0V / 27.2V
+ –
12V/24V
U-out=
0V / 13.6V or
0V / 27.2V
DIP switch setting:
DIP switch instelling:
Einstellung des DIP-Schalters:
Réglage cavalier:
Ajuste del conmutador DIP:
Impostazioni interruttore DIP:
- Stabilized DC power supply with remote switch function
- Gestabiliseerde DC-voeding met afstandsbedieningschakelaar
- Stabilisierte DC-Speisung mit Fernbedienungsschalter
- Alimentation stable CC avec fonction télécommande
- Alimentación de CC con función de conmutador a distancia.
- Alimentatore a corrente continua stabilizzata da con funzione di interruttore a distanza
ON
OFF
1 2 3 4
Remote switch function ON
U-out = 13.6V
ON
OFF
1 2 3 4
U-out = 27.2V
ON
OFF
Load
Belasting
Last
Charge
Carga
Carico
Rear side
Achterzijde
Rückseite
Face arrière
Parte posterior
Indietro
