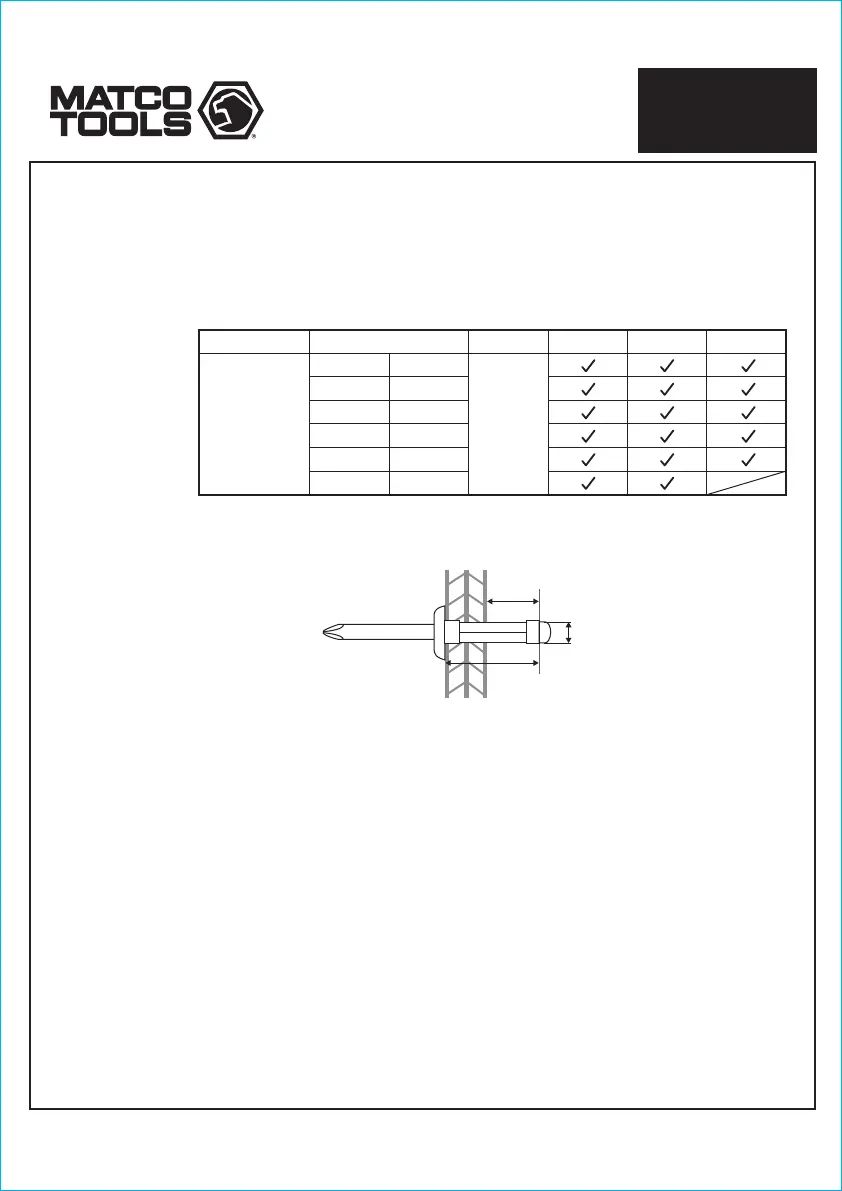

I. PRODUCT TECHNICAL DATA:
Set Includes:
Hex shank:
Rivet Type:
Weight:
Riveting Capability:
Working Torque:
Recommended RPM:
Temperature Range:
Requirements of Driving Tools:
Requirements of electric or
pneumatic driving tool:
1 Main Body, Assorted Metric or Imperial Nosepieces, 1 Hex Wrench,
1 User’s Manual, 1 Blow Mold Case
6.35mm (1/4")
Blind "Pop" Rivet
2.0 lbs.
Refer to section III. Operation Guide (Page 3)
Low speed, driver setting (<600 RPM)
-20~120°C (-4~248°F)
• Adjustable torque setting
• Chuck capacity of hex 6.35mm (1/4") shank
• Minimum 12V for aluminum and steel rivets up to 3/16"
• Minimum 14.4V for stainless steel rivets up to 3/16" and through 1/4" in
aluminum
• Minimum 16V+ for 7/32" in steel and stainless and 1/4" in steel (1/4" stainless
mandrel and body is not recommended and may overheat the tool)
• Chuck capacity of hex 6.35mm (1/4") shank
• With maximum torque > 190 in. lbs. for aluminum and steel rivets up to 3/16"
and 7/32" and 1/4" in aluminum
• With maximum torque > 330 in. lbs. for stainless steel rivets up to 3/16" and
7/32" and 1/4" in steel
Maximum 0.7" ( Y should be less than 1/2" in most cases, beyond 0.6" may cause rivet
mandrel to bottom out inside tool and jam)
Stroke Limit:
Y
Φ
L
Rivet Size Φ
Limit
Aluminum
Steel/Copper
Stainless Steel
Capacity / Limits
2.4mm
3.2mm
4.0mm
4.8mm
6.0mm
6.4mm
3/32"
1/8"
5/32"
3/16"
7/32"
1/4"
Y<1/2"
BR7
Page 2
BLIND RIVET
ADAPTER KIT
1802031-14
