Matco Tools MCL12S - Page 4

MCL12S 4 06/22/15

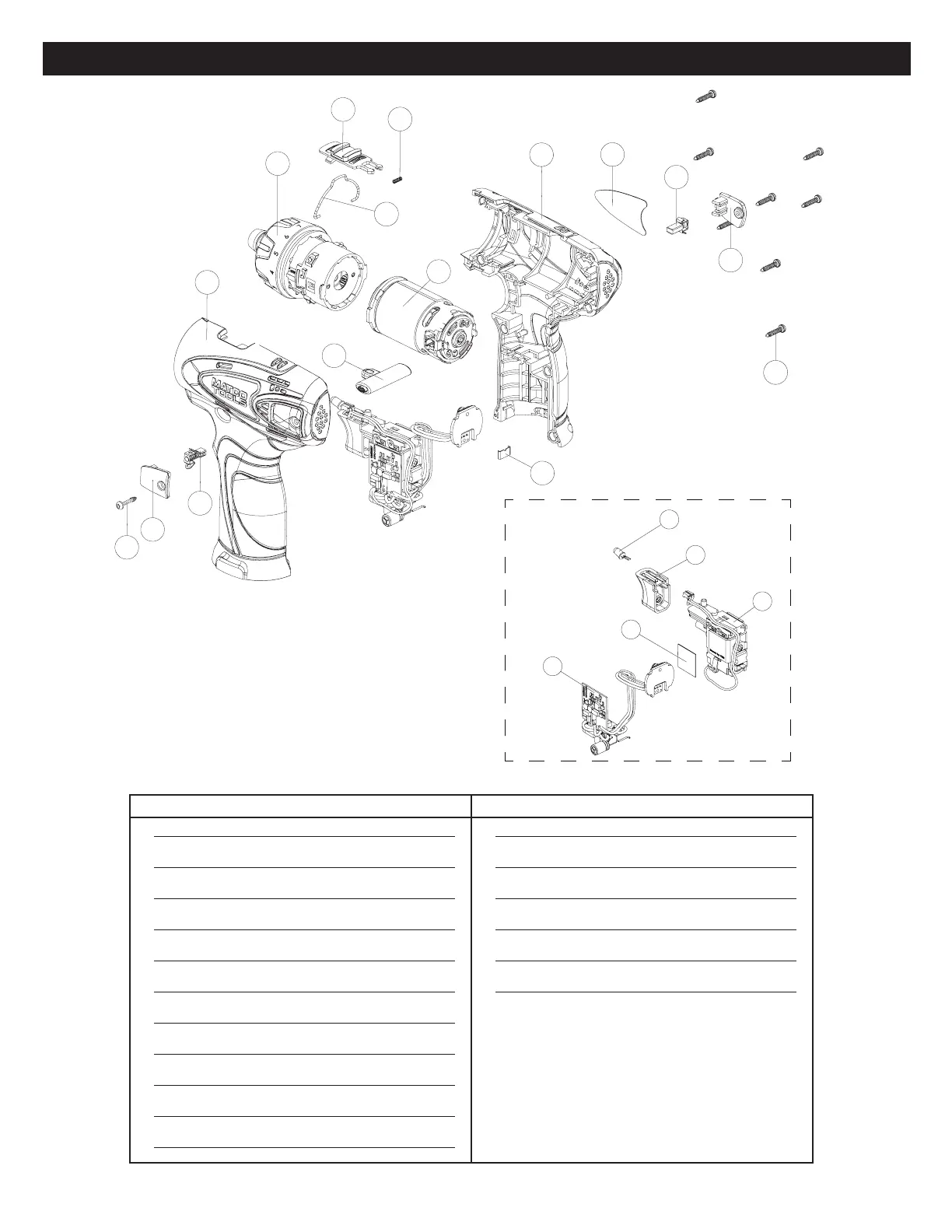

MCL12S 12V Li-ion 1/4" Screw Gun
Index # Part # Description Qty. Index # Part # Description Qty.
1 RS12S01 Gear Box Assembly 1
2 RS12DD04 Motor Assembly 1
3 RS12DD05 Speed Change Spring 1
4 RS12S04B High/Low Speed Knob-Red (Includes #5) 1
5 Knob Spring (Included with #4) 1
6 RS122ID09 Forward/Reverse Rod 1
7 RS1812DD14 LED 1
8 RS07508 Knob 1
9 RS12DD11 Switch Assembly 1
10 RS12DD12 Thermal Conductive Pad 1
11 RS12DD13 PCB Assembly 1
12 RS13212 Housing - L & R 1
13 RS108DD08 Carbon Brush 2
14 RS108IW14 Carbon Brush Panel 2
15 RS108DD12 Housing Clip 1
16 RS144IW020 Screw 9
17 RS42417 Housing Label - R 1
1
2
3
4
5
6
12
13
14
15
16
14
13
12
16
17
7
8
9
10
11
