MCL2012BIW, - G, - O 4 rev 10/10/19
MCL2012BIW 20V
+

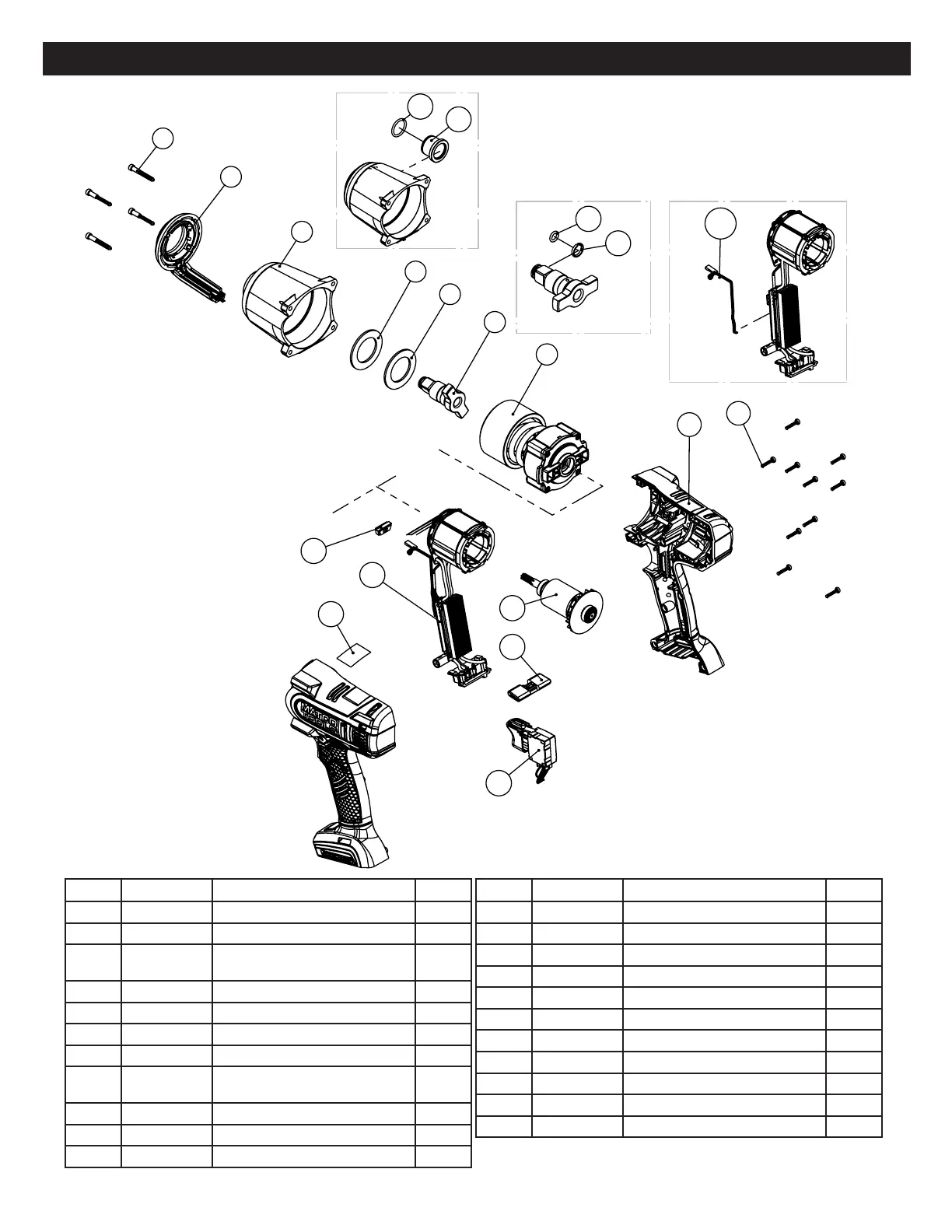

1/2" Brushless Impact Wrench
Ref No. Part No. Description QTY
1 RS201216 Front Cover Screw 4
2 RS201241 LED Holder 1
3 RS201242 1/2" Front Cover Assembly
[incudes 3-1 and 3-2]
1
3-1 O-Ring [incl w/ 3] 1
3-2 Bushing [incl w/ 3] 1
4 RS201204 Rubber Washer 1
5 RS201207 Metal Washer 1
6 RS201208 1/2" Anvil Assembly
[includes 6-1 and 6-2]
1
6-1 RS201250 Anvil O-Ring [incl w/ 6] 1
6-2 RS201251 1/2" Retaining Ring [incl w/ 6] 1
7 RS201252 Rear Impact Assembly 1
Ref No. Part No. Description QTY
8 RS201259B Housing - L & R Assembly [Burgundy] 1
RS201259G Housing - L & R Assembly [Green] 1
RS201259O Housing - L & R Assembly [Orange] 1
9 RS201260 Housing Screw (each) 10
10 RS201258 Rotator Assembly 1
11 RS201261 Forward/Reverse Rod 1
12 RS201262 Main Switch Assembly 1
13 RS201257 Stator + PCB Assembly [includes 13-1] 1
13-1 LED Wire [incl w/ 13] 1
14 RS201264 LED Holder Fixture 1
15 RS201263 Product/Warning Label 1
1
2
4
5
6
7
13
10
8
9
11
12
15
3
14
3-1
3-2
6-1
6-2
13-1
