5.6.3.1 Windings parameters

This is an example, reality may differ.

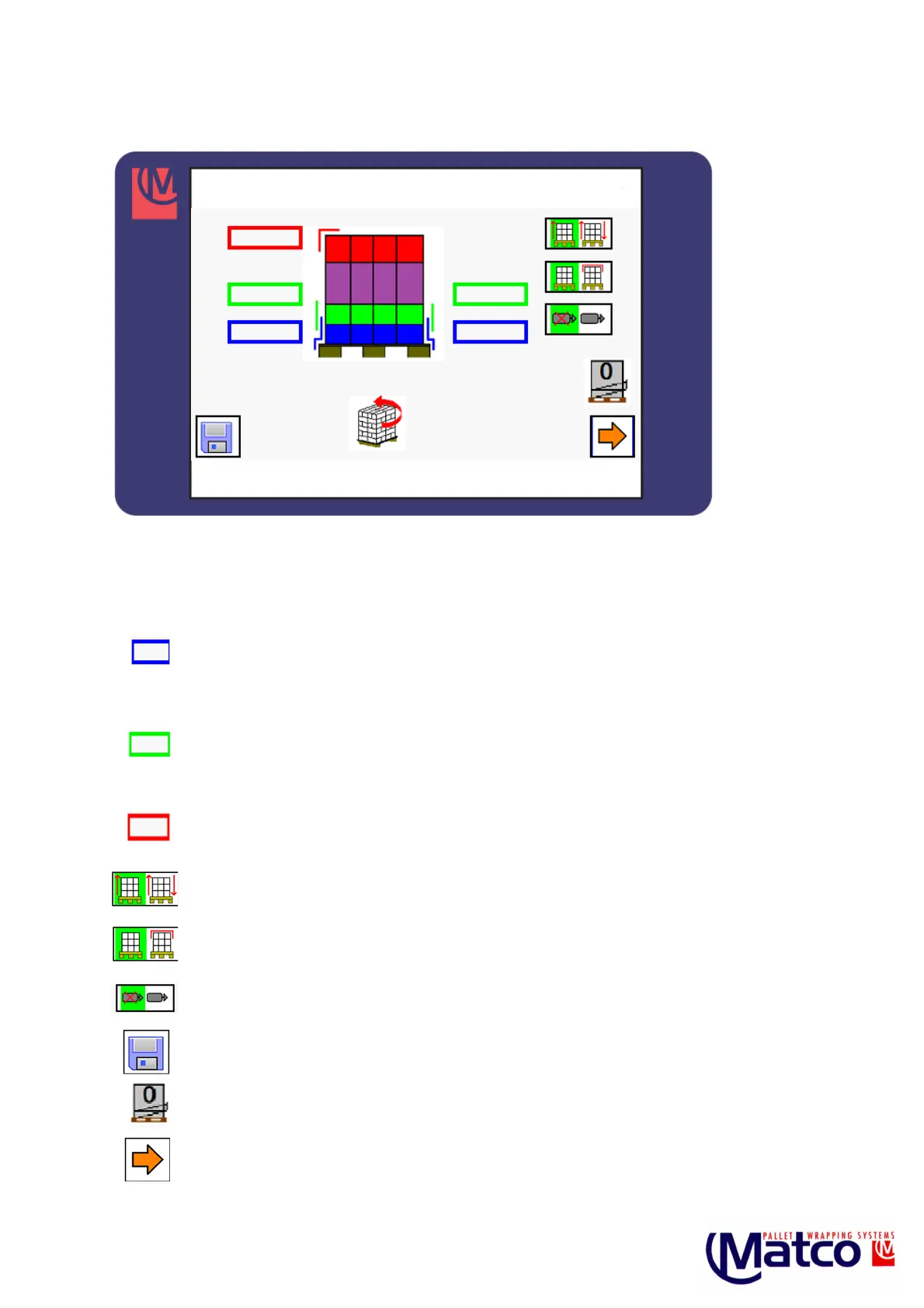

This is the first screen with adjustable parameters per program. This screen includes the following

functions:

Here you enter how many windings you want to have at the und

erside of a pallet. With

these extra windings the load can be attached to the pallet tighter. The input field left of

the pallet is for the start of the cycle and at the right for the end. The colour of the input

field refers to the part of the pallet to wind.

Here you indicate how many base windings are required on the pallet. These windings

ensure that the base windings are tightly connected with the rest of the pallet. The input

field left of the pallet is for the start of the cycle and at the right for the end. The colour

of the input field refers to the part of the pallet to wind.

Here you indicate how many base windings are required at the top of the pallet. These

windings provide extra stability to the top layer of the pallet. The colour of the input field

refers to the part of the pallet to wind.

This button is the option button between single and spiral winding. The green illuminated

selection is active.

This button is the option button between winding with or without top layer. The gr

een

illuminated selection is active.

This button is the selection button for using or not using the foil puncturer. The green

illuminated selection is active.

This button is for saving the parameters. If it is operated, the changes are filed in the

right program and you return to the ‘’Program parameters’’ menu. (See paragraph 5.6.3)

This is a graphic representation to visualise in which program the changes are saved.

This button is to continue to the next parameter menu.

(See paragraph 5.6.3.2)
